| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | Di-XG3.9, Di-XG4.8 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Plywood box |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000 sqm per month |
| Type: | Indoor Rental LED Screen | Pixel Pitch: | P3.91mm, P4.81mm |
|---|---|---|---|
| Cabinet Size: | 500x500 | Service: | Front Service |
| Weight: | 7.5kg | Module Size: | 250x250mm |
| Highlight: | Indoor Rental LED Panel 3840Hz,Indoor Rental LED Panel IP43 |
||

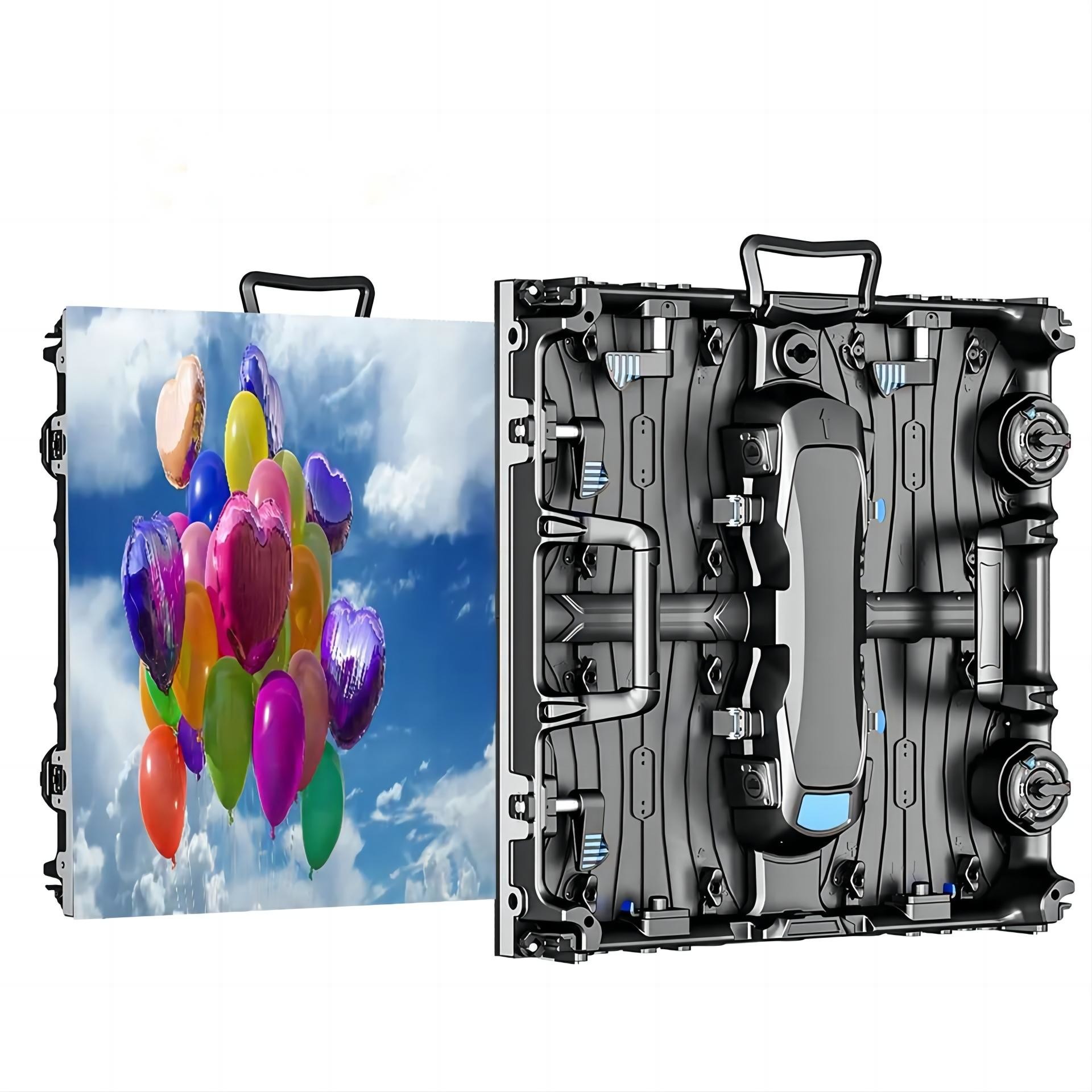

Indoor P3.91mm Stage Rental LED Display Front Magnetic Service 3840Hz Refresh Rate
Quick detail Of Indoor Rental LED Screen
1, Pixel Pitch: 2.604mm. 2.976mm, 3.91mm,4.81mm
2, Quality and High Contrast SMD LEDs, Wide viewing angle: 160°/ 160°.
3, Greyscale: 16bits, 22bits with NOVA Star A8S
4, Cabinet size: 500x500mm Die Cast Aluminum
5, Recommended Viewing Distance: 2-4m.
6, Cabinet Material: Die Cast Aluminum Cabinet, 7.5kg Weight
7, Refresh Rate: 3840-7680Hz
8, Ingress Rate: IP43 Indoor, IP68 Outdoor
9,Quality Certificate:CE, RoHS,FCC, ETL
10,Brightness:>1000cd/sqm
11, Curve Installation: Yes, Concave and Convex Available
12, Corner Protector: Yes, Semi-auto Corner Protector
Parameters
| Model | Di-XG2.6 | Di-XG2.9 | Di-XG3.9 | Di-XG4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 |
| Modules Per Cabinet (W x H) | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 192 | 168 x 168 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 7.5kg | 7.5kg | 7.5kg | 7.5kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 220 W /Sqm | 220 W /Sqm | 220 W /Sqm | 220 W /Sqm |
| Max Power Consumption | 600 W /Sqm | 600 W /Sqm | 600 W /Sqm | 600 W /Sqm |
| Brightness | >1,000 nits | >1,000 nits | >1,000 nits | >1,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |

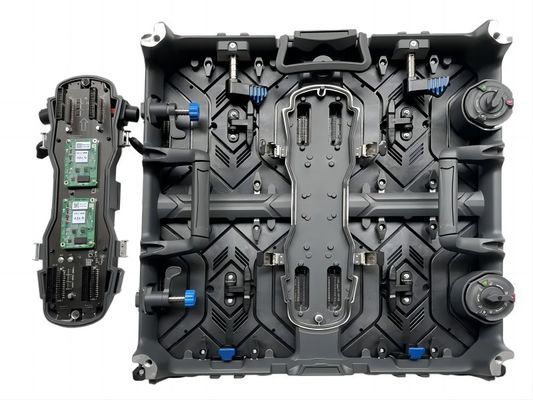

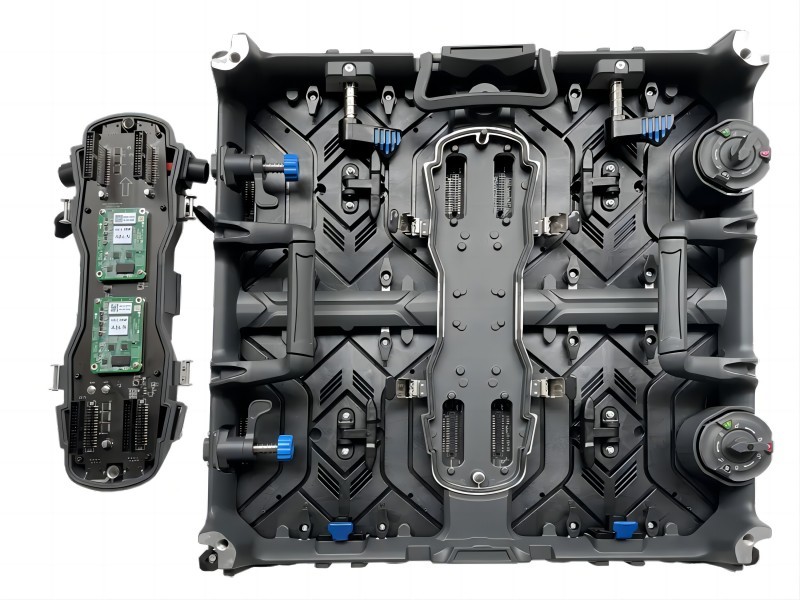

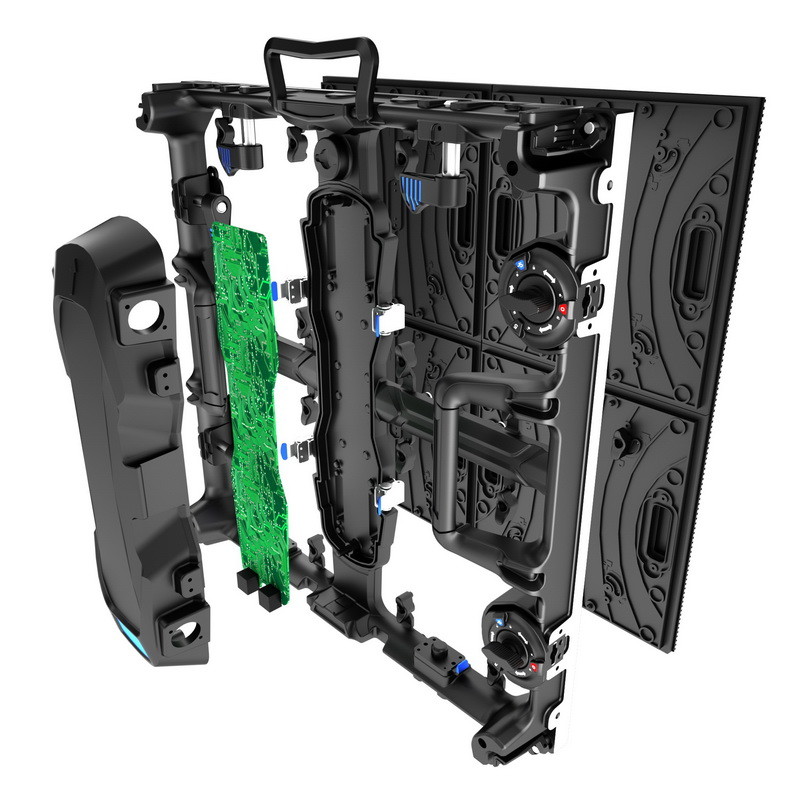

Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request

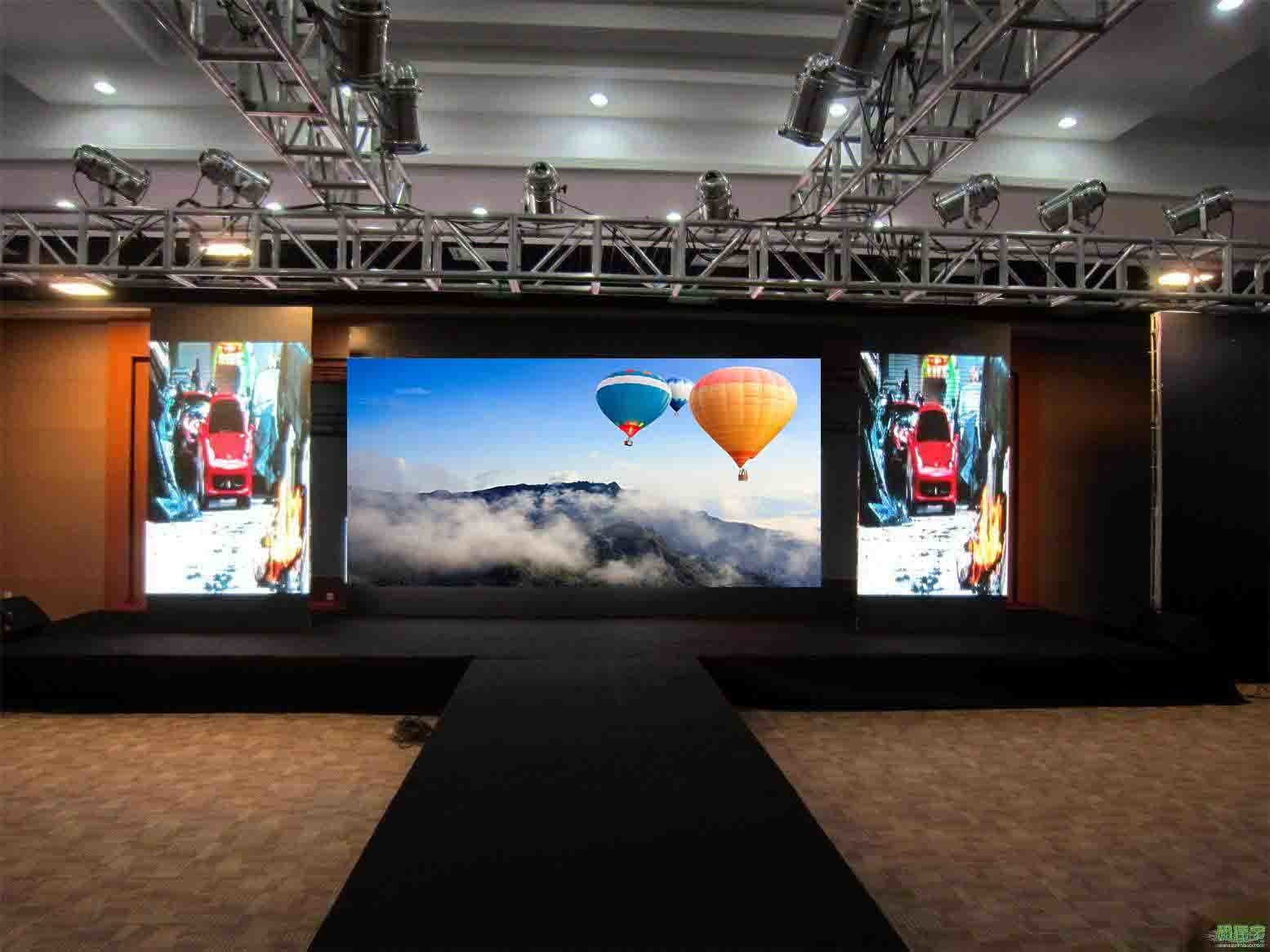

Feature Of Indoor Rental LED Video Wall
Many people do not know that the purpose and function of stage rental displays are different. Compared with traditional LED displays, they need to be configured. The next LCF will use the difference between the LED stage rental screen and the traditional display example.
1. Different models selected
The stage rental screen has high requirements for stage display, so the requirements for screen playback effect should be clearer. Therefore, the general indoor environment adopts the high-definition stage display of P3P4 model, and the small pitch P2.5P2 is used in poor conditions P7P6 and other models are used outdoors. For traditional indoor and outdoor displays, due to long viewing distance or low display requirements, P6P5 is usually used indoors, while P10 is most often used outdoors, followed by P16. The interior is a surface sticker. Plug in lighting is usually used outdoors, but sometimes the current surface mounted products are used in the stage rental screen market, and a variety of box type products are introduced, including all major models in the market. P3P4P4.8P6, etc
2. How to install
Many people in the industry know that stage rental screens are easy to remove and install. For example, at the end of a concert, you can break up the concert and recreate it at another stage. The conventional indoor LED display is usually a fixed installation method, which is not easy to move after the fixed installation position. Therefore, it would be impossible to rebuild in other places after disassembly.
3. Box difference
Generally, traditional outdoor LED displays are waterproof and heavy in structure. The interior is also a simple box, which is used for LED stage rental display. It is usually made of die-casting aluminum box, with light structure, high stability and more convenient use. The most important thing is to install at any time. Removable, suitable for concerts, stage and other major performances. The above three points are the biggest differences between the existing display and the screen leased at the current stage. There are also other differences in the quotation, size and configuration of the environment.
