Name: P2.6mm P2.9mm Outdoor Rental LED Display Front Serice Support Curve Shape
Brand: Conwin Optoelectronic Co., Ltd.
SKU: D-XG2.6, D-XG2.9
Price: 420.00 USD
Availability: InStock

P2.6mm P2.9mm Outdoor Rental LED Display Front Serice Support Curve Shape

Basic Information

Place of Origin:	China
Brand Name:	Conwin LED Display
Certification:	FCC, CE, ROHS
Model Number:	D-XG2.6, D-XG2.9

Minimum Order Quantity:	1sqm
Price:	Negotiable
Packaging Details:	Plywood box/Flight Case
Delivery Time:	15 working days
Payment Terms:	T/T, , L/C
Supply Ability:	1000 sqm per month

Contact Now

Type:

Outdoor Rental LED Screen

Pixel Pitch:

P2.604mm, P2.976mm

Cabinet Size:

500x500

Service:

Front / Rear Service

Weight:

8kg

Module Size:

250x250mm

Highlight:

Indoor stage rental led screen

P2.6mm stage rental led screen

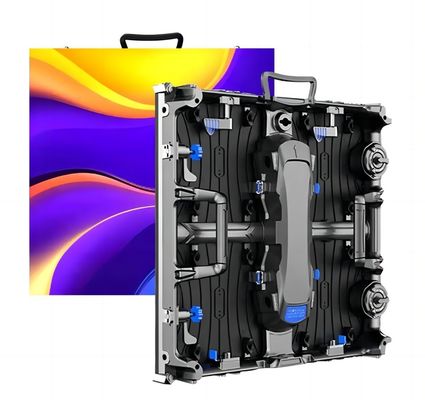

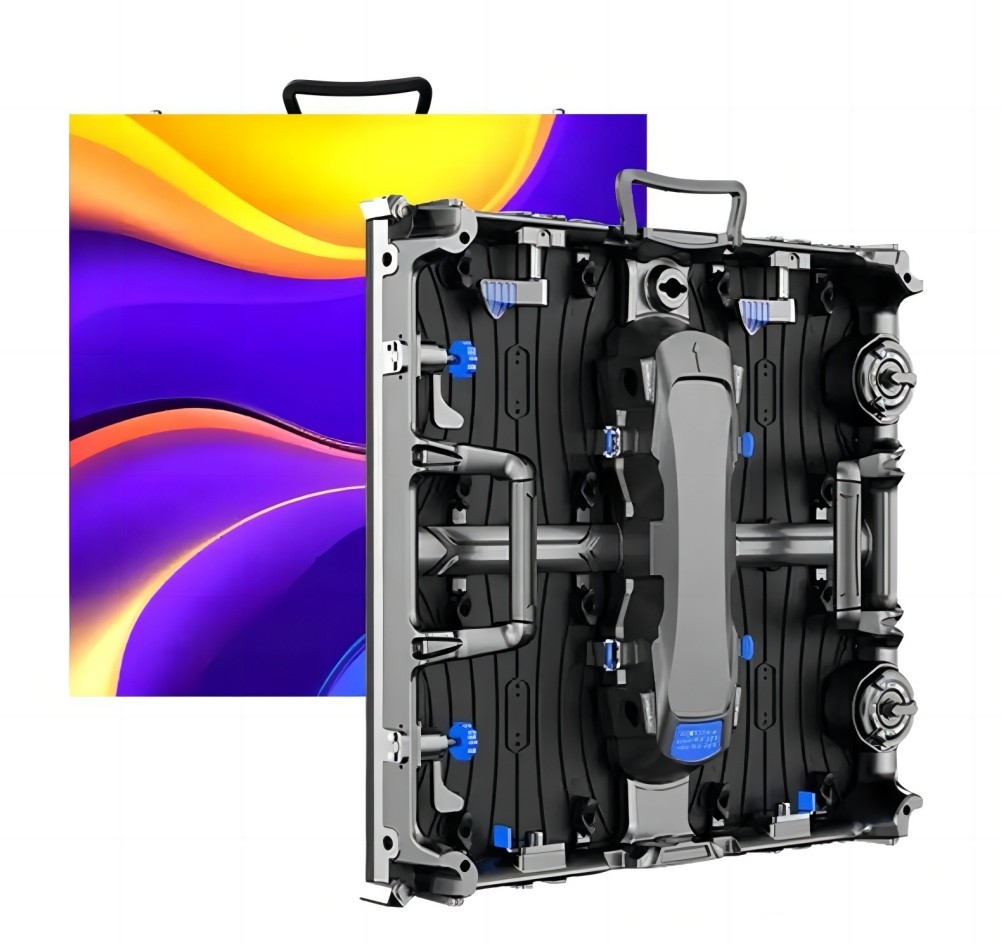

P2.6mm P2.9mm Outdoor Rental LED Display Front Serice Support Curve Shape

Die Cast Aluminum Light weight Structure

Through thoughtful engineering and craftsmanship, the D-XG series features a thin, lightweight, high-strength die-casting in a modular design to fit a wide range of simple or complex applications. The unique structural design of Outdoor Rental has pioneered, patented and perfected the use of die-casting in the construction of LED video wall displays.

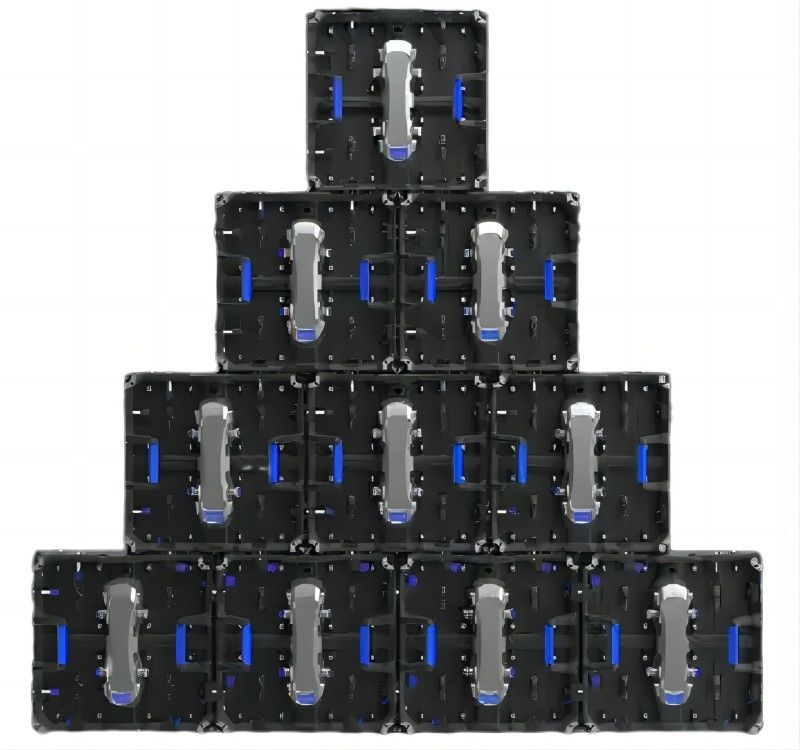

Seamless Screen Splicing and Support ±15 degree installation

Arc shaped panel edge, seamless splicing and no angle acquirement,perfect arc-bending panel technology. Double-side 15 degree oblique angle design,support ±15 degree assembly.

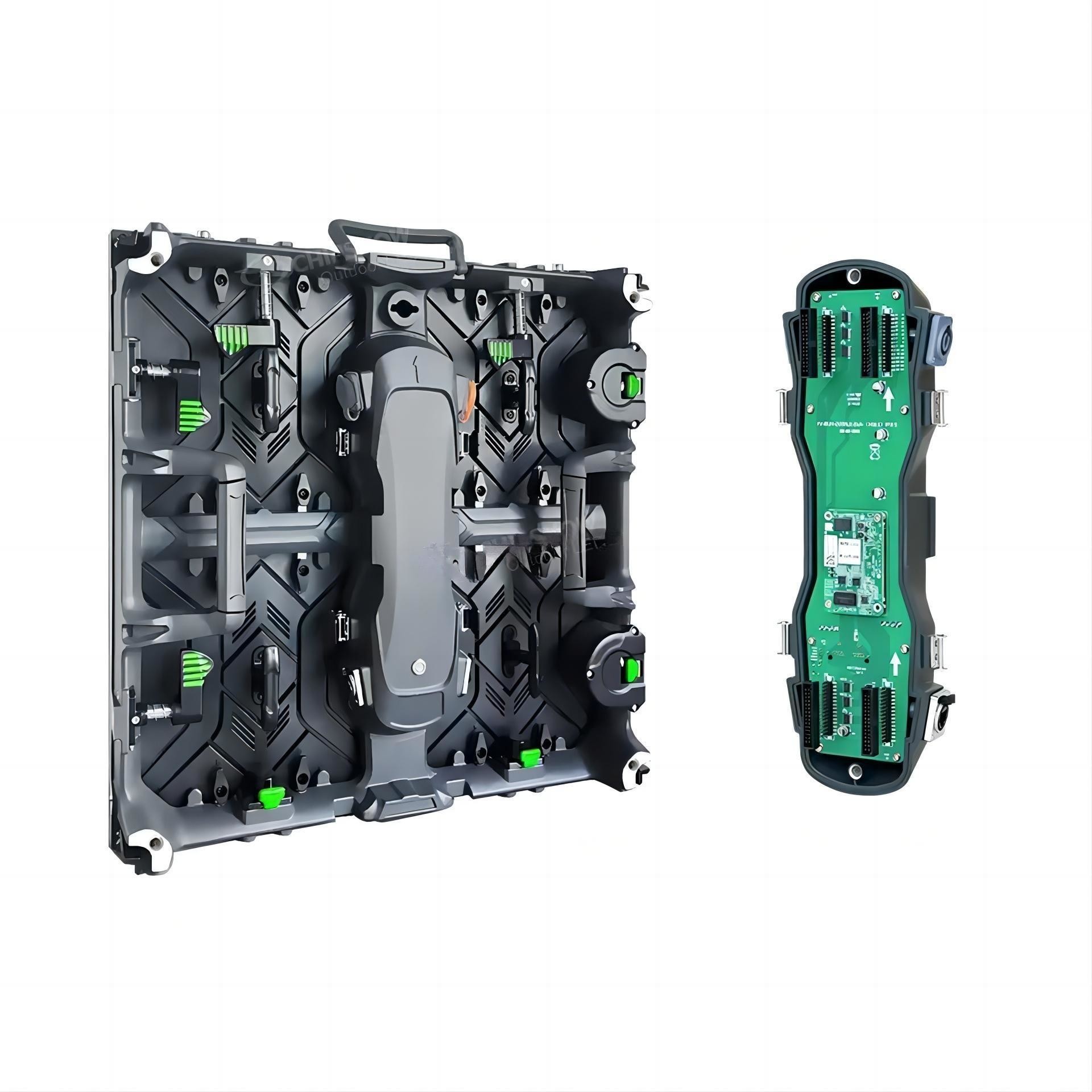

IP65 Waterproof and Front Magnetic Service

D-XHSeries accommodates the fast-paced nature of rental, staging and flexible installations.With special modular design, the module are attached to the cabinet via magnets yet still outdoor IP65 waterproof

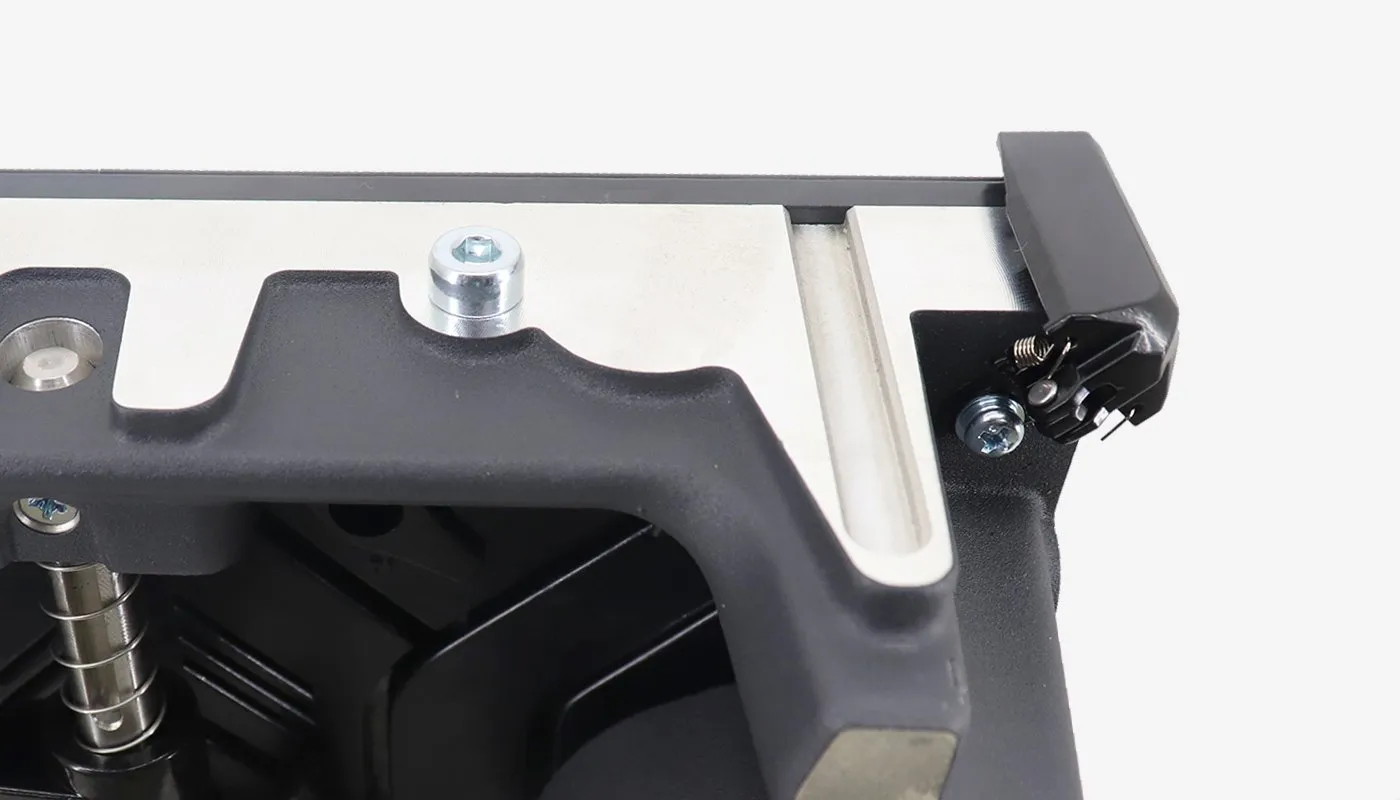

Fast Brake Lock

Fast, Flexible installation and maintence

Glory Series accommodates the fast-paced nature of rental, staging and flexible installations.With modular design, free-standing or hanging applications, supporting independent failed module replacement which is quite fast and cost saving for repair and maintence

Application

Parameters


			Model
			D-XG2.6
			D-XG2.9
			D-XG3.9
			D-XG4.8


			Pixel Pitch
			2.604mm
			2.976mm
			3.91mm
			4.81mm


			Pixel Configuration
			SMD1415
			SMD1415
			SMD1921
			SMD1921


			Pixel Density
			147,456 pixels/m2
			112,896 pixels/m2
			65,536 pixels/m2
			43,264 pixels/m2


			Module Dimensions (W x H) (mm)
			250 x 250
			250 x 250
			250 x 250
			250 x 250


			Panel Dimensions (mm)
			500 x 500 x 80
			500 x 500 x 80
			500 x 500 x 80
			500 x 500 x 80


			Modules Per Cabinet (W x H)
			2 x 2
			2 x 2
			2 x 2
			2 x 2


			Module Resolution
			96 x 96
			84 x 84
			64 x 64
			52 x 52


			Cabinet Resolution
			192 x 192
			168 x 168
			128 x 128
			104 x 104


			Panel Material
			Die Cast Aluminum
			Die Cast Aluminum
			Die Cast Aluminum
			Die Cast Aluminum


			Weight per Cabinet
			8kg
			8kg
			8kg
			8kg


			Colours
			281 trillion
			281 trillion
			281 trillion
			281 trillion


			Contrast Ratio
			5,000 : 1
			5,000 : 1
			5,000 : 1
			5,000 : 1


			Average Power Consumption
			280 W /Sqm
			260 W /Sqm
			250 W /Sqm
			220 W /Sqm


			Max Power Consumption
			680 W /Sqm
			650 W /Sqm
			620 W /Sqm
			600 W /Sqm


			Brightness
			>5,000 nits
			>5,000 nits
			>5,000 nits
			>5,000 nits


			Refresh Rate
			>3,840Hz
			>3,840Hz
			>3,840 Hz
			>3,840 Hz


			Vertical Viewing Angle
			160°
			160°
			160°
			160°


			Horizontal Viewing Angle
			160°
			160°
			160°
			160°


			Expected Lifetime
			100,000 Hrs
			100,000 Hrs
			100,000 Hrs
			100,000 Hrs


			Servicing
			Front/Rear
			Front/Rear
			Front/Rear
			Front/Rear


			IP Rating (Front/Rear)
			IP 65
			IP 65
			IP 65
			IP 65


			Operating Temp/Humidity
			-20ºC - 50ºC / 10% - 90%
			-20ºC - 50ºC / 10% - 90%
			-20ºC - 50ºC / 10% - 90%
			-20ºC - 50ºC / 10% - 90%


			Storage Temp/Humidity
			-20ºC - 50ºC / 10% - 90%
			-20ºC - 50ºC / 10% - 90%
			-20ºC - 50ºC / 10% - 90%
			-20ºC - 50ºC / 10% - 90%


Tag:

rental led display screen

stage screen rental

Multipurpose Outdoor Rental LED Display

Conwin Optoelectronic Co., Ltd.

Room 313-315, Building A, Sanlian Industrial Zone, Shiyan Street ,Shenzhen, China

86-0755-82599892

info@conwinleddisplay.com

Model	D-XG2.6	D-XG2.9	D-XG3.9	D-XG4.8
Pixel Pitch	2.604mm	2.976mm	3.91mm	4.81mm
Pixel Configuration	SMD1415	SMD1415	SMD1921	SMD1921
Pixel Density	147,456 pixels/m2	112,896 pixels/m2	65,536 pixels/m2	43,264 pixels/m2
Module Dimensions (W x H) (mm)	250 x 250	250 x 250	250 x 250	250 x 250
Panel Dimensions (mm)	500 x 500 x 80	500 x 500 x 80	500 x 500 x 80	500 x 500 x 80
Modules Per Cabinet (W x H)	2 x 2	2 x 2	2 x 2	2 x 2
Module Resolution	96 x 96	84 x 84	64 x 64	52 x 52
Cabinet Resolution	192 x 192	168 x 168	128 x 128	104 x 104
Panel Material	Die Cast Aluminum	Die Cast Aluminum	Die Cast Aluminum	Die Cast Aluminum
Weight per Cabinet	8kg	8kg	8kg	8kg
Colours	281 trillion	281 trillion	281 trillion	281 trillion
Contrast Ratio	5,000 : 1	5,000 : 1	5,000 : 1	5,000 : 1
Average Power Consumption	280 W /Sqm	260 W /Sqm	250 W /Sqm	220 W /Sqm
Max Power Consumption	680 W /Sqm	650 W /Sqm	620 W /Sqm	600 W /Sqm
Brightness	>5,000 nits	>5,000 nits	>5,000 nits	>5,000 nits
Refresh Rate	>3,840Hz	>3,840Hz	>3,840 Hz	>3,840 Hz
Vertical Viewing Angle	160°	160°	160°	160°
Horizontal Viewing Angle	160°	160°	160°	160°
Expected Lifetime	100,000 Hrs	100,000 Hrs	100,000 Hrs	100,000 Hrs
Servicing	Front/Rear	Front/Rear	Front/Rear	Front/Rear
IP Rating (Front/Rear)	IP 65	IP 65	IP 65	IP 65
Operating Temp/Humidity	-20ºC - 50ºC / 10% - 90%	-20ºC - 50ºC / 10% - 90%	-20ºC - 50ºC / 10% - 90%	-20ºC - 50ºC / 10% - 90%
Storage Temp/Humidity	-20ºC - 50ºC / 10% - 90%	-20ºC - 50ºC / 10% - 90%	-20ºC - 50ºC / 10% - 90%	-20ºC - 50ºC / 10% - 90%
