| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | D-LU4.8 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Plywood box/Flight case |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 sqm per month |
| Type: | Outdoor Rental LED Screen | Pixel Pitch: | P4.81mm |
|---|---|---|---|
| Cabinet Size: | 500x1000 | Service: | Front/Rear Service |
| Weight: | 15kg | Module Size: | 250x250mm |
| Highlight: | COB Outdoor Rental LED Display,CE Outdoor Rental LED Display,ROHS outdoor rental led panel |
||
Exterior Stage Outdoor Rental Led Display Screen Panel 500*1000mm P4.8

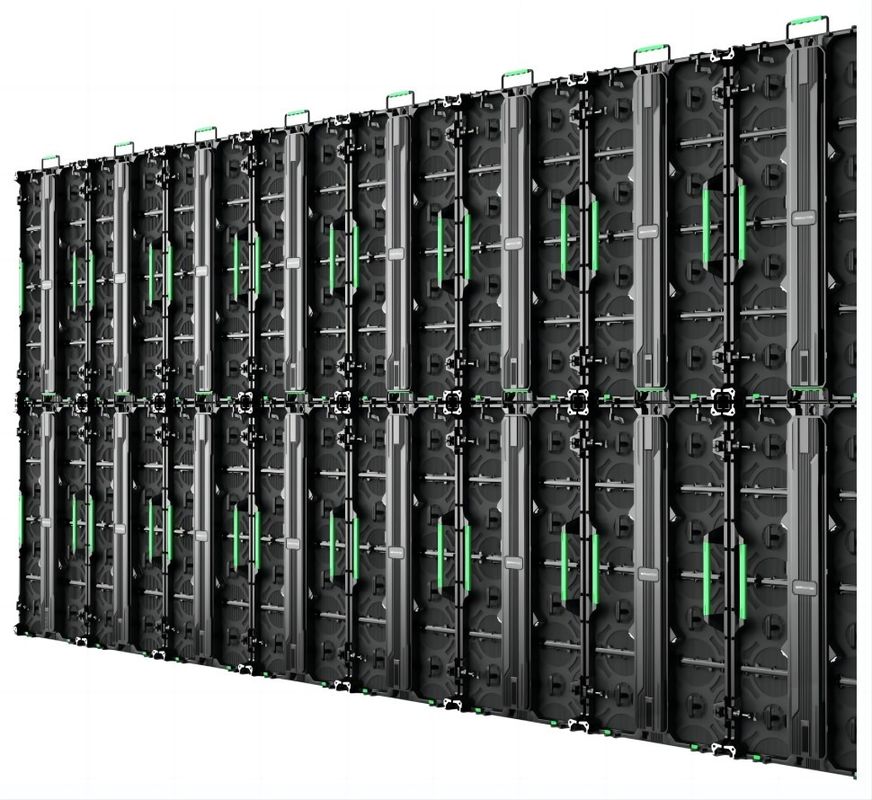

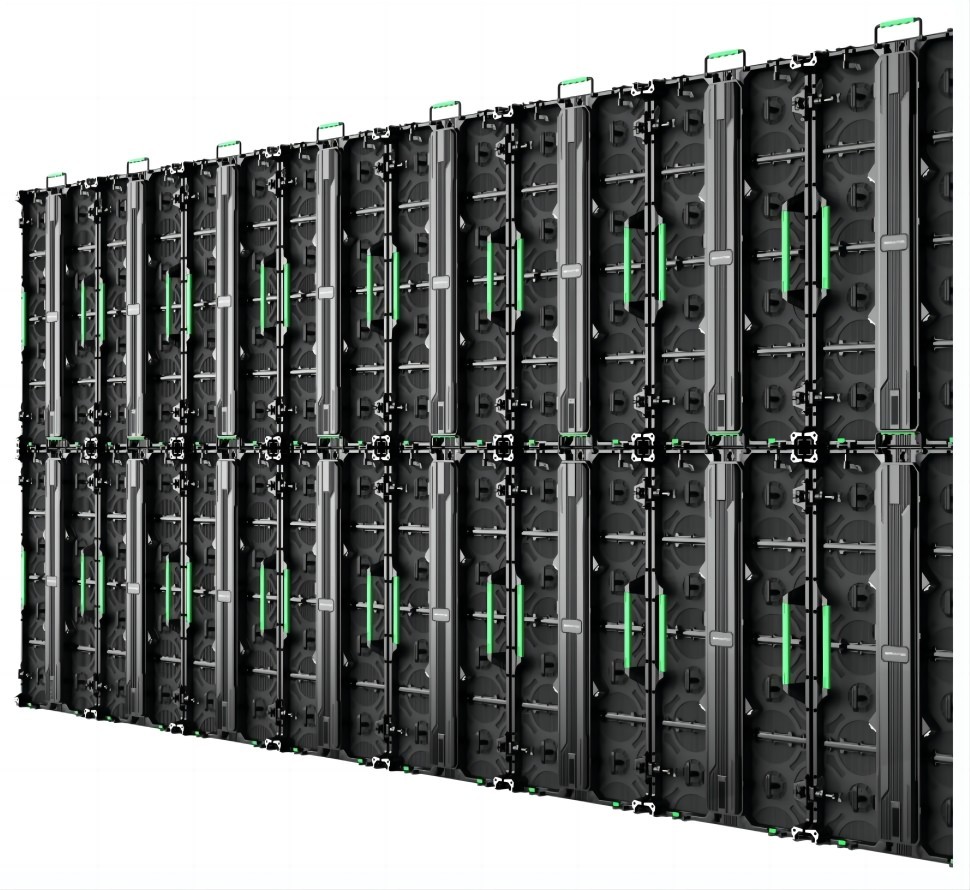

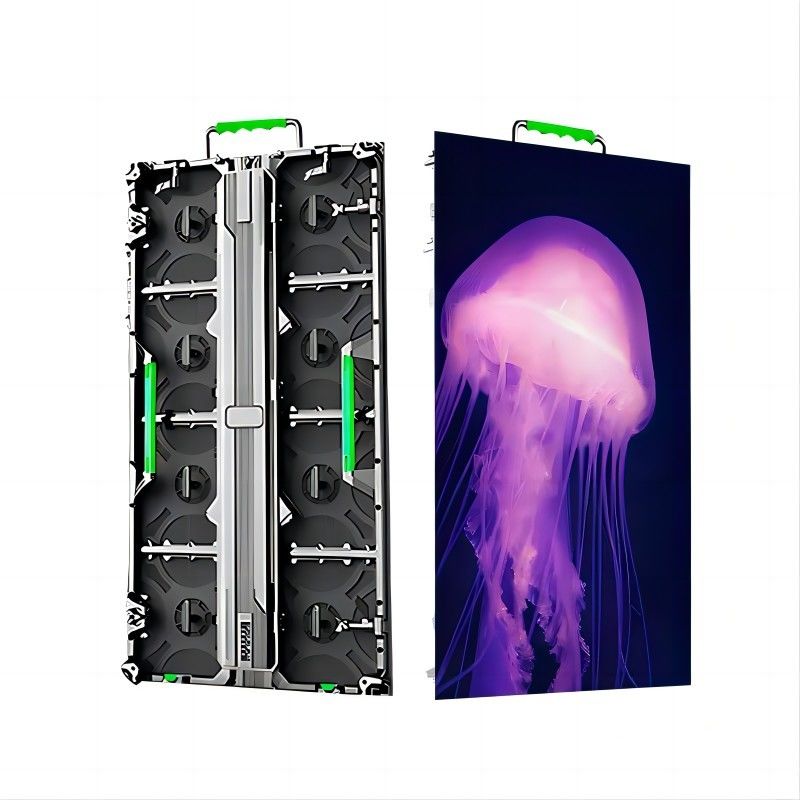

Feature Of Outdoor 500x1000 Rental LED Screen
- Ultra Lightweight , 500X1000mm die-casting aluminum cabinet with 15kg
- Support front service with magnet, Rear service with screws is also avaiable.
- LED corner protector making LED lamps anti-collison

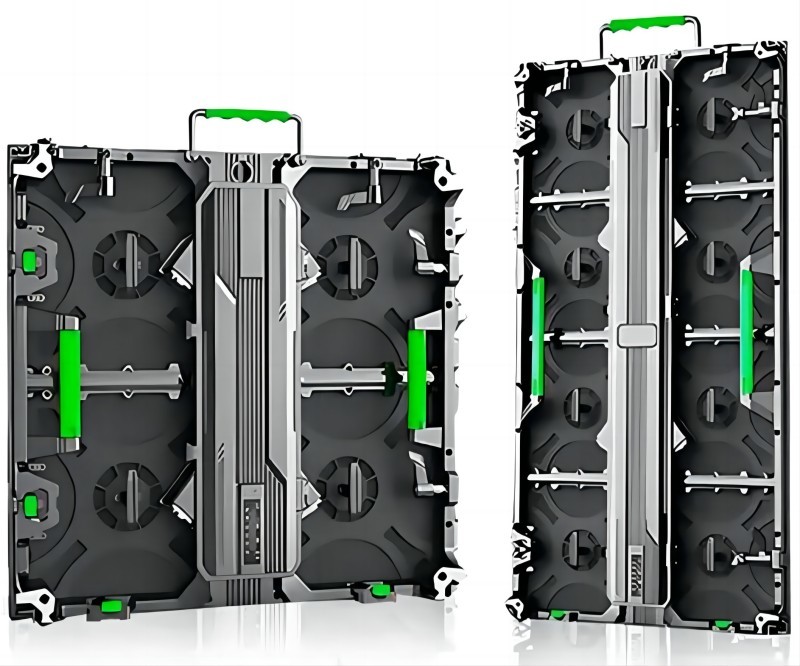

- With fast lock design, 500x500mm and 500x1000mm cabinet can be easily spclied up and down, and mixed use.
- Reinforced connection design, all connection part is strong and reliable for all kinds of application.
- High precision, with high end CNC machine, the allowance is as small as within 0.1mm, which keeps the screen in perfect flat surface and create smooth image performance.
- Packing, with strong and high end flight cases, 8 in 1 or 6 in 1 as customer demand.
Parameters:
| Model | D-LT2.6 | D-LT2.9 | D-LT3.9 | D-LT4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 |
| Modules Per Cabinet (W x H) | 2 x 4 | 2 x 4 | 2 x 4 | 2 x 4 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 384 | 168 x 336 | 128 x 256 | 104 x 208 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 15kg | 15kg | 15kg | 15kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 280 W /Sqm | 260 W /Sqm | 250 W /Sqm | 220 W /Sqm |
| Max Power Consumption | 680 W /Sqm | 650 W /Sqm | 620 W /Sqm | 600 W /Sqm |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
- What are the benefits of LED screens?
LED screens offer high brightness, wide angles, energy efficiency, and long lifespan,suitable for indoor and outdoor uses.
- Can LED screens be customized in size?
Yes, we provide tailored LED screen solutions to match your requirements.
- How do I choose the right LED screen?
Consider factors like usage, distance, lighting, and screen quality when selecting.
- How is an LED screen maintained?
Regularly clean the surface to prevent dust buildup and avoid contact with water or chemicals.
- Can LED screens be used outdoors?
Yes, we offer waterproof screens suitable for outdoor advertising and events.
