| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | D-HK2.6 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Plywood box/Flight case |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000 sqm per month |
| Type: | Outdoor Rental LED Screen | Pixel Pitch: | P2.604mm |
|---|---|---|---|
| Cabinet Size: | 500x1000 | Service: | Front/Rear Service |
| Weight: | 15kg | Module Size: | 250x500mm |
| Highlight: | P3.91 Stage Rental LED Display,cableless Stage Rental LED Display,Fast Lock stage rental led screen |
||
CE, ROHS, FCC Certified Outdoor 500x1000mm Rental LED Screen With 3840Hz Reresh Rate

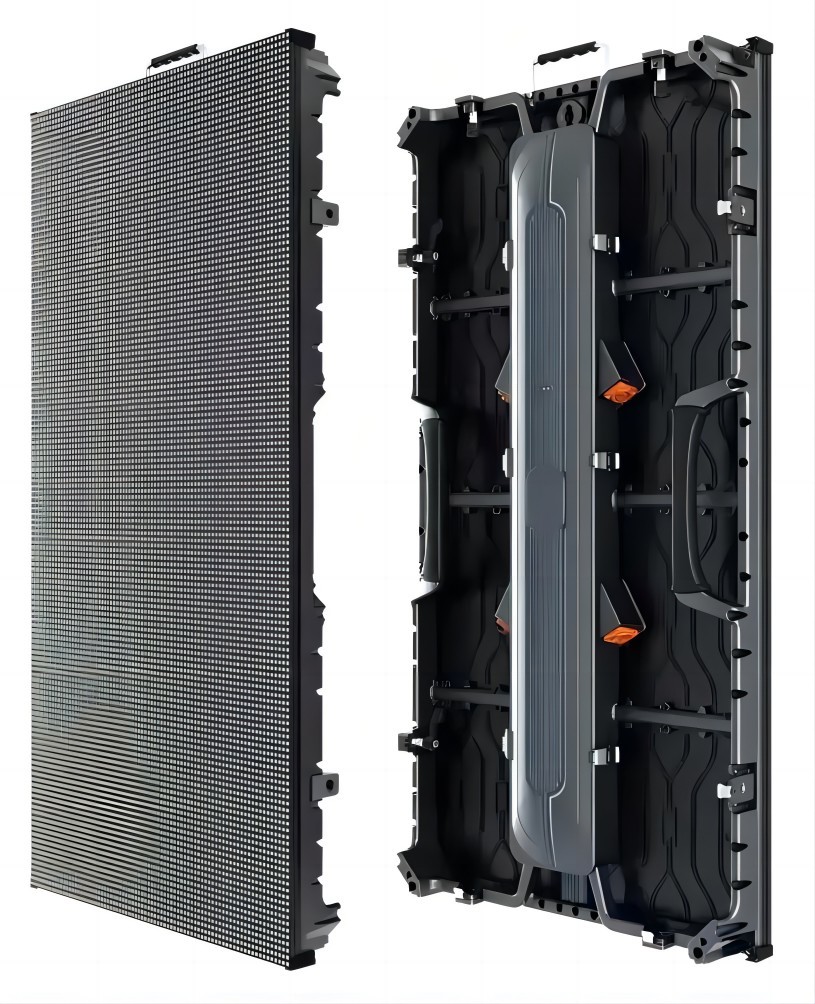

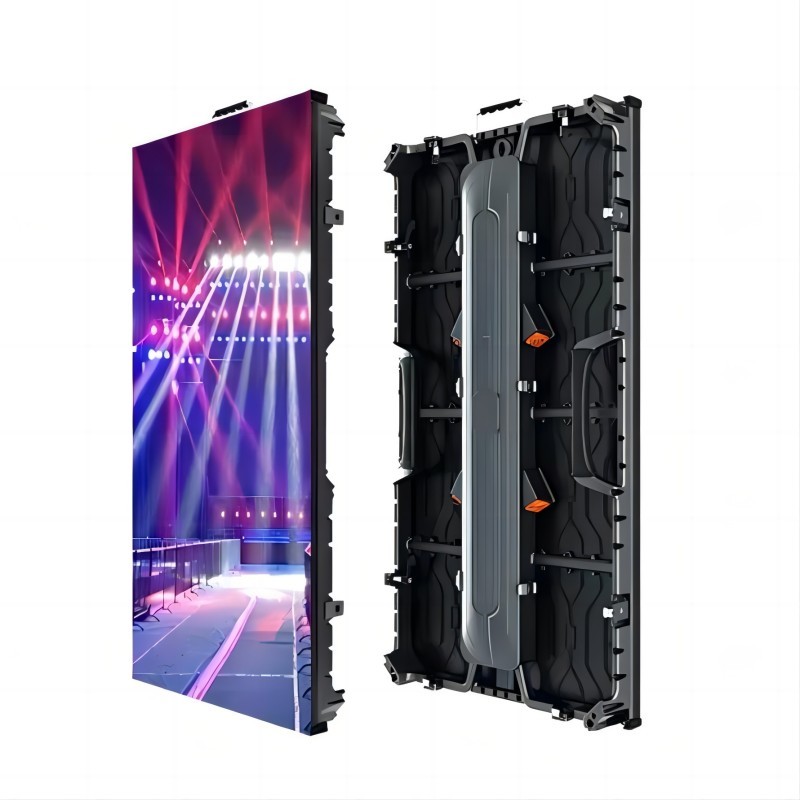

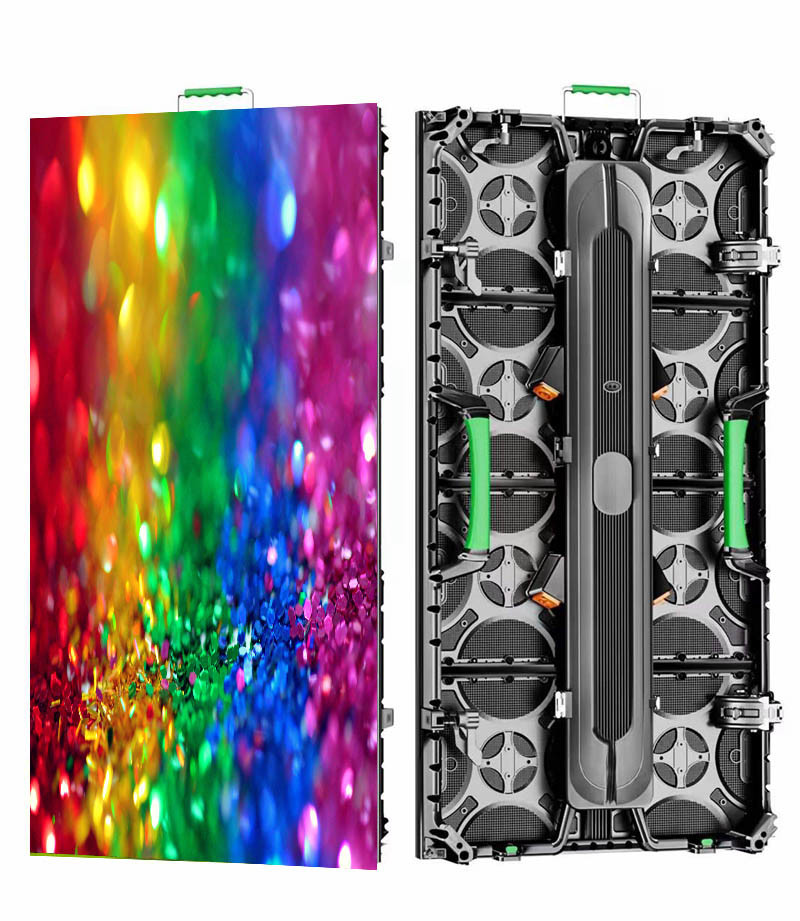

Outdoor P2.6mm Stage Rental LED Display Screen LED cabinet With Fast Lock

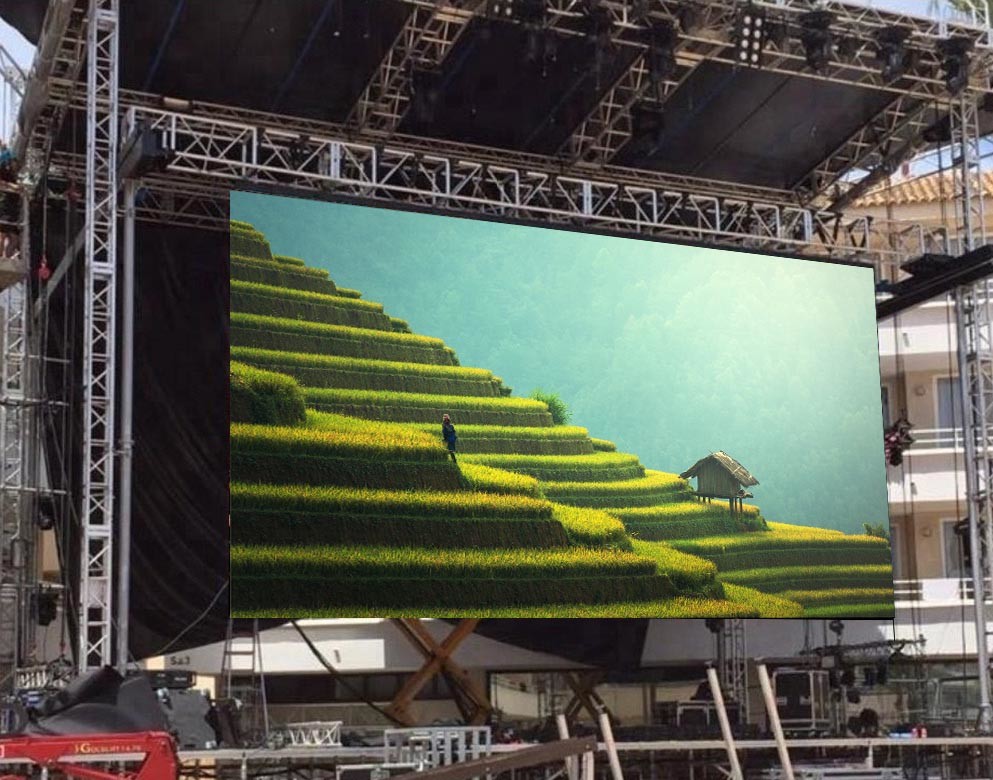

Application:
In this type of stage rental led display, there is also a kind of LED screen, which is similar to the LED screen of TV. It realizes screen display through splicing. It uses backlight to emit light. In the past, it was mainly used in security monitoring display occasions. With its frame becoming more and more, it is used more and more frequently in meetings, exhibitions and other fields. However, it has many stage display occasions, such as the temporary stage in the conference hall of the hotel and the conference room of the enterprise.
Advantage 1: The most important advantage of the clear LED screen is its high resolution, so it can clearly display the resolution of the source and play clear video and other content whether it is viewed at a close distance or at a long distance. Advantage 2: The picture quality is good. The rental led screen display screen is very accurate and colorful. The whole picture shows the picture quality and bright colors. It can show a better effect when displaying the background of the evening party. Advantage 3: The screen is stable. If there is no external collision after sale, the LED screen is always stable. Therefore, the period is more economical and the probability of after-sales is reduced.
Features:
- Integrated compact design, cableless design, fast replacement of power box.
- With fast lock design, 500x500mm and 500x1000mm cabinet can be easily spclied up and down, and mixed use.
- Reinforced connection design, all connection part is strong and reliable for all kinds of application.
- High precision, with high end CNC machine, the allowance is as small as within 0.1mm, which keeps the screen in perfect flat surface and create smooth image performance.
- Packing, with strong and high end flight cases, 8 in 1 or 6 in 1 as customer demand.
Parameters:
| Model | D-HK2.6 | D-HK2.9 | D-HK3.9 | D-HK4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 |
| Modules Per Cabinet (W x H) | 2 x 4 | 2 x 4 | 2 x 4 | 2 x 4 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 384 | 168 x 336 | 128 x 256 | 104 x 208 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 15kg | 15kg | 15kg | 15kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 280 W /Sqm | 260 W /Sqm | 250 W /Sqm | 220 W /Sqm |
| Max Power Consumption | 680 W /Sqm | 650 W /Sqm | 620 W /Sqm | 600 W /Sqm |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
Pictures:
