Stage Events Indoor Rental LED Display 500X1000mm Aluminum LED Cabinet
Indoor Rental LED Screen 500x1000mm Die Cast Aluminum Cabinet With 3840Hz Flicker Free Refresh Rate
Advantages Of Indoor Rental LED Screen
Stage background LED display screen Outdoor 500 * 1000 mm anti-collision rental LED display screen, outdoor stage background LED display video control system not only has a dual backup system, in case of failure, it can immediately switch to the standby system, but also provides related maintenance spare parts, all backups are modular design, convenient for after-sales maintenance; Adopt ultra-thin single box 14KG, 80mm thick; front maintenance structure, easy to replace and maintain, with wider color gamut space and faster response speed, can achieve any size seamless splicing, modular maintenance
Light and thin series of quick lock assembly design, support front and rear maintenance mode, inside and outside arc assembly, with anti-knock, climbing and floor tile functions, high gray and low brightness, stable performance, is another classic rental display screen.
Quick detail Of Indoor Rental LED Screen
- Suitable for all kind of rental events and fix installation
- Front and Rear Maintenance via Magnets
- Pixel Pitch: 2.604mm. 2.976mm, 3.91mm,P4.81mm
- Quality and High Contrast SMD LEDs, Wide viewing angle: 160°/ 160°.
- Greyscale: 14-16bits with NOVA Star
- Cabinet Material: 500X1000mm Die Cast Aluminum Cabinet, 14kg Weight
- Refresh Rate: 3840Hz

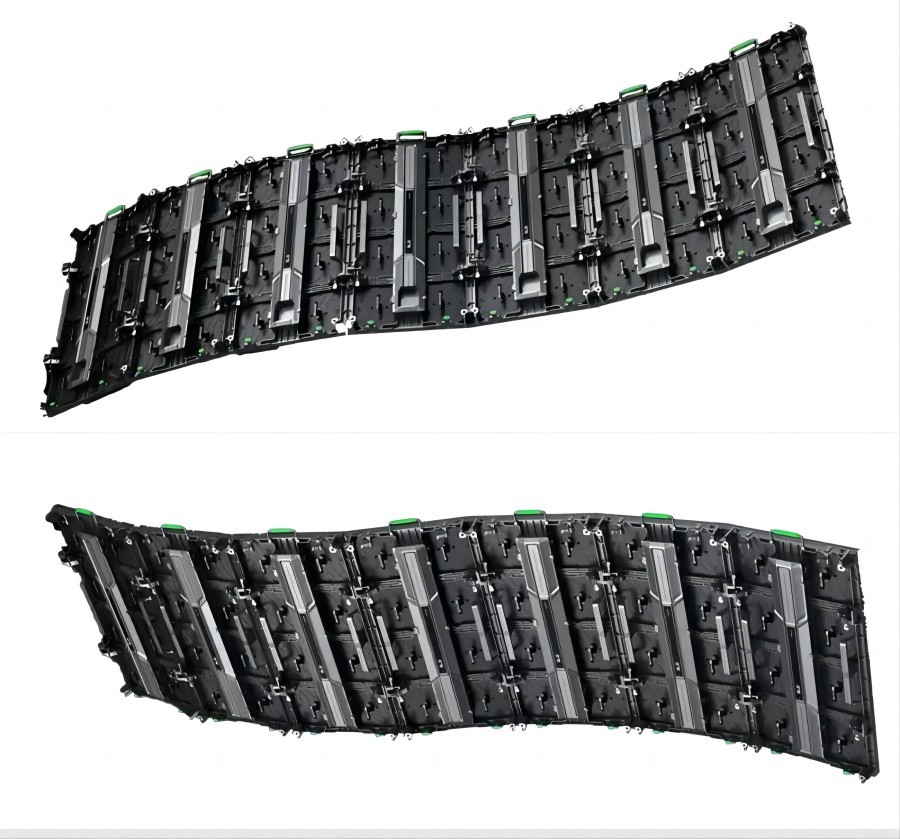

- Curve Installation: Yes, Concave and Convex Available
- Corner Protector: Available
Parameters:
| Model |
Di-LP2.6 |
Di-LP2.9 |
Di-LP3.9 |
Di-LP4.8 |
| Pixel Pitch |
2.604mm |
2.976mm |
3.91mm |
4.81mm |
| Pixel Configuration |
SMD1415 |
SMD1415 |
SMD1921 |
SMD1921 |
| Pixel Density |
147,456 pixels/m2 |
112,896 pixels/m2 |
65,536 pixels/m2 |
43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) |
250 x 250 |
250 x 250 |
250 x 250 |
250 x 250 |
| Panel Dimensions (mm) |
500 x 1000 x 80 |
500 x 1000 x 80 |
500 x 1000 x 80 |
500 x 1000 x 80 |
| Modules Per Cabinet (W x H) |
2 x 4 |
2 x 4 |
2 x 4 |
2 x 4 |
| Module Resolution |
96 x 96 |
84 x 84 |
64 x 64 |
52 x 52 |
| Cabinet Resolution |
192 x 384 |
168 x 336 |
128 x 256 |
104 x 208 |
| Panel Material |
Die Cast Aluminum |
Die Cast Aluminum |
Die Cast Aluminum |
Die Cast Aluminum |
| Weight per Cabinet |
14kg |
14kg |
14kg |
14kg |
| Colours |
281 trillion |
281 trillion |
281 trillion |
281 trillion |
| Contrast Ratio |
5,000 : 1 |
5,000 : 1 |
5,000 : 1 |
5,000 : 1 |
| Average Power Consumption |
200 W /Sqm |
200 W /Sqm |
200 W /Sqm |
200 W /Sqm |
| Max Power Consumption |
600 W /Sqm |
600 W /Sqm |
600 W /Sqm |
600 W /Sqm |
| Brightness |
>1,000 nits |
>1,000 nits |
>1,000 nits |
>1,000 nits |
| Refresh Rate |
>3,840Hz |
>3,840Hz |
>3,840 Hz |
>3,840 Hz |
| Vertical Viewing Angle |
160° |
160° |
160° |
160° |
| Horizontal Viewing Angle |
160° |
160° |
160° |
160° |
| Expected Lifetime |
100,000 Hrs |
100,000 Hrs |
100,000 Hrs |
100,000 Hrs |
| Servicing |
Front/Rear |
Front/Rear |
Front/Rear |
Front/Rear |
| IP Rating (Front/Rear) |
IP 43 |
IP 43 |
IP 43 |
IP 43 |
| Operating Temp/Humidity |
-20ºC - 50ºC / 10% - 90% |
-20ºC - 50ºC / 10% - 90% |
-20ºC - 50ºC / 10% - 90% |
-20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity |
-20ºC - 50ºC / 10% - 90% |
-20ºC - 50ºC / 10% - 90% |
-20ºC - 50ºC / 10% - 90% |
-20ºC - 50ºC / 10% - 90% |
Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
