| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | Di-XK2.6, Di-XK2.9, Di-XK3.9, Di-XK4.8 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Plywood box/Flight Case |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 sqm per month |
| Type: | Indoor Rental LED Screen | Pixel Pitch: | P2.604mm, P2.976mm, P3.91mm, P4.1mm |
|---|---|---|---|
| Cabinet Size: | 500x1000 | Service: | Front Service |
| Weight: | 14kg | Module Size: | 250x250mm |
| Highlight: | 4K Indoor Rental LED Display,Indoor Rental LED Display SMD1515,Aluminum p2.6 indoor led Screen |
||

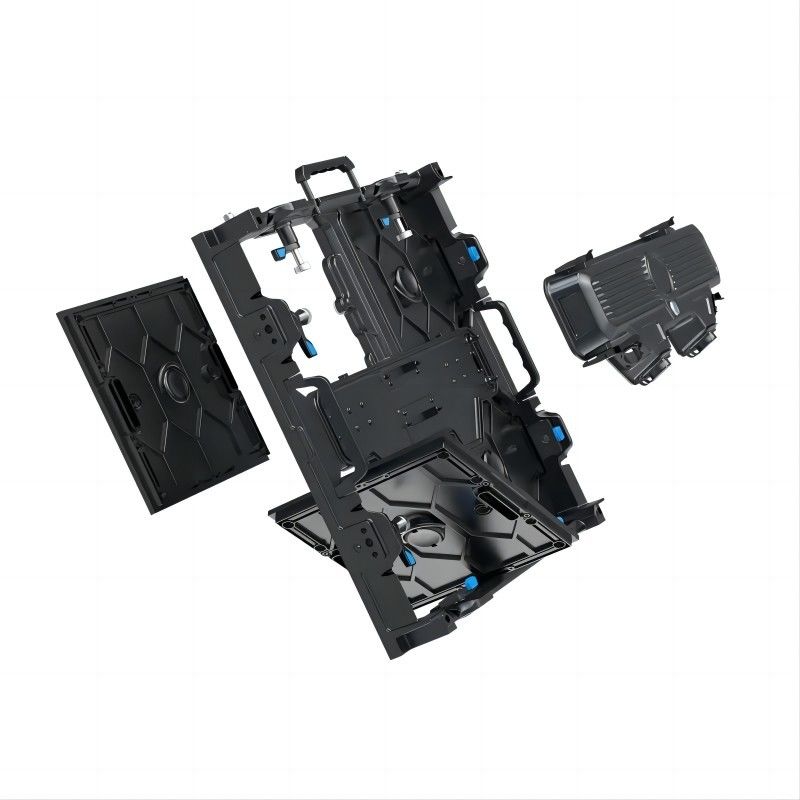

P2.6 - P4.8 Indoor Rental LED Display Screen Die Cast Aluminum LED Cabinet
Indoor Rental LED Screen 4K Quality With 3840Hz Flicker Free Refresh Rate
Quick detail Of Indoor Rental LED Screen
- Accurate die-casting cabinet,no gaps between cabinets;
- Fast lock design, good for rental hanging use;
- High contrast rate, white balance consistency, and color display uniformity;
- High refresh rate and high contrast, clear picture without flicker and distortion;
- No fan, no noise design, providing quite working environment;
- High definition to bring us a HD and delicate video pictures;
- IP65 for both front side and rear side, can be used for permanent outdoor installation.
- Pixel Pitch: 2.604mm. 2.976mm, 3.91mm,4.81mm
- Quality and High Contrast SMD LEDs, Wide viewing angle: 160°/ 160°.
- Greyscale: 14-16bits with NOVA Star
- Cabinet size: 500x1000mm Die Cast Aluminum 14kg
- Refresh Rate: 3840Hz
- Ingress Rate: IP43 Indoor
- Brightness:>1000cd/sqm
- Curve Installation: Yes, Concave and Convex Available
- Corner Protector: Available
Parameters:
| Model | Di-XK2.6 | Di-XK2.9 | Di-XK3.9 | Di-XK4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 |
| Modules Per Cabinet (W x H) | 2 x 4 | 2 x 4 | 2 x 4 | 2 x 4 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 384 | 168 x 336 | 128 x 256 | 104 x 208 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 14kg | 14kg | 14kg | 14kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /Sqm | 200 W /Sqm | 200 W /Sqm |
| Max Power Consumption | 600 W /Sqm | 600 W /Sqm | 600 W /Sqm | 600 W /Sqm |
| Brightness | >1,000 nits | >1,000 nits | >1,000 nits | >1,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 43 | IP 43 | IP 43 | IP 43 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / |
Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
