| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | D-LU2.6, D-LU2.9 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Plywood box/Flight case |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 sqm per month |
| Type: | Outdoor Rental LED Screen | Pixel Pitch: | P2.604mm, P2.976mm |
|---|---|---|---|
| Cabinet Size: | 500x500mm | Service: | Front/Rear |
| Weight: | 8kg | Module Size: | 250x250mm |
| Highlight: | IP68 LED Video Panel Rental,LED Video Panel Rental P6.94mm,3840Hz rental led panel |
||

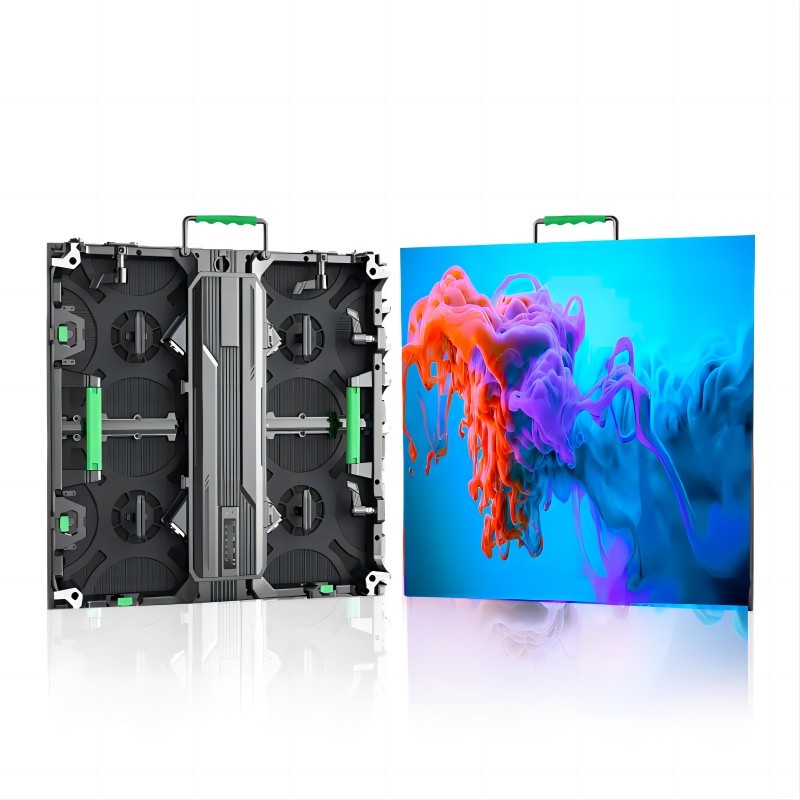

Waterproof LED Video Wall Panel 500x500mm P2.6 P2.9 Stage Rental LED Display

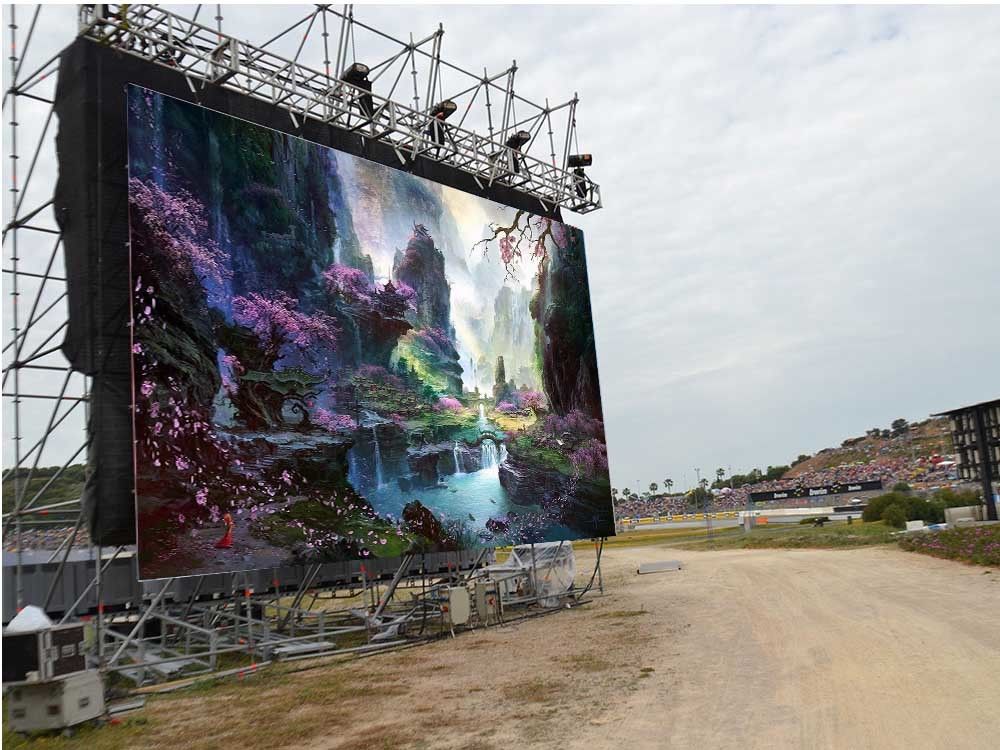

Application Of Outdoor Rental LED Video Wall
D-LU series is widely used in auditoriums, conference rooms, banquets, front halls, exhibition demonstrations, transportation, studios, command and monitoring and other places.
Quick Details
- Pixel Pitch: P2.604mm,P2.976mm
- Waterproof brand SMD LEDs, high brightness and high reliability
- Greyscale: 14bits-16bits with NOVA Star

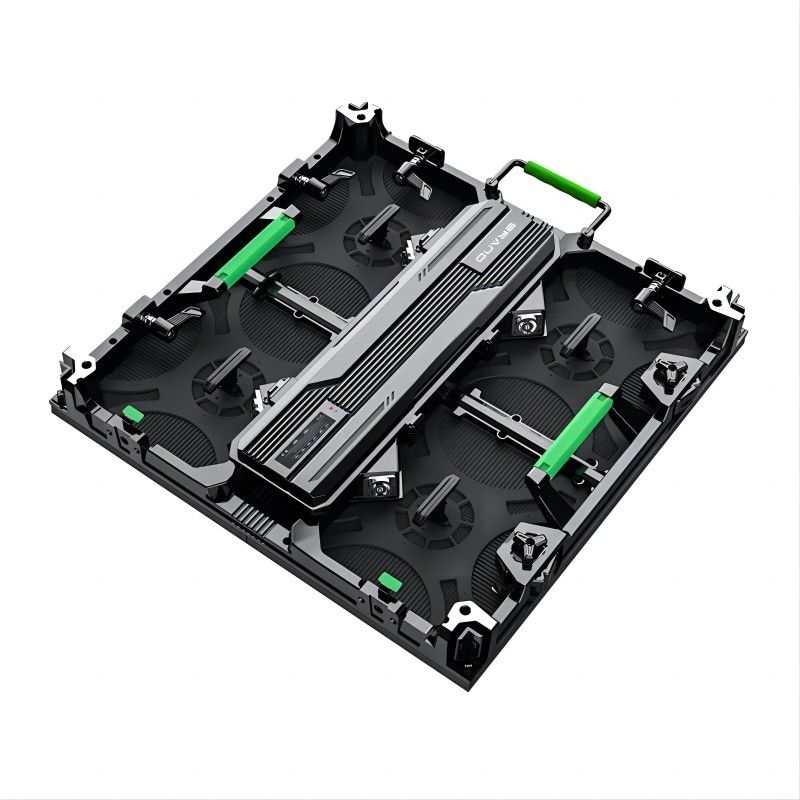

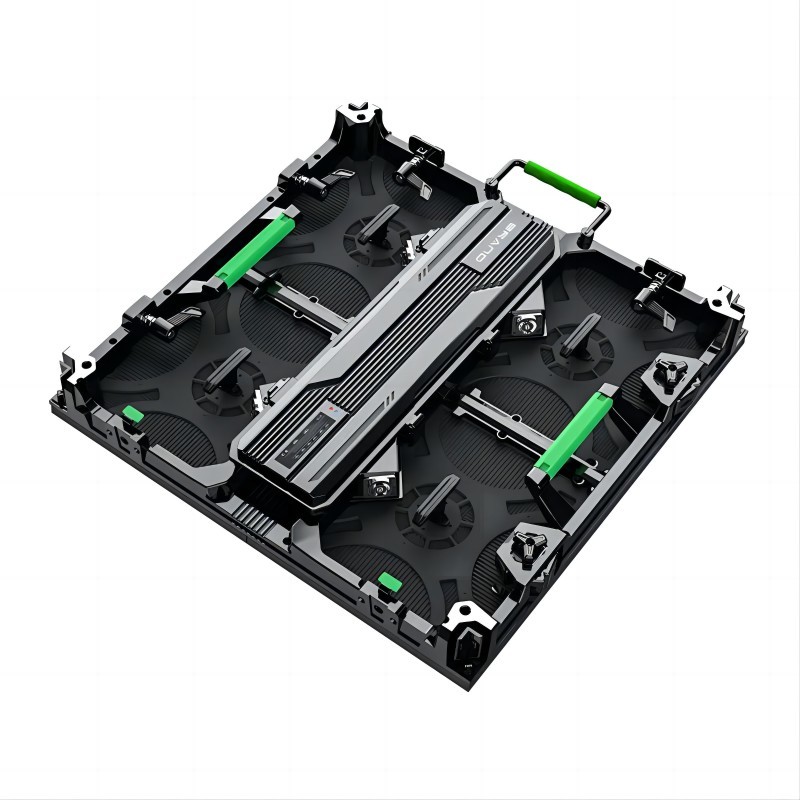

- Cabinet size: 500x500mm Die Cast Aluminum Cabinet
- Service type: Front or Rear Service
- Refresh Rate: 3840Hz
- Ingress Rate: IP65 Outdoor standard
- Brightness:>5000cd/sqm
Feature Of Outdoor Rental LED Screen
- Ultra-thin: single box 8KG, 75mm thickness;
- Ultra-high refresh rate: It can ensure that high-definition cameras and video cameras can capture high-definition and exquisite display pictures when shooting;
- High brightness and high gray performance
- High uniformity of brightness and color: select the same batch of light-emitting devices with high quality to ensure high uniformity;
- High reliability and long service life

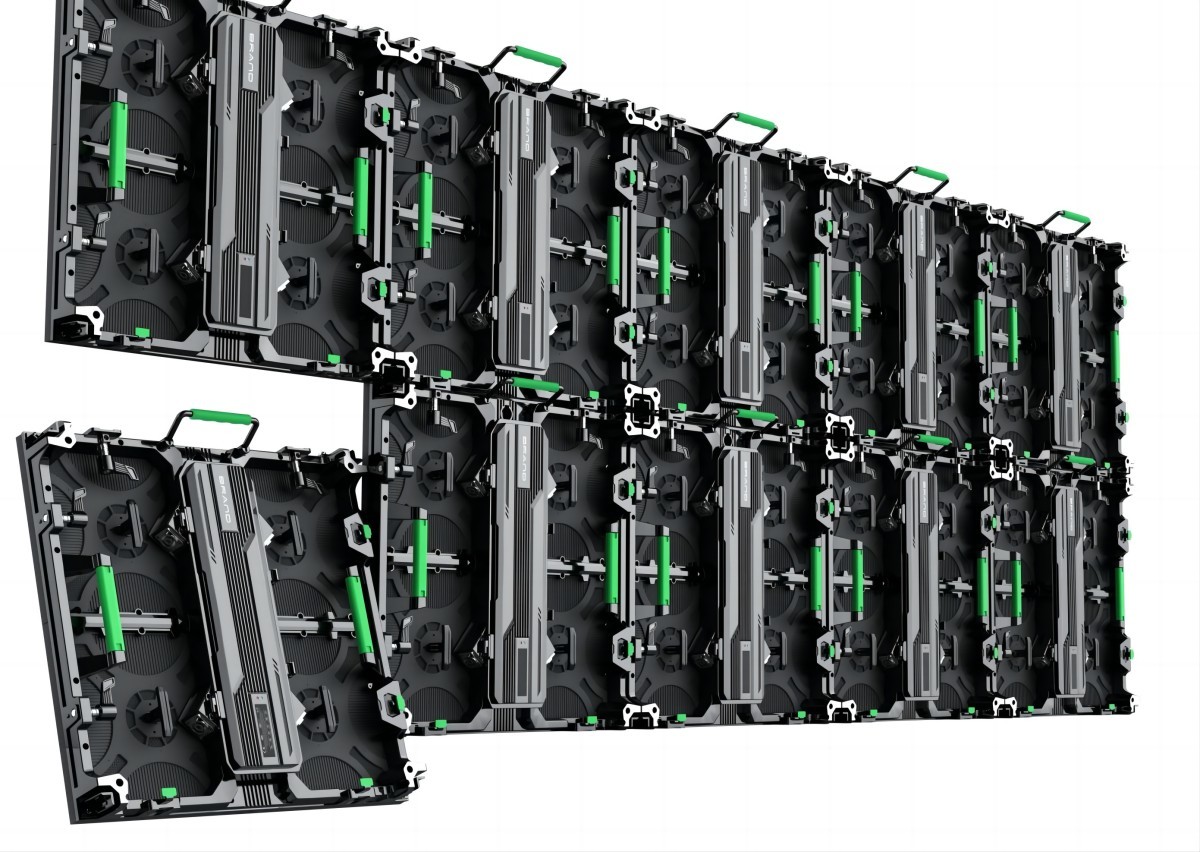

- Seamless and fast splicing, simple maintenance: the lock catch structure is adopted to make the splicing operation simple and convenient without tools;
- No noise: quiet design, free of air conditioning, free of fan installation, eliminate noise, reduce power consumption, energy saving;
- Canbinet locker
Fast installation, lockers on the top and bottom of cabinet.
- Curved Design
Parameters:
| Model | D-LU2.6 | D-LU2.9 | D-LU3.9 | D-LU4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 |
| Modules Per Cabinet (W x H) | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 192 | 168 x 168 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 8kg | 8kg | 8kg | 8kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 280 W /Sqm | 260 W /Sqm | 250 W /Sqm | 220 W /Sqm |
| Max Power Consumption | 680 W /Sqm | 650 W /Sqm | 620 W /Sqm | 600 W /Sqm |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
