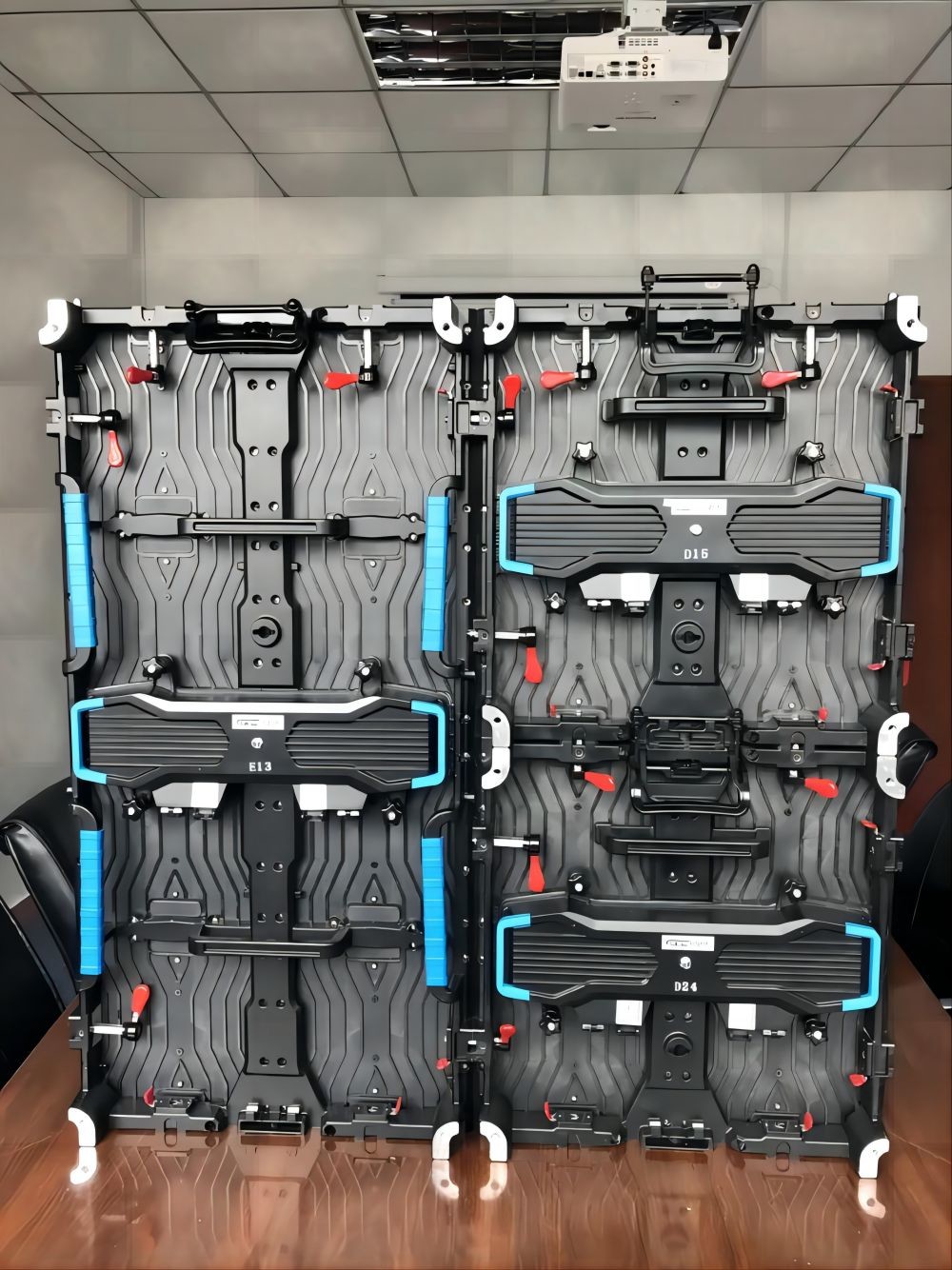

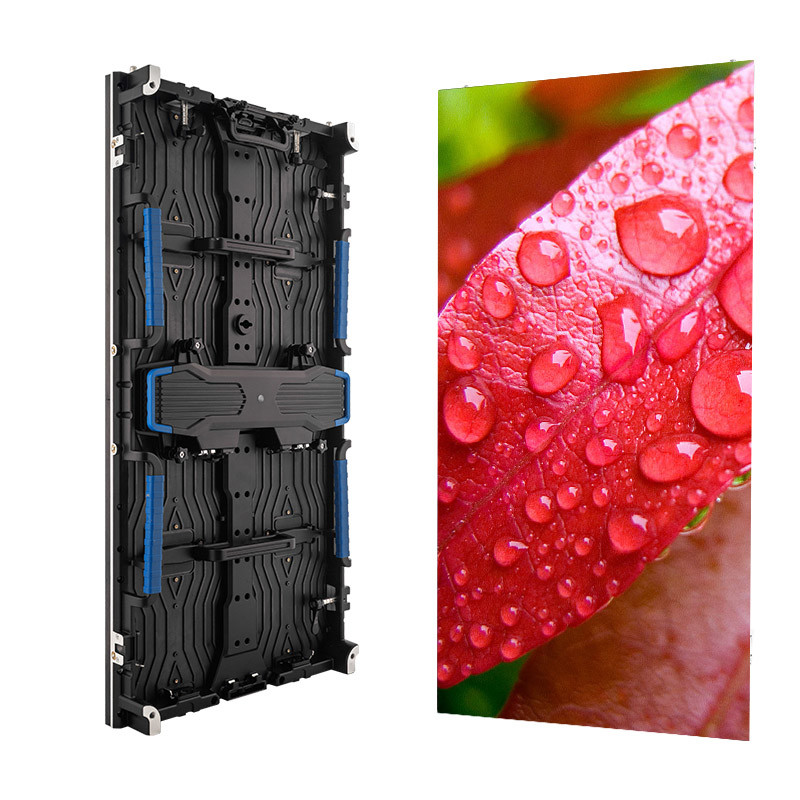

500x1000mm P3.9 P4.8 LED Rental Screen With Independent Power Box
Outdoor 500x1000mm Die Cast Aluminum Cabinet High Brightness 5000nits With Independent Power Box
Feature Of Outdoor Rental LED Screen
- Accurate die-casting cabinet,no gaps between cabinets;
- Fast lock design, good for rental hanging use;
- High contrast rate, white balance consistency, and color display uniformity;
- High refresh rate and high contrast, clear picture without flicker and distortion;
- No fan, no noise design, providing quite working environment;
- High definition to bring us a HD and delicate video pictures;
- IP65 for both front side and rear side, can be used for permanent outdoor installation.
- The products based on CE, FCC,ROHS Certification.
- This can avoid cabinet crush,and protect the led lamps during transportation and installation ,which reduce maintenance cost,reduce the likelihood of any service issue.
- Adjustable Angle lock for curve Application via Rotary Lock
- Advanced Flash Function: The Calibration Data can be Saved to the receiver card and used automatically
- Outdoor Waterproof IP68 Standard, Front and Rear Maintenance via Magnets
- Rubber seal for the back of the module, to create maximum protection against rain or moisture
- Easy to use corner protectors, push it and corner protector released
Parameters:
| Model |
D-XK2.6 |
D-XK2.9 |
D-XK3.9 |
D-XK4.8 |
| Pixel Pitch |
2.604mm |
2.976mm |
3.91mm |
4.81mm |
| Pixel Configuration |
SMD1415 |
SMD1415 |
SMD1921 |
SMD1921 |
| Pixel Density |
147,456 pixels/m2 |
112,896 pixels/m2 |
65,536 pixels/m2 |
43,264 pixels/m2 |
| Module Dimensions(W x H) (mm) |
250 x 250 |
250 x 250 |
250 x 250 |
250 x 250 |
| Panel Dimensions (mm) |
500 x 1000 x 80 |
500 x 1000 x 80 |
500 x 1000 x 80 |
500 x 1000 x 80 |
| Modules Per Cabinet (W x H) |
2 x 4 |
2 x 4 |
2 x 4 |
2 x 4 |
| Module Resolution |
96 x 96 |
84 x 84 |
64 x 64 |
52 x 52 |
| Cabinet Resolution |
192 x 384 |
168 x 336 |
128 x 256 |
104 x 208 |
| Panel Material |
Die Cast Aluminum |
Die Cast Aluminum |
Die Cast Aluminum |
Die Cast Aluminum |
| Weight per Cabinet |
15kg |
15kg |
15kg |
15kg |
| Colours |
281 trillion |
281 trillion |
281 trillion |
281 trillion |
| Contrast Ratio |
5,000 : 1 |
5,000 : 1 |
5,000 : 1 |
5,000 : 1 |
| Average Power Consumption |
280 W /Sqm |
260 W /Sqm |
250 W /Sqm |
220 W /Sqm |
| Max Power Consumption |
680 W /Sqm |
650 W /Sqm |
620 W /Sqm |
600 W /Sqm |
| Brightness |
>5,000 nits |
>5,000 nits |
>5,000 nits |
>5,000 nits |
| Refresh Rate |
>3,840Hz |
>3,840Hz |
>3,840 Hz |
>3,840 Hz |
| Vertical Viewing Angle |
160° |
160° |
160° |
160° |
| Horizontal Viewing Angle |
160° |
160° |
160° |
160° |
| Expected Lifetime |
100,000 Hrs |
100,000 Hrs |
100,000 Hrs |
100,000 Hrs |
| Servicing |
Front/Rear |
Front/Rear |
Front/Rear |
Front/Rear |
| IP Rating (Front/Rear) |
IP 65 |
IP 65 |
IP 65 |
IP 65 |
| Operating Temp/Humidity |
-20ºC - 50ºC / 10% - 90% |
-20ºC - 50ºC / 10% - 90% |
-20ºC - 50ºC / 10% - 90% |
-20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity |
-20ºC - 50ºC / 10% - 90% |
-20ºC - 50ºC / 10% - 90% |
-20ºC - 50ºC / 10% - 90% |
-20ºC - 50ºC / 10% - 90% |
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
