| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | D-YD2.9 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Flight case |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,,000 sqm per month |
| Type: | Outdoor Rental LED Screen | Pixel Pitch: | P2.976mm |
|---|---|---|---|
| Cabinet Size: | 500x500 | Service: | Rear Or Front Service |
| Weight: | 7.5kg | Module Size: | 250x250mm |
| Highlight: | Rental outdoor led display cabinet,outdoor led display cabinet 500mm,P2.9 mm LED Screen Panel |
||
Outdoor Rental LED Display Cabinet 500x500mm P2.9 mm LED Screen Panel
Quick detail Of D-YD series outdoor rental LED screen
- Pixel Pitch: 2.976mm, 3.91mm, 4.81mm
- Waterproof Nation Star SMD LEDs, high brightness and high reliability
- Greyscale: 14bits with NOVA
- Cabinet size: 500x500mm and 500x1000mm Die Cast Aluminum Cabinet
- Service type: Rear service for smooth surface
- PSU: Brand power supply, stable and reliable
- Refresh Rate: 3840Hz
- Ingress Rate: IP65 Outdoor standard
- Quality Certificate:CE, RoHS,FCC, ETL
- Brightness:5000cd/sqm
- Curve Installation: Rotary lock for +- 15 degree Concave and Convex shape
- Corner Protector: Optional
Specification Of Outdoor Rental LED Screen
| D-YD2.9 | D-YD3.9 | D-YD4.8 | |
| Pixel Pitch | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions(W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) |
500 x 500 x 80 |
500 x 500 x 80 |
500 x 500 x 80 |
| Modules Per Cabinet (W x H) | 2 x 2 | 2 x 2 | 2 x 2 |
| Module Resolution | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 168 x 168 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 7.5kg | 7.5kg | 7.5kg |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 250 W /Sqm | 220 W /Sqm | 200 W /Sqm |
| Max Power Consumption | 650 W /Sqm | 620 W /Sqm | 600 W /Sqm |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Rear/Front | Rear/Front | Rear/Front |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |

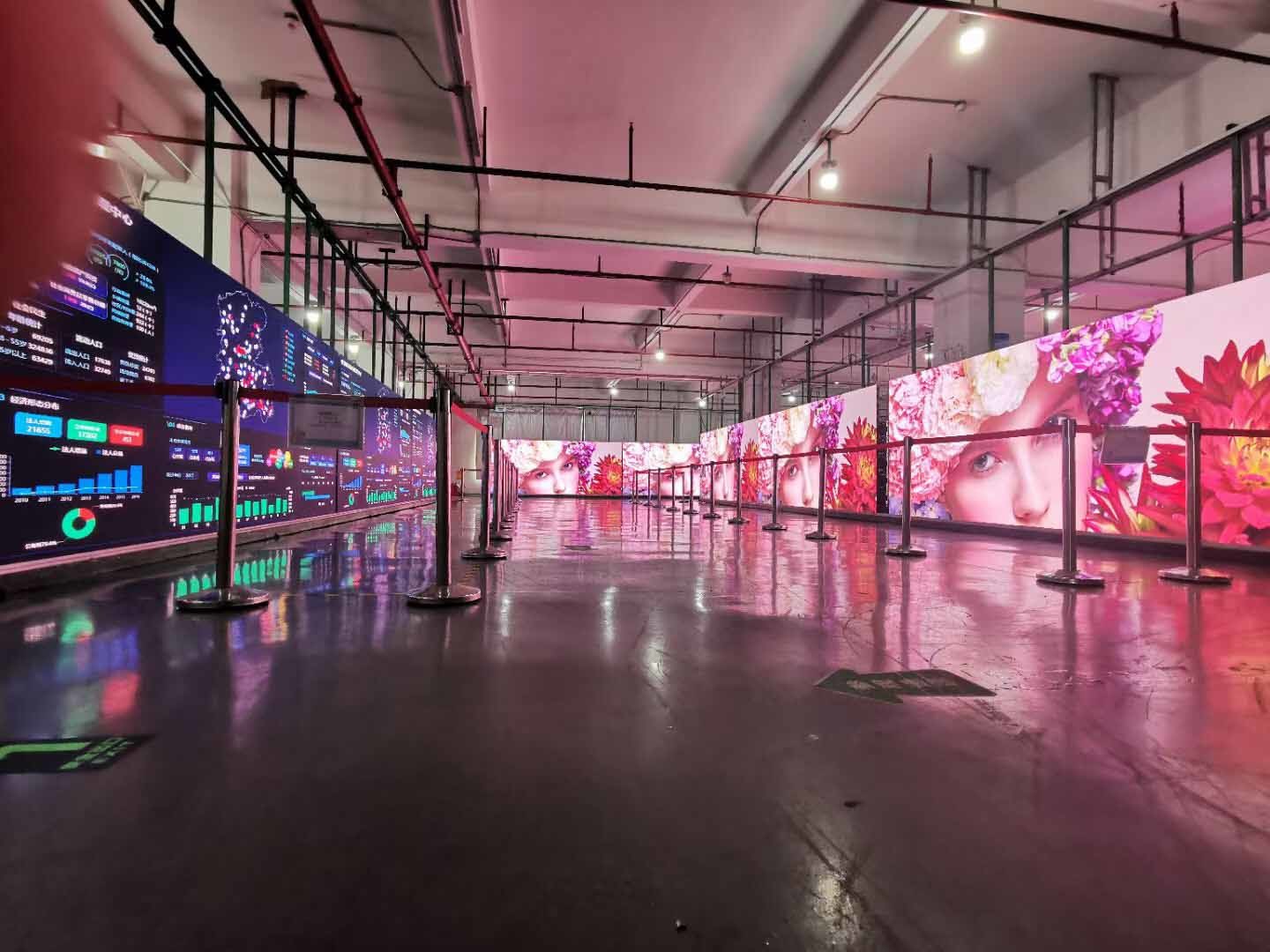

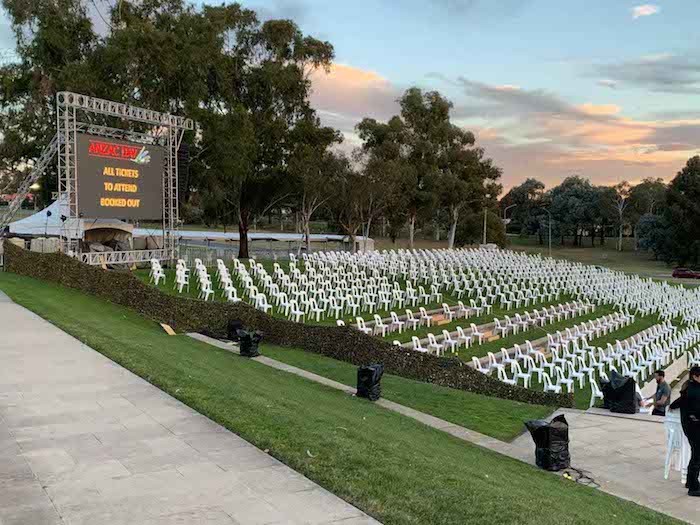

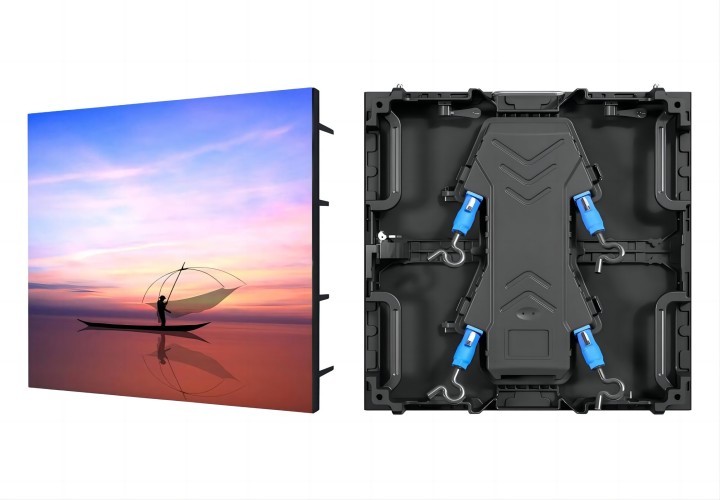

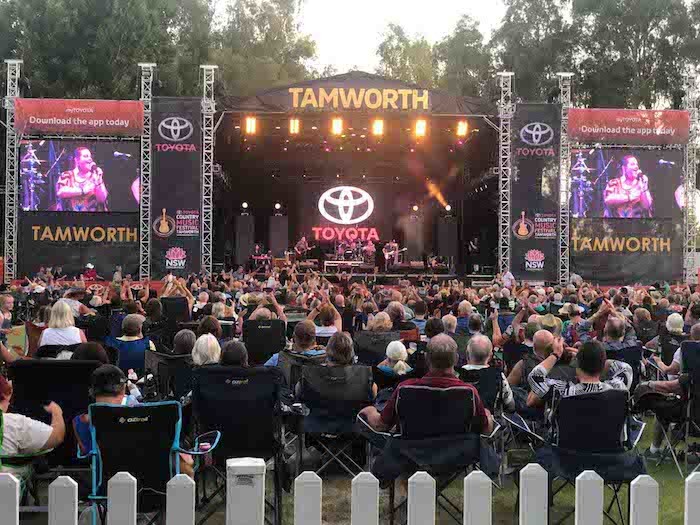

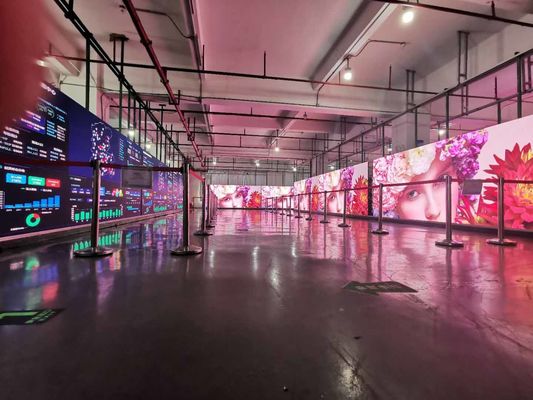

Pictures:
Our Services
1. 20 Years professional led display supplier
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
FAQ
Q1. How does the semi auto corner protector work?
A: Gently push the button, the corner protector will release and cover the corner area.
Q2. What installation options do we have?
A: Either stacking on ground or haning is supported.
Q3. Do you have any MOQ limit for led screen order?
A: Low MOQ, modules or complete screen order are all welcome.
Q4. What's the shipping method?
A: Air freight, sea and train transport according to different region.
Q5. What's the payment method?
A: Mostly we accpet telegraphic transfer, 50% before production and 50% balance before shipment.
Q6. How do you control the production quality?
A: We manage quality starting from incoming material, all leds, ICs and PSU are pre-inspected then go to the production line.
The modules and complete screen will have at least 72 hours aging test, to make sure stable quality and performance.
Q7: How does warranty work?
A: We provide 1-3 years warranty for different product. Free Repair or Exchange of Defective Parts with One way Shipping
