Home ProductsOutdoor Rental LED DisplayWaterproof P2.6 P2.9 Outdoor Rental LED Display Die-Casting Aluminum Cabinet

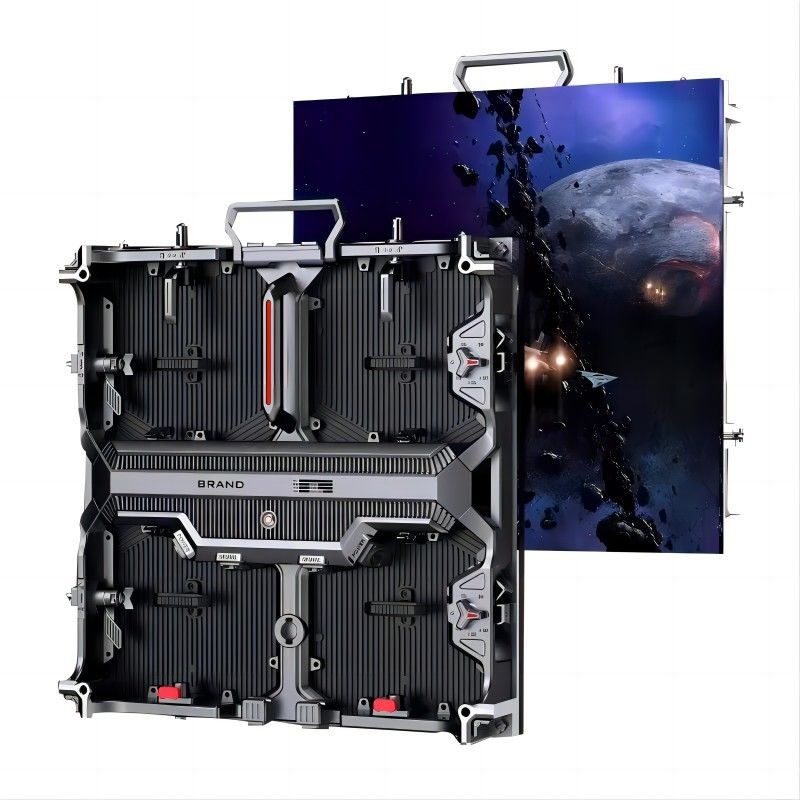

Waterproof P2.6 P2.9 Outdoor Rental LED Display Die-Casting Aluminum Cabinet

Waterproof P2.6 P2.9 Outdoor Rental LED Display Die-Casting Aluminum Cabinet
Waterproof P2.6 P2.9 Outdoor Rental LED Display Die-Casting Aluminum Cabinet
Waterproof P2.6 P2.9 Outdoor Rental LED Display Die-Casting Aluminum Cabinet Waterproof P2.6 P2.9 Outdoor Rental LED Display Die-Casting Aluminum Cabinet Waterproof P2.6 P2.9 Outdoor Rental LED Display Die-Casting Aluminum Cabinet Waterproof P2.6 P2.9 Outdoor Rental LED Display Die-Casting Aluminum Cabinet
Basic Information
Place of Origin: China
Brand Name: Conwin LED Display
Certification: FCC, CE, ROHS
Model Number: D-LT2.6,D-LT2.9
Minimum Order Quantity: 1sqm
Price: Negotiable
Packaging Details: Plywood box/Flight case
Delivery Time: 15 working days
Payment Terms: T/T, L/C
Supply Ability: 1000 sqm per month
Contact Now
Type: Outdoor Rental LED Screen Pixel Pitch: P2.604mm, P2.976mm
Cabinet Size: 500x500 Service: Front/Rear
Weight: 8kg Module Size: 250x500mm
Highlight:

IP68 Outdoor Rental LED Display

,

Waterproof Outdoor Rental LED Display

,

Aluminum outdoor led display rental

Waterproof P2.6 P2.9 Outdoor Rental LED Display Die-Casting Aluminum Cabinet

Quick detail Of Outdoor Rental LED Screen

- Pixel Pitch: P2.604mm, P2.976mm,P3.91mm and P4.81mm
- Waterproof brand SMD LEDs, high brightness and high reliability
- Greyscale: 14bits - 16bits
- Cabinet size: 500x500mm and 500x1000mm Die Cast Aluminum Cabinet
- Service type: Waterproof and magnetic front service or Rear Service

- PSU: Pin connection independent power box, easily and evenly remove and put on

- Refresh Rate: 3840-7680Hz

- Ingress Rate: IP65 Outdoor standard and magnetic front service

- Quality Certificate:CE, RoHS,FCC, ETL

- Brightness:>5000cd/sqm

- Curve Installation: Rotary lock for +- 15 degree Concave and Convex shape

- Corner Protector: Semi-auto Corner Protector, gently push and release the protector for the max security of LEDs

Waterproof P2.6 P2.9 Outdoor Rental LED Display Die-Casting Aluminum Cabinet 0

Waterproof P2.6 P2.9 Outdoor Rental LED Display Die-Casting Aluminum Cabinet 1

Waterproof P2.6 P2.9 Outdoor Rental LED Display Die-Casting Aluminum Cabinet 2

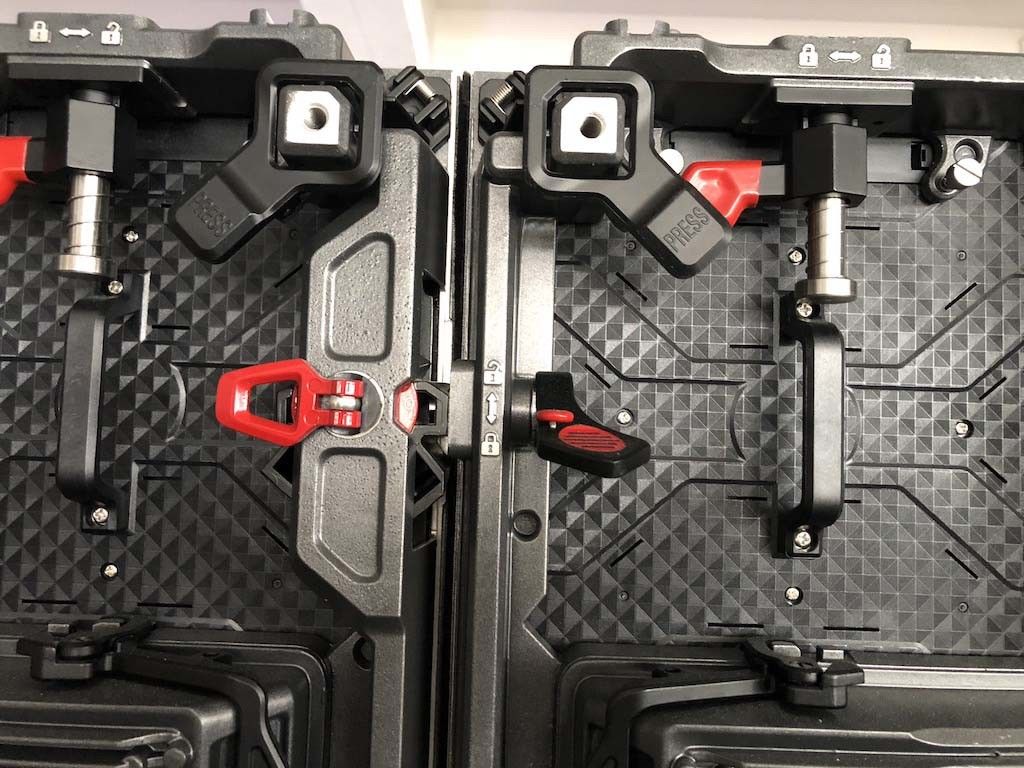

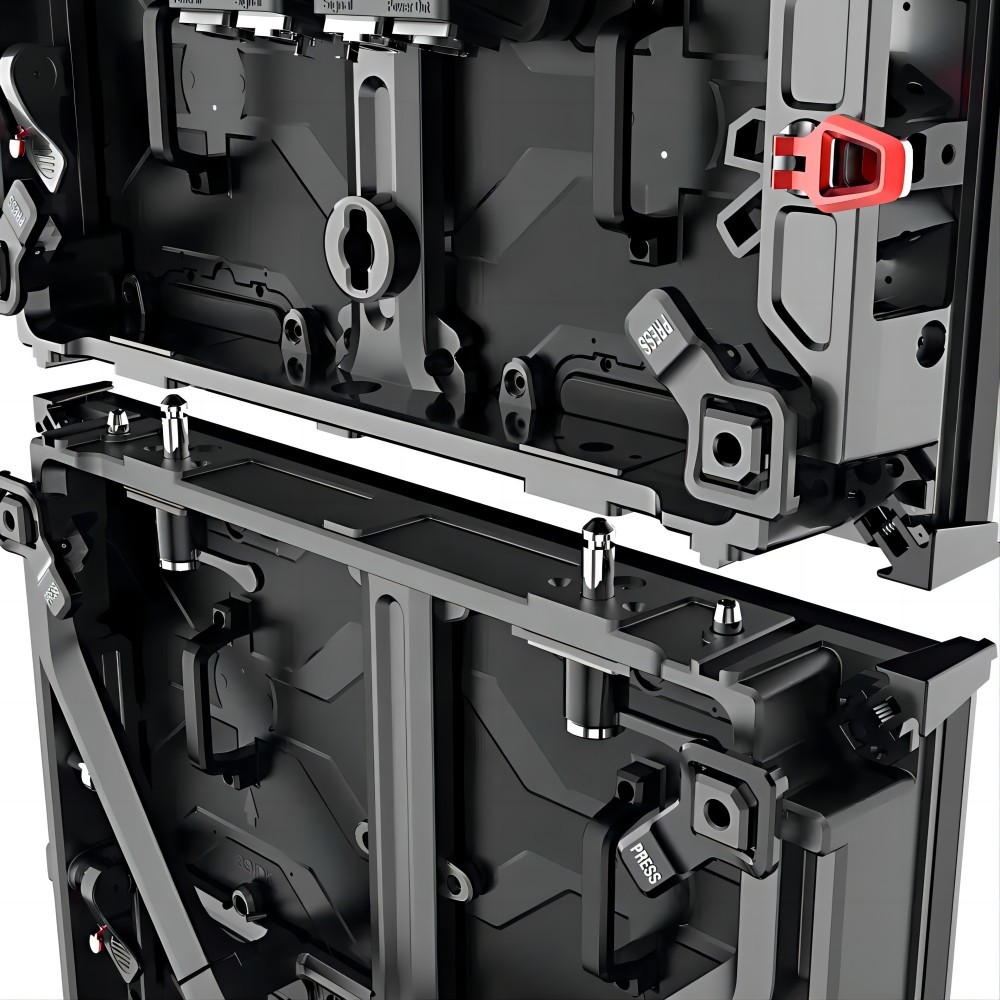

- Support curve design with side angle adjustable lock

  Cabinet support 45 edge degree for seamless right angle shape

Waterproof P2.6 P2.9 Outdoor Rental LED Display Die-Casting Aluminum Cabinet 3Waterproof P2.6 P2.9 Outdoor Rental LED Display Die-Casting Aluminum Cabinet 4

Waterproof P2.6 P2.9 Outdoor Rental LED Display Die-Casting Aluminum Cabinet 5Waterproof P2.6 P2.9 Outdoor Rental LED Display Die-Casting Aluminum Cabinet 6

Parameters:
Model D-LT2.6 D-LT2.9 D-LT3.9 D-LT4.8
Pixel Pitch 2.604mm 2.976mm 3.91mm 4.81mm
Pixel Configuration SMD1415 SMD1415 SMD1921 SMD1921
Pixel Density 147,456 pixels/m2 112,896 pixels/m2 65,536 pixels/m2 43,264 pixels/m2
   Module Dimensions        (W x H) (mm) 250 x 250 250 x 250 250 x 250 250 x 250
Panel Dimensions (mm) 500 x 500 x 80 500 x 500 x 80 500 x 500 x 80 500 x 500 x 80
Modules Per Cabinet     (W x H) 2 x 2 2 x 2 2 x 2 2 x 2
Module Resolution 96 x 96 84 x 84 64 x 64 52 x 52
Cabinet Resolution 192 x 192 168 x 168 128 x 128 104 x 104
Panel Material Die Cast Aluminum Die Cast Aluminum Die Cast Aluminum Die Cast Aluminum
Weight per Cabinet 8kg 8kg 8kg 8kg
Colours 281 trillion 281 trillion 281 trillion 281 trillion
Contrast Ratio 5,000 : 1 5,000 : 1 5,000 : 1 5,000 : 1
Average Power Consumption 280 W /Sqm 260 W /Sqm 250 W /Sqm 220 W /Sqm
Max Power Consumption 680 W /Sqm 650 W /Sqm 620 W /Sqm 600 W /Sqm
Brightness >5,000 nits >5,000 nits >5,000 nits >5,000 nits
Refresh Rate >3,840Hz >3,840Hz >3,840 Hz >3,840 Hz
Vertical Viewing Angle 160° 160° 160° 160°
Horizontal Viewing Angle 160° 160° 160° 160°
Expected Lifetime 100,000 Hrs 100,000 Hrs 100,000 Hrs 100,000 Hrs
Servicing Front/Rear Front/Rear Front/Rear Front/Rear
IP Rating (Front/Rear) IP 65 IP 65 IP 65 IP 65
Operating Temp/Humidity -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90%
Storage Temp/Humidity -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90%

Pictures:

Waterproof P2.6 P2.9 Outdoor Rental LED Display Die-Casting Aluminum Cabinet 7

Waterproof P2.6 P2.9 Outdoor Rental LED Display Die-Casting Aluminum Cabinet 8

Waterproof P2.6 P2.9 Outdoor Rental LED Display Die-Casting Aluminum Cabinet 9

Our Services

1. 20 Years professional led display manufacturer

2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price

4. OEM and ODM service
5. Customizable product upon request
