| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | CE-EMC, CE-LVD, RoHS, ETL, FCC |
| Model Number: | D-LP3.9 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Flight Case |
| Delivery Time: | 15days |
| Payment Terms: | T/T, , L/C |
| Supply Ability: | 1,000sqm/month |
| Pixel: | 3.91mm | Service Type: | Front/Rear |
|---|---|---|---|
| Cabinet Size: | 500x500mm | Refresh Rate: | 3840hz |
| Weight: | 8kg | Material: | Die Casting Aluminum |
| Highlight: | stage screen rental,rental led display screen |
||

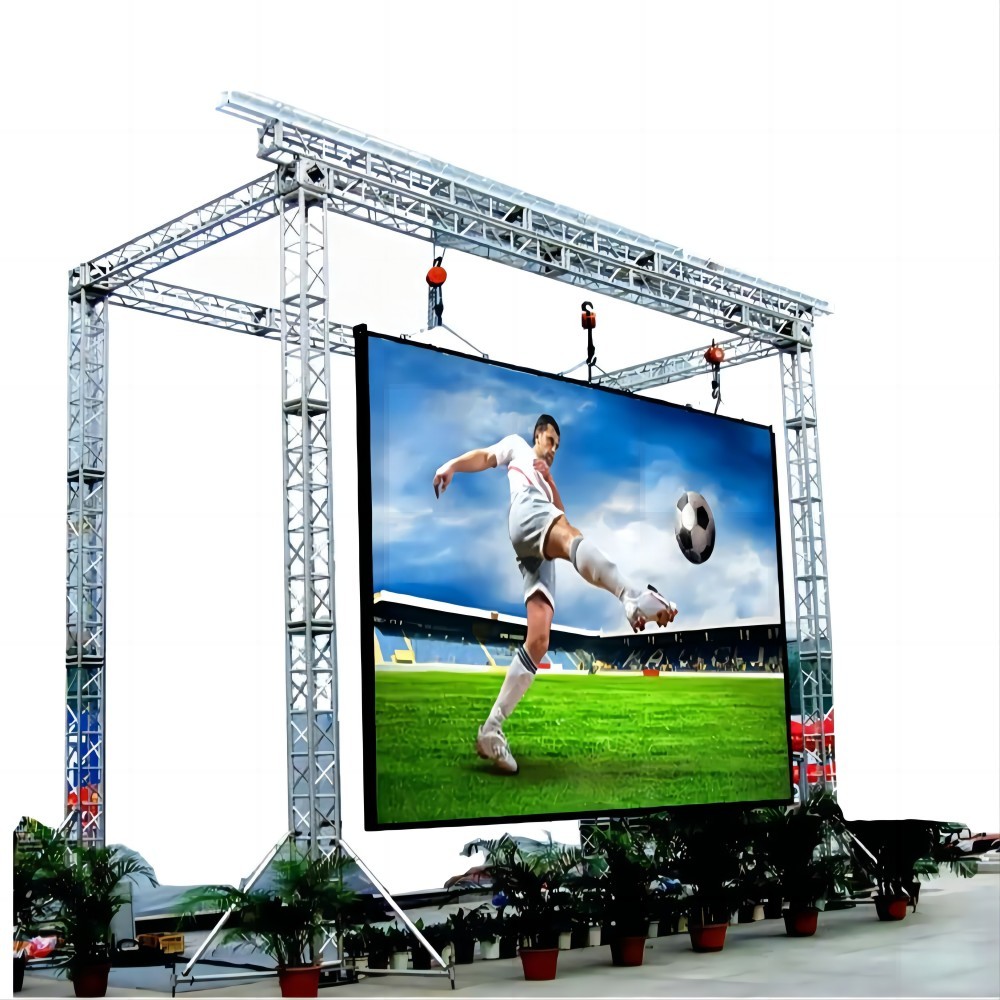

P3.91mm 500x500mm Outdoor Stage Rental LED Display Front / Rear Service
Features and Advantages:
- Adjustable Angle Lock, Flexible Stage Design
Arc-shaped connection available, with angle adjustment device, concave and convex 15 degrees of adjustment as you wish for different stage.

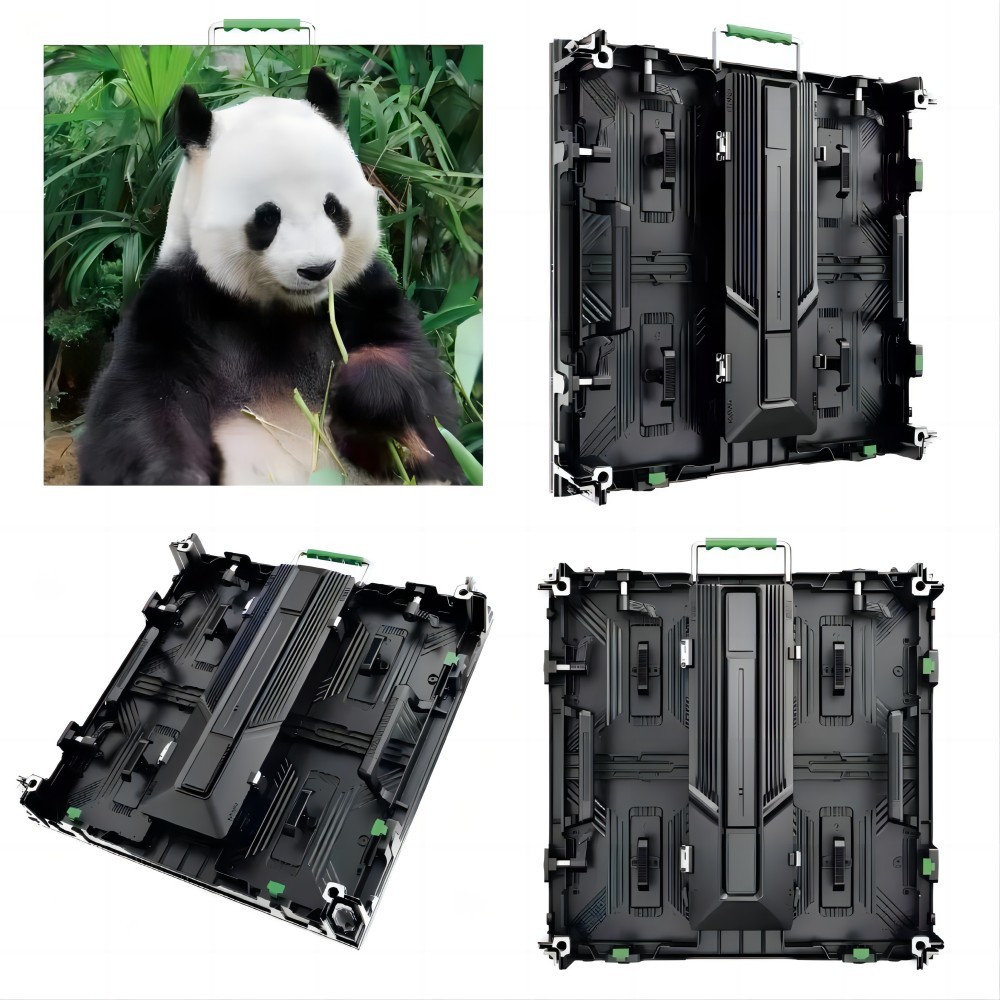

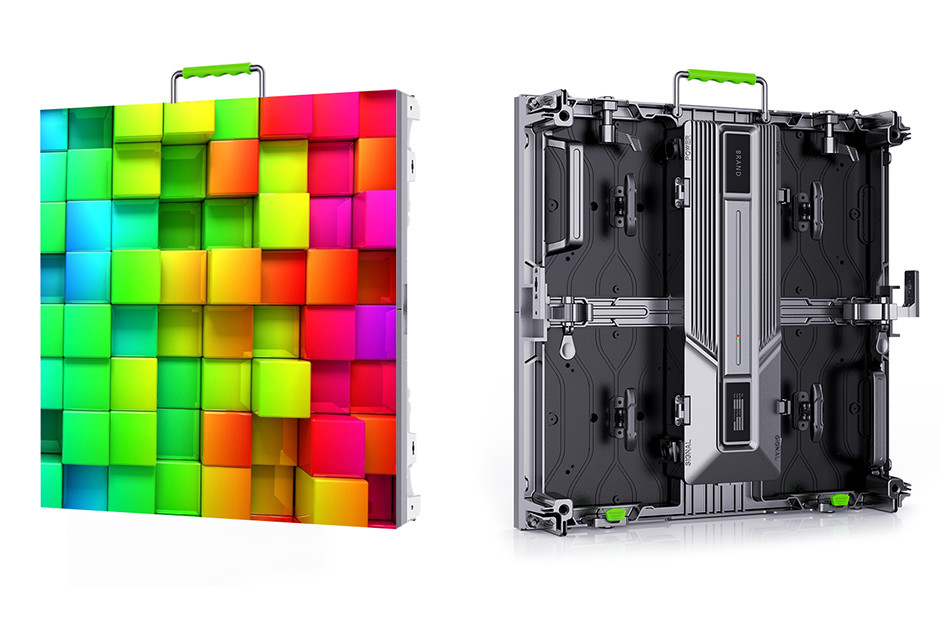

- Light Weight Cabinet Design, One Man Operation
Weight only 8kg, easy to handle. Die cast aluminum cabinet, perfect splicing without gaps. Fast locking makes assembly and disassembly extremely easy. High-quality plugs ensure reliability.

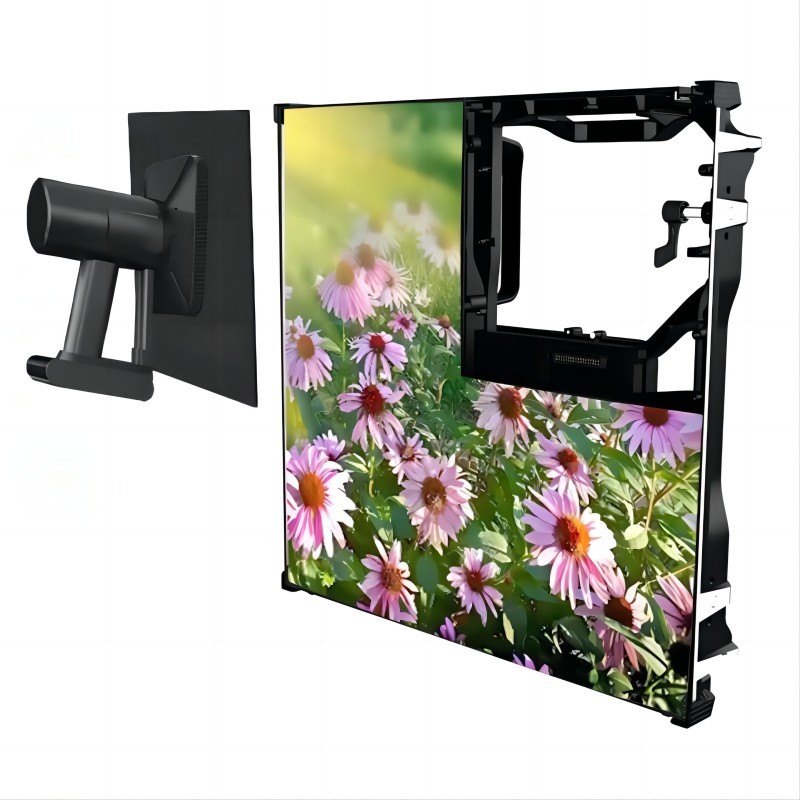

- Front Maintenance Magnetic Module
Snap-in quick disassembly design, maintenance and installation is more efficient and convenient.
High contrast 3000:1 and HD 4K perfect picture quality, bring you absolute visual enjoyment.
easily attract attention, greatly enhance the value of advertising.
- Cabinet support added curve lock, so that make LED screen inner/outer curve
Cabinet support 45 degree on edge, so that make screen right angle with seamless
Fast Installation/assemble with locks for handing/stacking
Parameters:
| Model | D-LP2.6 | D-LP2.9 | D-LP3.9 | D-LP4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 |
| Modules Per Cabinet (W x H) | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 192 | 168 x 168 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 8kg | 8kg | 8kg | 8kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 280 W /Sqm | 260 W /Sqm | 250 W /panel | 220 W /panel |
| Max Power Consumption | 680 W /Sqm | 650 W /Sqm | 620 W /panel | 600 W /panel |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
Pictures:
Why choose LED Display
Product selling points
Quick disassembly and assembly, no steel frame structure required for installation, light, thin, transparent, high-definition picture, restore true color world transparency as high as 95%, optimal viewing distance without graininess, long service life, low-voltage high-efficiency power supply, automatic heat dissipation, Energy saving and environmental protection
Product selling points
The LED display has become a carrier of information dissemination. It can be said that it runs through various fields that need to display information dissemination, from small outdoor and indoor advertising displays to conference halls and families, to large government units, schools, and prosperous places. The LED display has many advantages such as safe use, environmental protection, low power consumption, long life, high brightness, large viewing angle, long viewing distance, etc., and is easy to assemble and maintain.
Product selling points
The color and size of the glass can be customized to meet the needs of different on-site applications, enhancing the technological informatization of the government affairs hall. It can be connected to the calling machine to display the calling information in real time, or it can be used alone.
