| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | CE-EMC, CE-LVD, RoHS, ETL, FCC |
| Model Number: | D-LP4.8 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Flight Case |
| Delivery Time: | 15days |
| Payment Terms: | T/T,, L/C |
| Supply Ability: | 1,000sqm/month |
| Pixel Pitch: | 4.81mm | LEDs: | SMD 3in1 |
|---|---|---|---|
| Service: | Front/Rear | Module Size: | 250mmx250mm |
| Panel Size: | 500mmx100mm | Cabinet Material: | Aluminium |
| Highlight: | stage screen rental,rental led display screen |
||

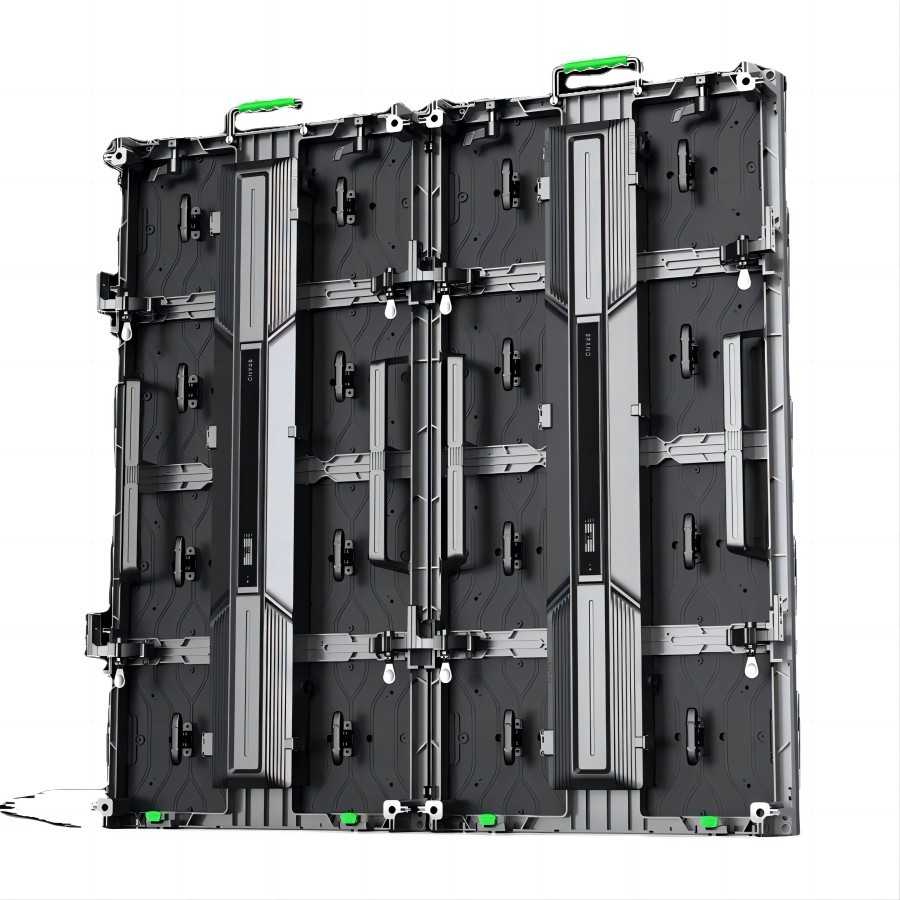

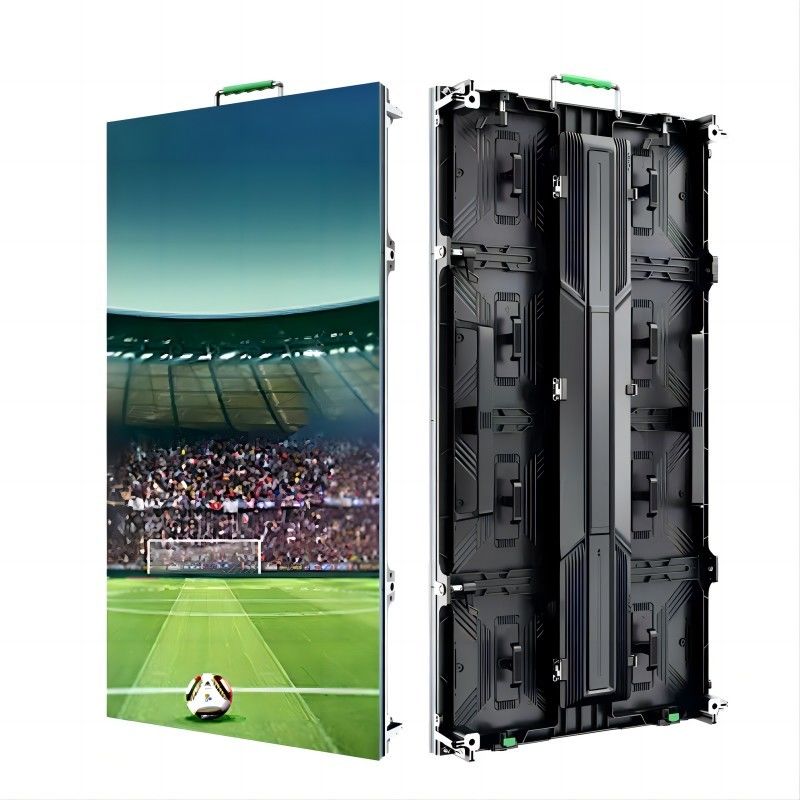

Waterproof P4.81mm High Brightness Outdoor Stage Rental LED Display Panel
Quick Details:
- Pixel Pitch: 4.81mm, SMD LEDs.
- Full colors: 281trillions.
- Wide viewing angle
- Standard cabinet size: 500×1000x80mm with magnetic module front service.
- IP65 waterproof
- High refresh rate 3840hz
Features:
- Meet seamless assembling between modules;
- With high Precision ability ensure panel joint perfectly;
- Light weight ensure installation &dismantling conveniently&quickly during event rental;
- Smart lock design meet cost and labor-saving;
- Located beam made with precise position be easy to install;
- Built-in magnet adsorption is easy to install;

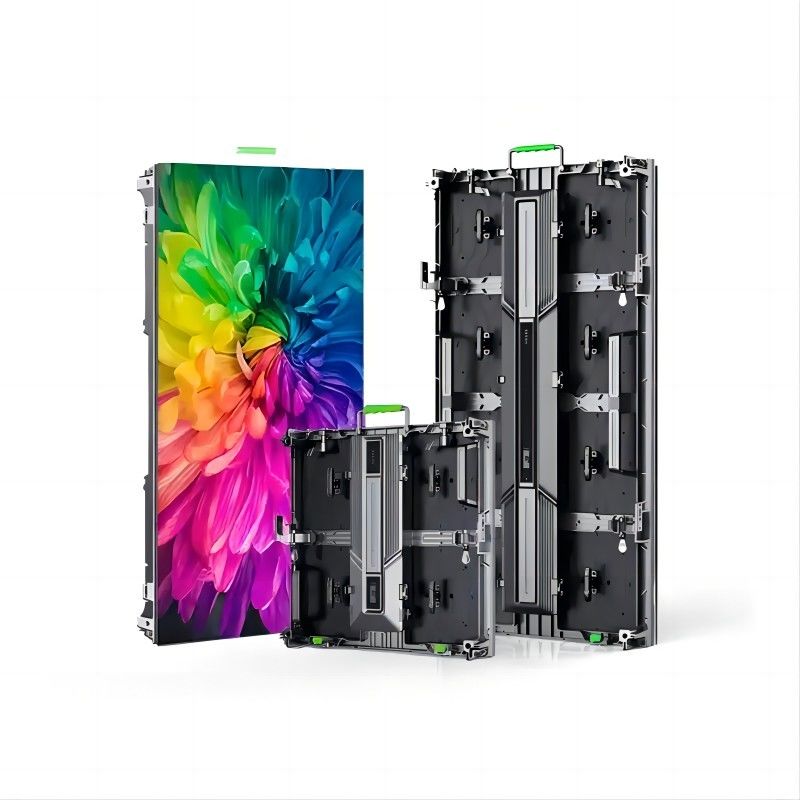

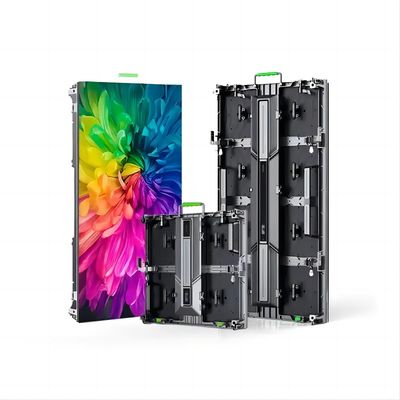

- Many kinds of stitching,various combination between 500*500&1000*500unit size;

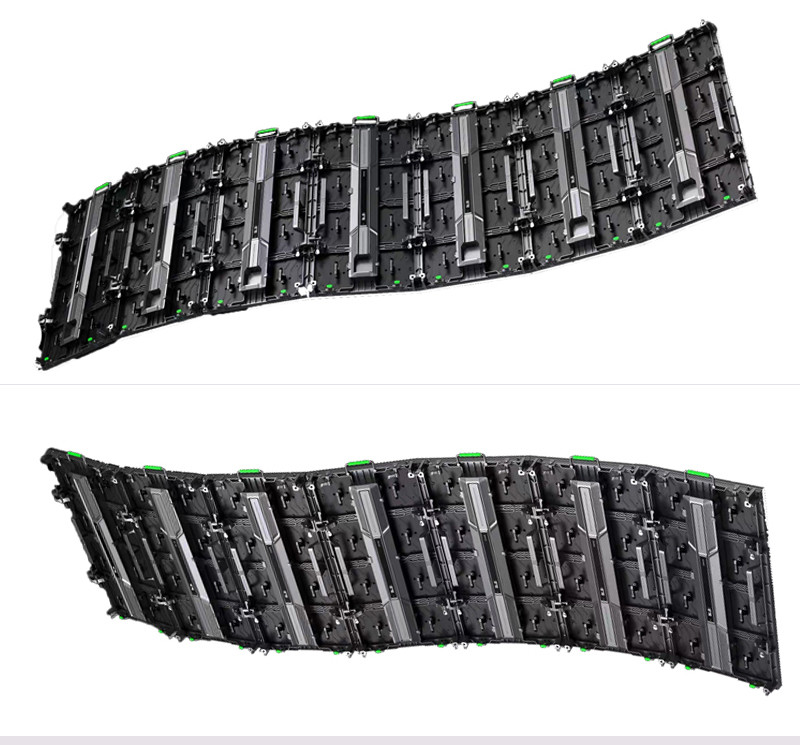

- Compatible curve locks and normal ones changed.true universal panel to help cost saving.
Parameters:
| Model | D-LP2.6 | D-LP2.9 | D-LP3.9 | D-LP4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 |
| Modules Per Cabinet (W x H) | 2 x 4 | 2 x 4 | 2 x 4 | 2 x 4 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 384 | 168 x 336 | 128 x 256 | 104 x 208 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 15kg | 15kg | 15kg | 15kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 280 W /Sqm | 260 W /Sqm | 250 W /panel | 220 W /panel |
| Max Power Consumption | 680 W /Sqm | 650 W /Sqm | 620 W /panel | 600 W /panel |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
Application:
Stage Rental LED Displays are usually used for stage background of live shows, advertising and broadcasting in operas, cinemas, concert hall, bars and so on.
