Front/Rear Service Indoor 500X500mm Movable Stage Events Using LED Display

Front/Rear Service Indoor 500X500mm Movable Stage Events Using LED Display
Front/Rear Service Indoor 500X500mm Movable Stage Events Using LED Display
Front/Rear Service Indoor 500X500mm Movable Stage Events Using LED Display Front/Rear Service Indoor 500X500mm Movable Stage Events Using LED Display Front/Rear Service Indoor 500X500mm Movable Stage Events Using LED Display Front/Rear Service Indoor 500X500mm Movable Stage Events Using LED Display
Basic Information
Place of Origin: China
Brand Name: Conwin LED Display
Certification: CE-EMC, CE-LVD, RoHS, ETL, FCC
Model Number: Di-LU2.6, Di-LU2.9, Di-LU3.9, Di-LU4.8
Minimum Order Quantity: 1sqm
Price: Negotiable
Packaging Details: Flight Case/Wooden box
Delivery Time: 15days
Payment Terms: T/T, L/C
Supply Ability: 1000sqm/month
Contact Now
Pixel: P2.604mm, P2.976mm, P3.91mm, P4.81mm Weight: 7.5kg
Cabinet Size: 500x500mm Refresh: 3840hz
Maintenance: Front/Rear Material: Die Cast Aluminum
Highlight:

rental led display screen

,

led display hire

Front/Rear Service Indoor 500X500mm Movable Stage Events Using LED Display

Widely used for stage, events, live broadcasting etc.


Features and Advantages:

- 4K HD Display Excellent Visual Effects

  Ultra-high dynamic contrast and high-quality display, ultra-high-definition perfect picture quality, bring you unprecedented visual enjoyment.
  easily attract attention, greatly enhance the value of advertising.

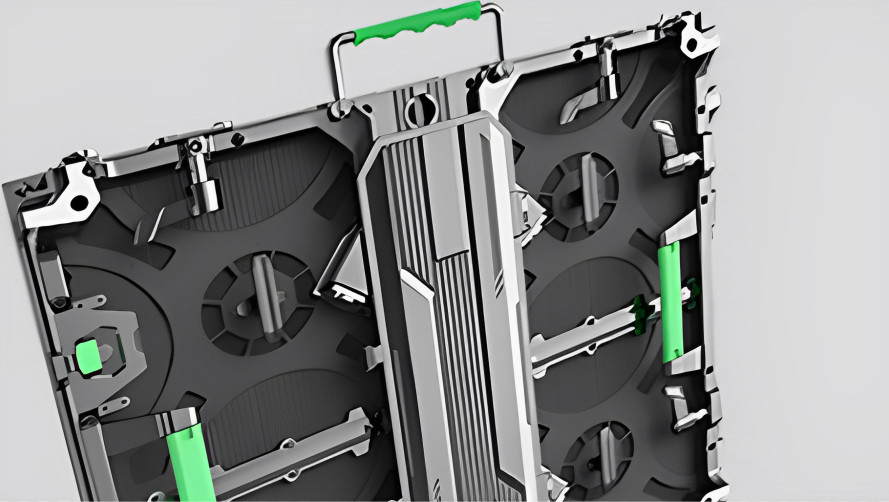

- Precise Cabinet Structural Design

  With the High-precision cast aluminum material, perfect splicing without gaps. Fast locking makes assembly and disassembly extremely easy.

  High-quality aviation plugs ensure reliability.

- Magnetic Module For Quick Maintenance

  The aluminum cabinet’s rear control system used a snap-in design, maintenance and installation is more efficient and convenient.

- Easily Adjusted Angle Lock

 The Cabinet can be arc-shaped connected, with its own angle adjustment device, can achieve positive and negative 10 degrees of adjustment to meet the different arc connection requirements.

Front/Rear Service Indoor 500X500mm Movable Stage Events Using LED Display 0

- Canbinet side lockers

  Fast installation, lockers on the top and bottom of cabinet.

Front/Rear Service Indoor 500X500mm Movable Stage Events Using LED Display 1Front/Rear Service Indoor 500X500mm Movable Stage Events Using LED Display 2

Front/Rear Service Indoor 500X500mm Movable Stage Events Using LED Display 3



Parameters:

Model Di-LU2.6 Di-LU2.9 Di-LU3.9 Di-LU4.8
Pixel Pitch 2.604mm 2.976mm 3.91mm 4.81mm
Pixel Configuration SMD1415 SMD1415 SMD1921 SMD1921
Pixel Density 147,456 pixels/m2 112,896 pixels/m2 65,536 pixels/m2 43,264 pixels/m2
Module Dimensions (W x H) (mm) 250 x 250 250 x 250 250 x 250 250 x 250
Panel Dimensions (mm) 500 x 500 x 80 500 x 500 x 80 500 x 500 x 80 500 x 500 x 80
Modules Per Cabinet (W x H) 2 x 2 2 x 2 2 x 2 2 x 2
Module Resolution 96 x 96 84 x 84 64 x 64 52 x 52
Cabinet Resolution 192 x 192 168 x 168 128 x 128 104 x 104
Panel Material Die Cast Aluminum Die Cast Aluminum Die Cast Aluminum Die Cast Aluminum
Weight per Cabinet 7.5kg 7.5kg 7.5kg 7.5kg
Colours 281 trillion 281 trillion 281 trillion 281 trillion
Contrast Ratio 5,000 : 1 5,000 : 1 5,000 : 1 5,000 : 1
Average Power Consumption 200 W /Sqm 200 W /Sqm 200 W /Sqm 200 W /Sqm
Max Power Consumption 600 W /Sqm 600 W /Sqm 600 W /Sqm 600 W /Sqm
Brightness >1,000 nits >1,000 nits >1,000 nits >1,000 nits
Refresh Rate >3,840Hz >3,840Hz >3,840 Hz >3,840 Hz
Vertical Viewing Angle 160° 160° 160° 160°
Horizontal Viewing Angle 160° 160° 160° 160°
Expected Lifetime 100,000 Hrs 100,000 Hrs 100,000 Hrs 100,000 Hrs
Servicing Front/Rear Front/Rear Front/Rear Front/Rear
IP Rating (Front/Rear) IP 43 IP 43 IP 43 IP 43
Operating Temp/Humidity -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90%
Storage Temp/Humidity -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90%

Pictures:

Front/Rear Service Indoor 500X500mm Movable Stage Events Using LED Display 4

Front/Rear Service Indoor 500X500mm Movable Stage Events Using LED Display 5

Front/Rear Service Indoor 500X500mm Movable Stage Events Using LED Display 6

Our Services

1. 20 Years professional led display manufacturer

2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price

4. OEM and ODM service
5. Customizable product upon request
