| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | CE-EMC, CE-LVD, RoHS, ETL, FCC |
| Model Number: | D-YD3.9 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Flight Case |
| Delivery Time: | 15days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000sqm/month |
| Pixel: | 3.91mm | Thickness: | 80mm |
|---|---|---|---|
| Cabinet Size: | 500x500mm | Module Size: | 250mmx250mm |
| Contrast: | 5000:1 | Material: | Die Cast Aluminum |
| Highlight: | stage screen rental,rental led display screen |
||
500x500mm Outdoor P3.91mm Die-casting Aluminum Stage Rental Led Display
Application:
Features and Advantages:
- One person can do installation and disassembly
Handle and fast lock design enable fast and convenient installation and disassembly, one person can handle it all.
- One person maintenance
Light weight cabinet, 8kg per panel, easy to handle
Front service design, easy maintenance.
- One panel available for concave and convex curves
Patented high precision curving blocks support concave curve screen
- Seamless Design
Every Panel is manufactured with CNC auto-machines of high precision so that to guarantee its seamlessness during assembly.
- User-friendly maintenance
The die-casting aluminum panel employs modular design. Modules and power box can all be maintained conveniently from the front or rear according to requirements.
Parameters:
| Model | D-YD2.9 | D-YD3.9 | D-YD4.8 |
| Pixel Pitch | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions(W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 |
| Modules Per Cabinet (W x H) | 2 x 2 | 2 x 2 | 2 x 2 |
| Module Resolution | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 168 x 168 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 7.5kg | 7.5kg | 7.5kg |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 250 W /Sqm | 220 W /panel | 200 W /panel |
| Max Power Consumption | 650 W /Sqm | 620 W /panel | 600 W /panel |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |

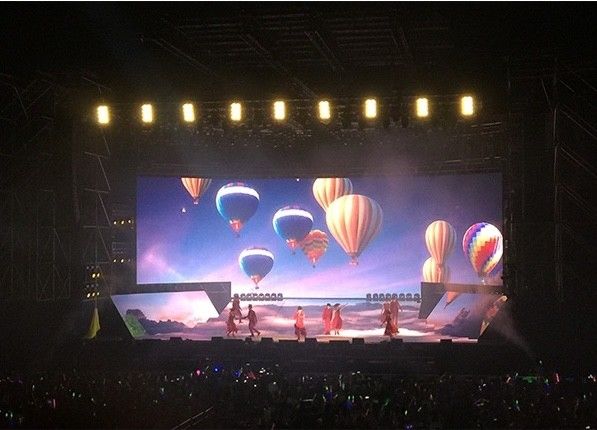

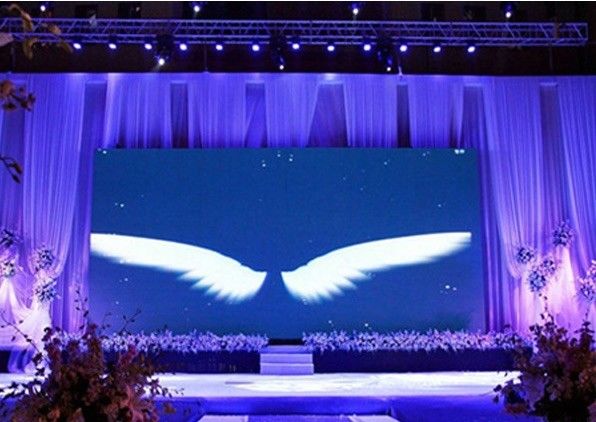

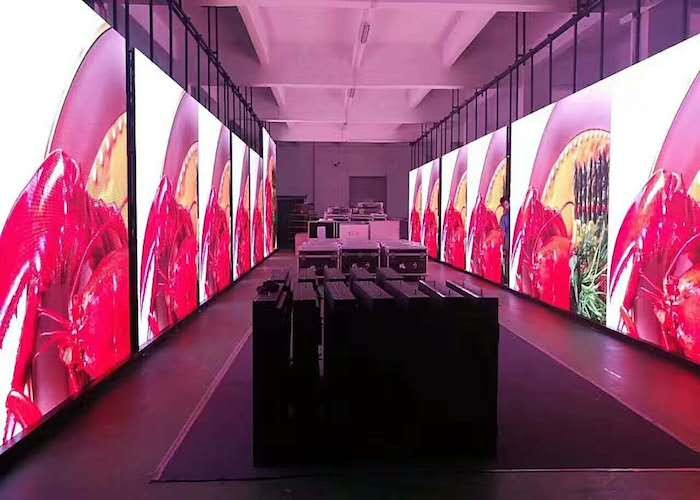

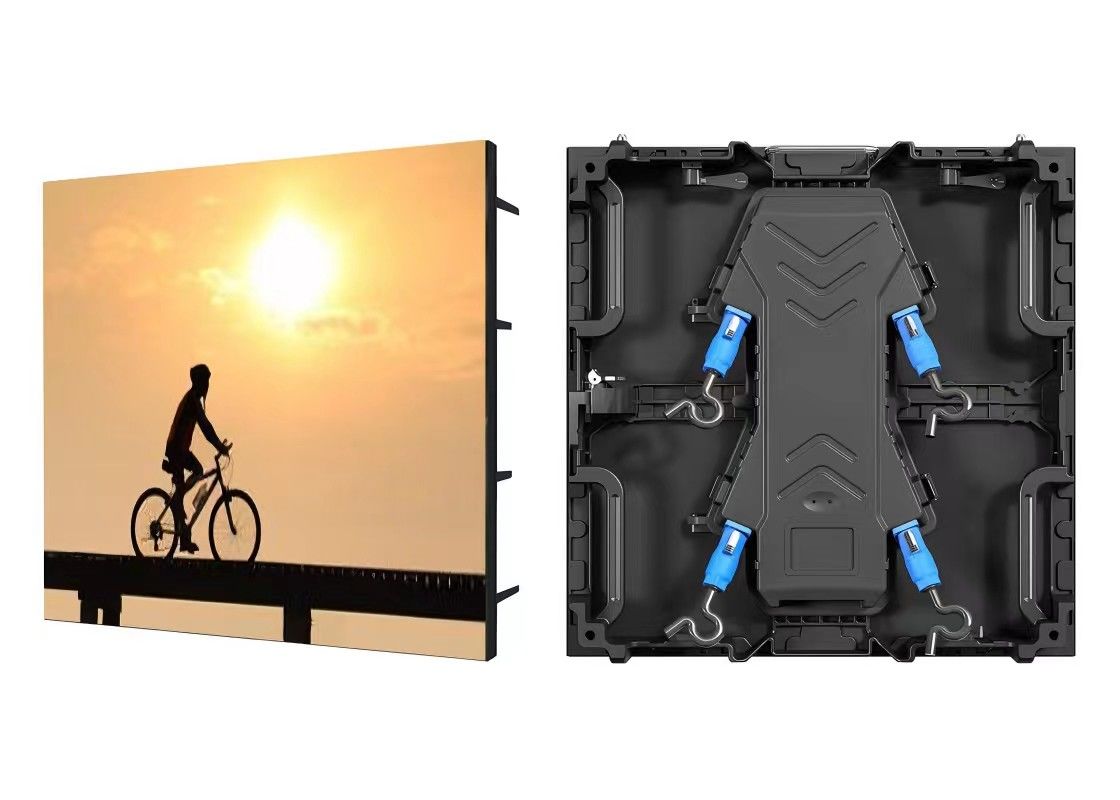

Pictures:
