| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | CE-EMC, CE-LVD, RoHS, ETL, FCC |
| Model Number: | D-YB4.8 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Flight Case |
| Delivery Time: | 15days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000sqm/month |
| Pixel: | 4.8mm | Thickness: | 80mm |
|---|---|---|---|
| Cabinet Size: | 500x1000mm | Module Size: | 250mmx250mm |
| Contrast: | 5000:1 | Material: | Die Cast Aluminum |
| Highlight: | stage screen rental,rental led display screen |
||

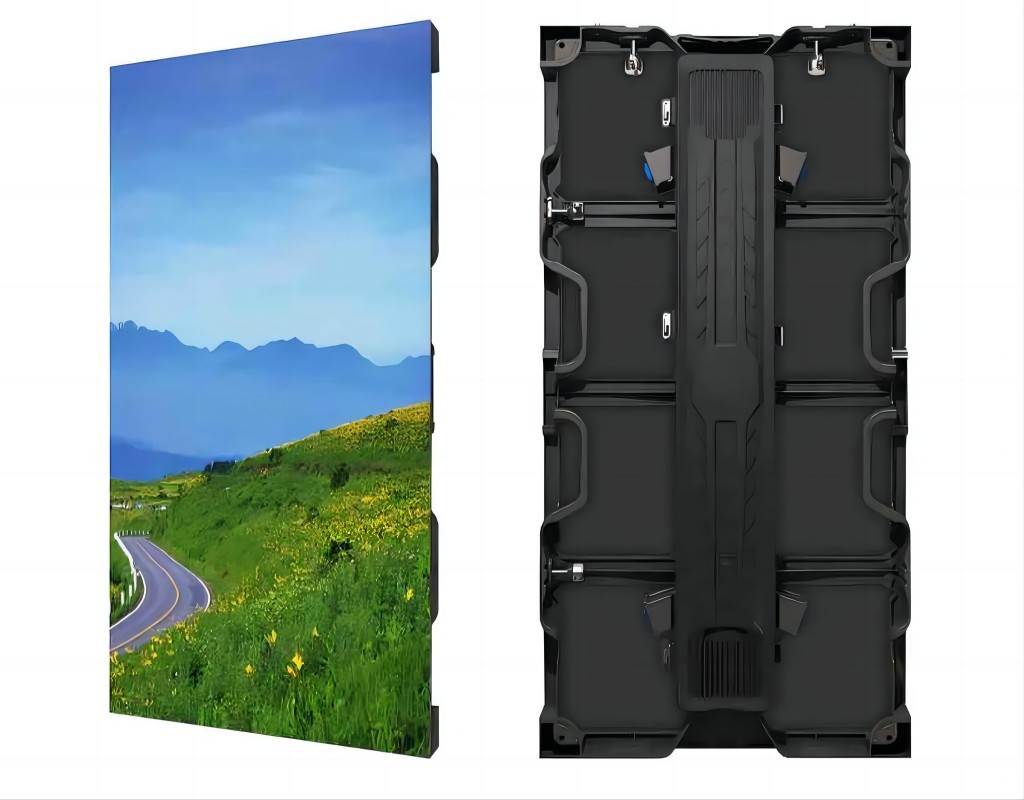

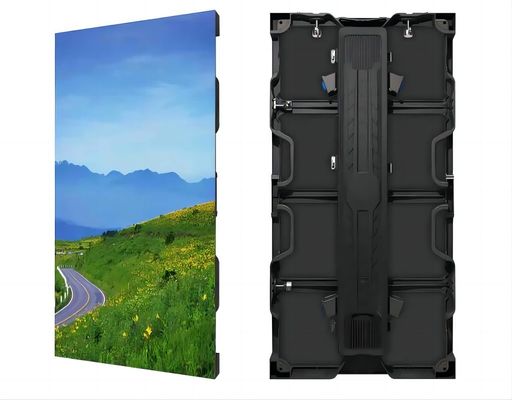

Outside Stage Rental Led Display Pixel Pitch P4.81mm With 80mm Thin Cabinet
Quick Details:
- Pixel Pitch: 4.81mm, SMD.
- Full colors: 281trillions.
- Wide viewing angle: 160°/ 160°.
- Contrast ratio: 5000:1
- Standard cabinet size: 500x1000x80mm, light weight
- IP65 Waterproof, reliable for outdoor use.
Features and Advantages:
- High brightness SMD LED is used for outdoor led display, keeps the display visible even when facing the strong sunshine directly.
- With Anti-UV ray mask, the color of the mask would never change even if under exposure of UV ray.
- Weatherproof design, IP65 rated.
- Super easy for assembling and connection.
- High color uniformity and clear image create a vivid audio visual effect.
- The LED Chips have the advantages of large viewing angle, low power consumption and good color uniformity.
- Use the same level of red, green and blue led chips, which makes excellent and uniform image display
Parameters
| Model | D-YB2.9 | D-YB3.9 | D-YB4.8 |
| Pixel Pitch | 2.976mm | 3.91mm | 4.81mm |
| Pixel Density | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions(W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 |
| Modules Per Cabinet (W x H) | 2 x 4 | 2 x 4 | 2 x 4 |
| Module Resolution | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 168 x 336 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 15kg | 15kg | 15kg |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 260 W /Sqm | 250 W /Sqm | 220 W /Sqm |
| Max Power Consumption | 650 W /Sqm | 620 W /Sqm | 600 W /Sqm |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >=3,840Hz | >=3,840Hz | >=3,840Hz |
| Vertical Viewing Angle | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
