| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | CE-EMC, CE-LVD, RoHS, ETL, FCC |
| Model Number: | D-YD4.8 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Flight Case |
| Delivery Time: | 15days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000sqm/month |
| Pixel: | 4.81mm | Color: | Full Color |
|---|---|---|---|
| LEDs: | SMD 3in1 | Module Size: | 250mmx250mm |
| Module Pixel: | 52x52 | Cabinet Material: | Aluminium |
| Highlight: | stage screen rental,rental led display screen |
||
Light Weight Outdoor Stage Rental Led Display P4.8mm LED Panel 500X500mm
Quick Details:
1, Pixel Pitch: 4.81mm.
2, RGB Full colors: 281trillions.
3, SMD LEDs, Wide viewing angle: 160°/ 160°.
4, Standard cabinet size: 500×500x80mm
5, IP65 Waterproof.
D-YD series rental LED display include outdoor rental led screen: P2.6mm, P2.976mm, P3.91mm, P4.81mm and P5.95mm ,P3.91mm and P4.81mm are the best-selling types.
Features:
- Thin and light, weight only 7.5kg for 500x500mm cabinet, 14kg for 500x1000mm cabinet, thickness only 8cm, can be lifted with only one hand.
- Fast assembling and easy installation with handle and fast lock design, quick within 8seconds.
- High refresh rate 3840Hz, no strips for camera shooting.
- Smart design one person can do installation and disassembly
Handle and fast lock design enable fast and convenient installation and disassembly, one person can handle it all.
Parameters:
| Model | D-YD2.9 | D-YD3.9 | D-YD4.8 |
| Pixel Pitch | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions(W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 |
| Modules Per Cabinet (W x H) | 2 x 2 | 2 x 2 | 2 x 2 |
| Module Resolution | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 168 x 168 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 7.5kg | 7.5kg | 7.5kg |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 250 W /Sqm | 220 W /Sqm | 200 W /Sqm |
| Max Power Consumption | 650 W /Sqm | 620 W /Sqm | 600 W /Sqm |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |

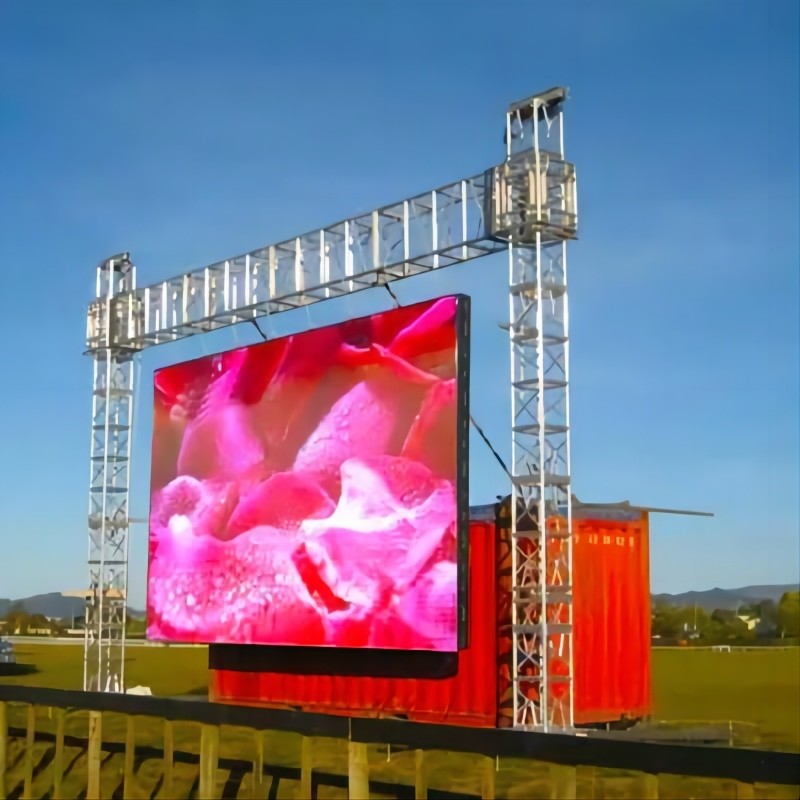

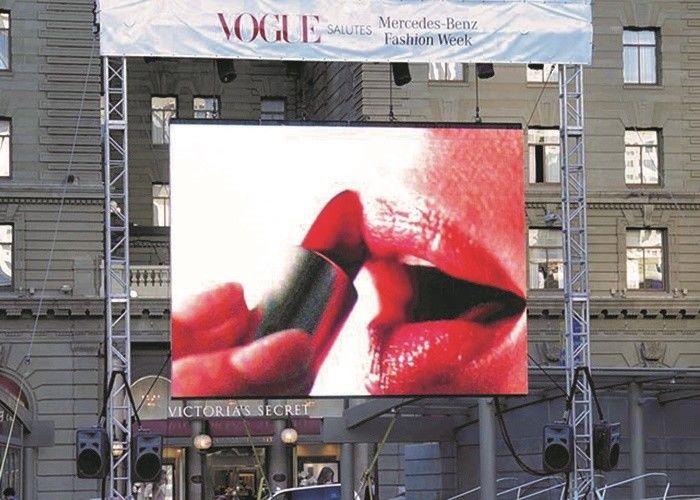

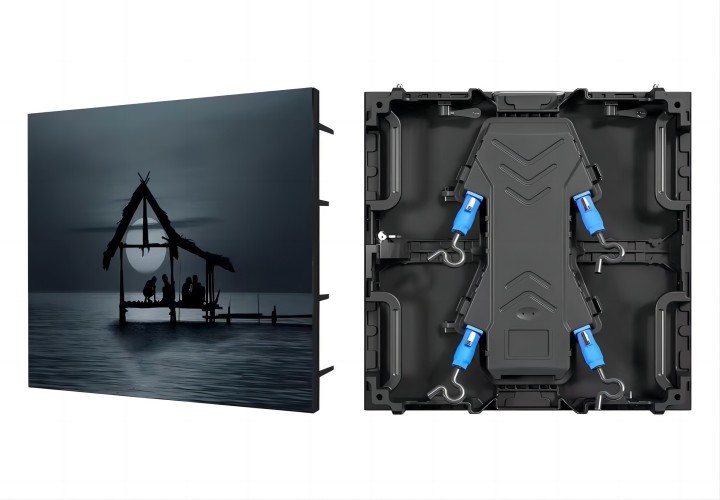

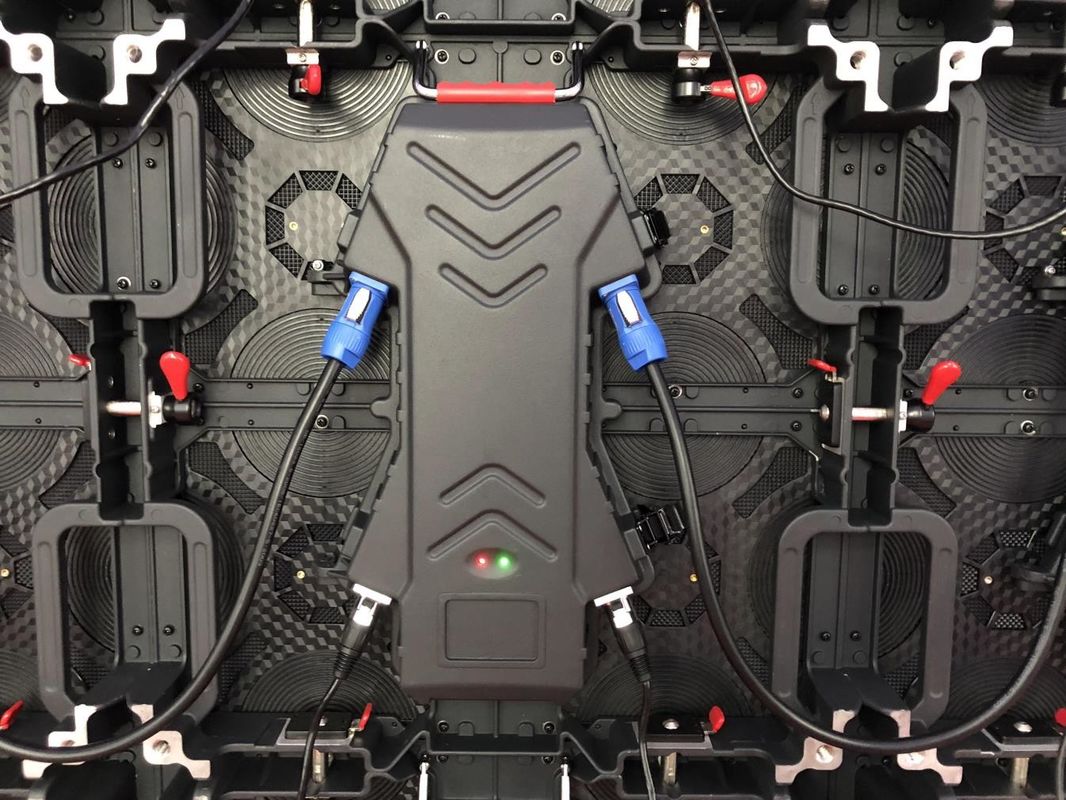

Pictures:
