| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | CE-EMC, CE-LVD, RoHS, ETL, FCC |
| Model Number: | D-YD5.9 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Flight Case |
| Delivery Time: | 15days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000sqm/month |
| Pixel: | P5.95mm | Scan: | 1/7 Scan |
|---|---|---|---|
| Module Size: | 250mmx250mm | Module Pixel: | 42x42 |
| Cabinet Material: | Die-casting Aluminum | Warranty: | 3years |
| Highlight: | rental led display screen,led display hire |
||
High Brightness Stage Rental LED Display P5.95 Outdoor Lightweight Panel
Quick Details:
- Pixel Pitch: 5.95mm.
- SMD LEDs, large viewing angle: 160°/ 160°.
- Full colors: 281trillions.
- IP65 waterproof for outdoor use.
- Standard cabinet size: 500×500x80mm, 500x1000x80mm.
- Recommended minimum viewing distance: 6m.
D-YD series stage rental LED display include outdoor rental led screen: 2.6mm, 2.976mm, 3.91mm, 4.81mm, 5.9mm
Stage Rental LED Displays are usually used for stage background of live shows, advertising and broadcasting in operas, theater, church, concert hall, museum, auditorium, bars and so on.
- Super-light weight and Ultra-thin: only 7.5kg in weight for 500x500mm panel, 80mm thickness, can be lifted with only one hand.
- With fast lock system, easy to install and dismantle, quick within 8seconds.
- High refresh rate 3840Hz, no strips for camera shooting.
- Flexible installation, can be stacked on floor or hung on truss.
Parameters:
| Model | D-YD5.9 | D-YD3.9 | D-YD4.8 |
| Pixel Pitch | 5.95mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD2020 | SMD1921 | SMD1921 |
| Pixel Density | 28,224 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions(W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 |
| Modules Per Cabinet (W x H) | 2 x 2 | 2 x 2 | 2 x 2 |
| Module Resolution | 42 x 42 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 84 x 84 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 7.5kg | 7.5kg | 7.5kg |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /Sqm | 200 W /Sqm |
| Max Power Consumption | 650 W /Sqm | 650 W /Sqm | 650 W /Sqm |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |

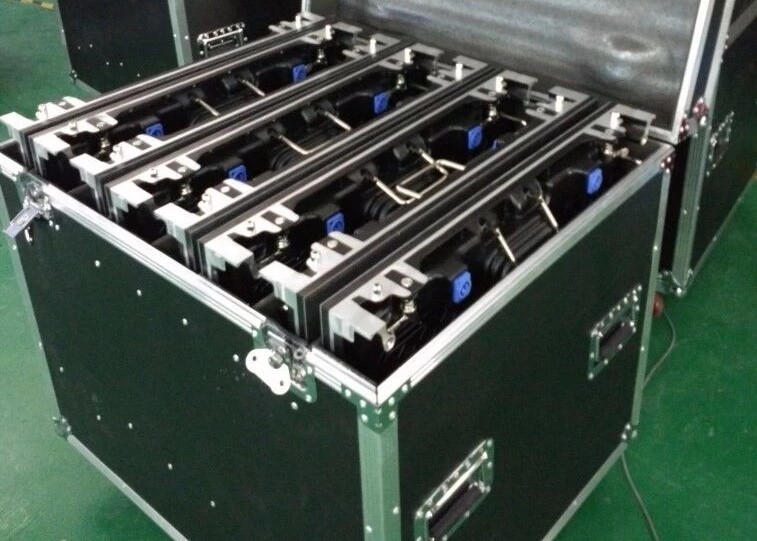

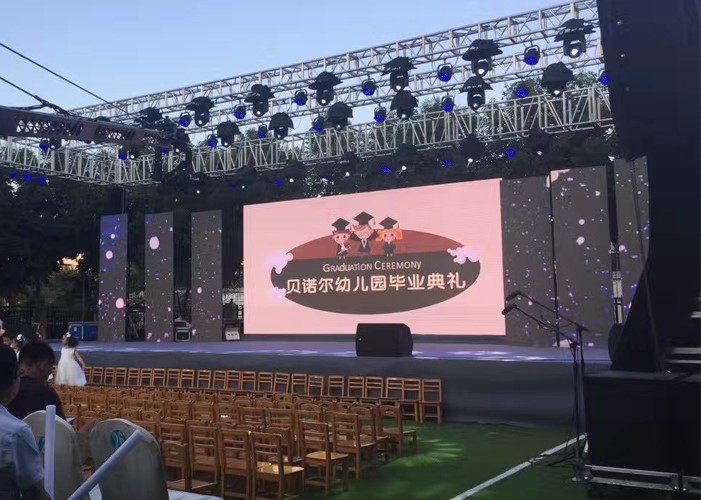

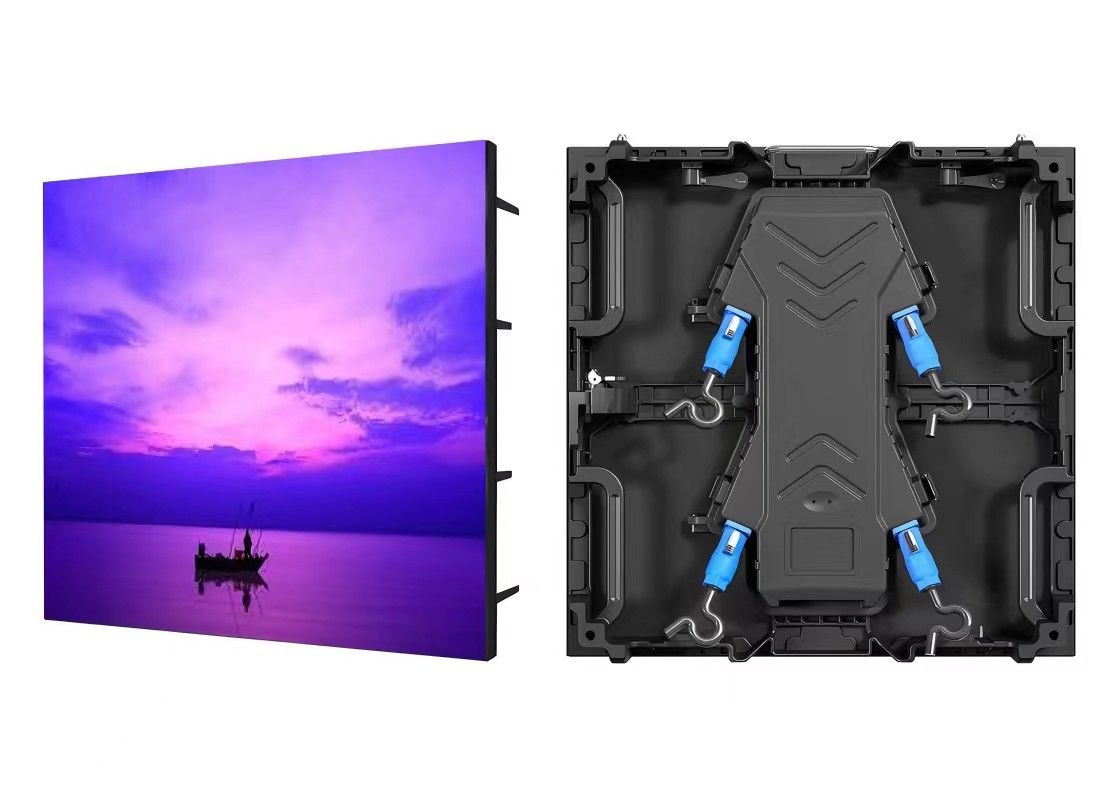

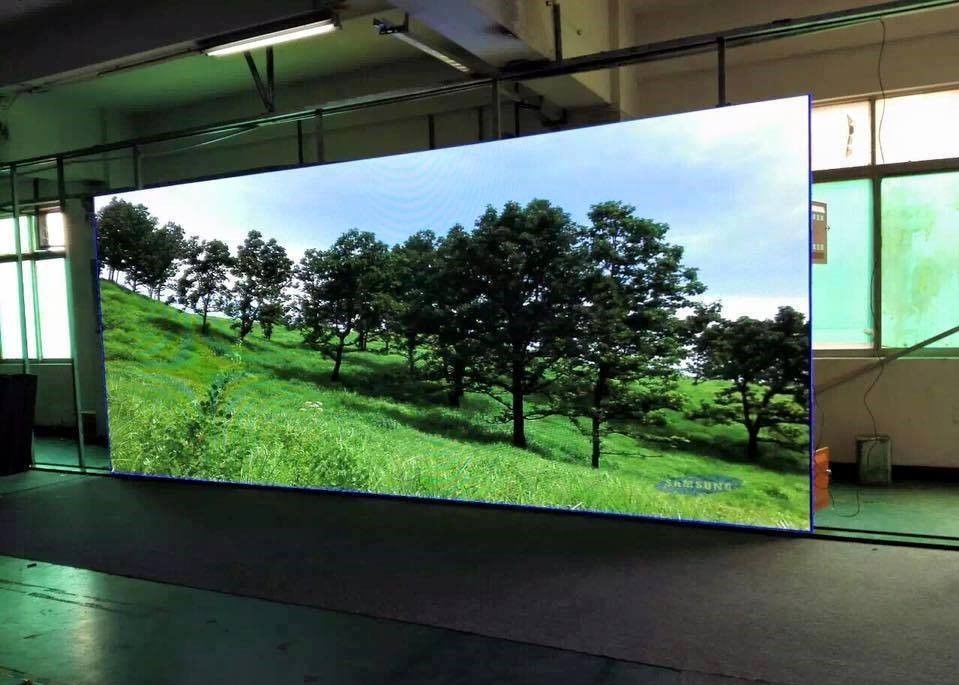

Pictures:
