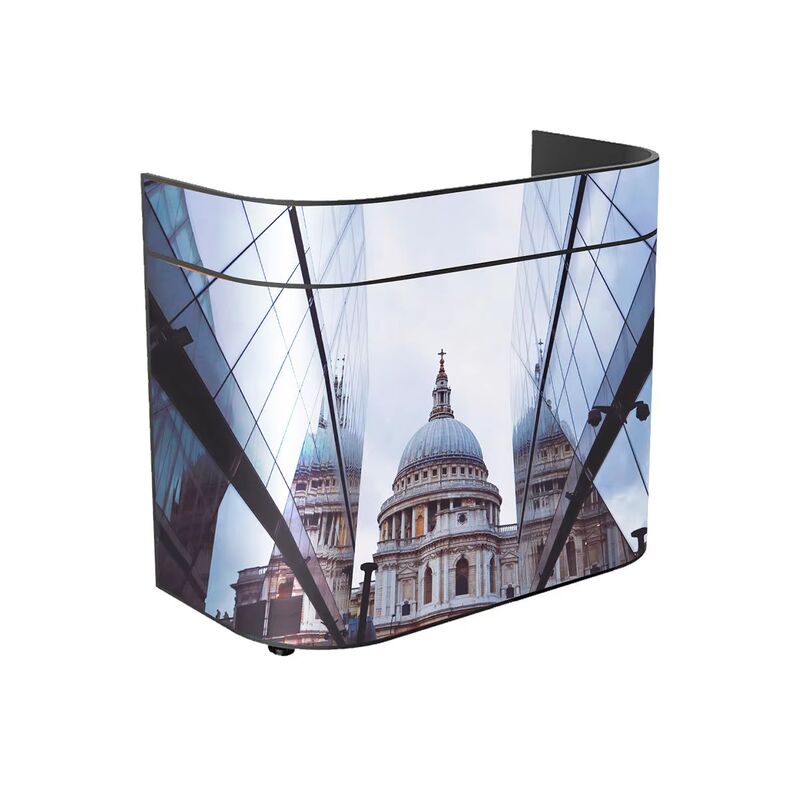

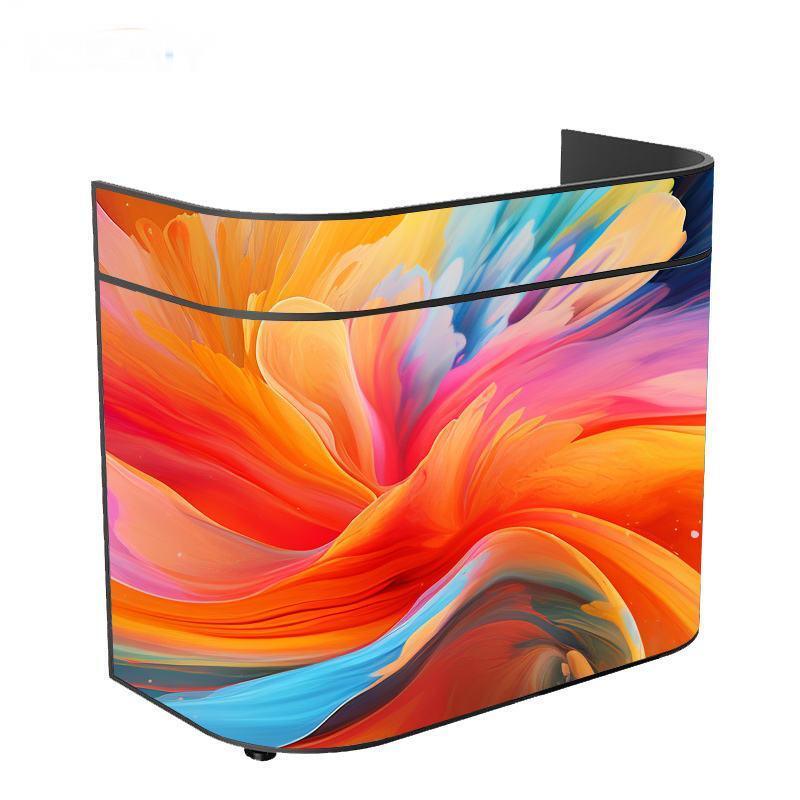

ELLIPSETABLE EDGECURVED LED DISPLAY TABLE

ELLIPSETABLE EDGECURVED LED DISPLAY TABLE
ELLIPSETABLE EDGECURVED LED DISPLAY TABLE ELLIPSETABLE EDGECURVED LED DISPLAY TABLE ELLIPSETABLE EDGECURVED LED DISPLAY TABLE ELLIPSETABLE EDGECURVED LED DISPLAY TABLE
Basic Information
Place of Origin: CHINA
Brand Name: CONWIN
Certification: CE,ROHS
Model Number: M100
Minimum Order Quantity: 1sqm
Packaging Details: wooden box or carton
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000sqm/month
Contact Now

Front Desk LED Display OEM for Conferences Presentations Full Self-Service Business CMS



Features:

ELLIPSETABLE EDGECURVED LED DISPLAY TABLE Not just a desk, but a feast for the eyes.

Remote Control
Support remote control from computers,mobilephones, and iPads. Support USB, SD, Wi-Fi and 4Gtransmission methord

Flexible led module 320x160mm, GOB protection

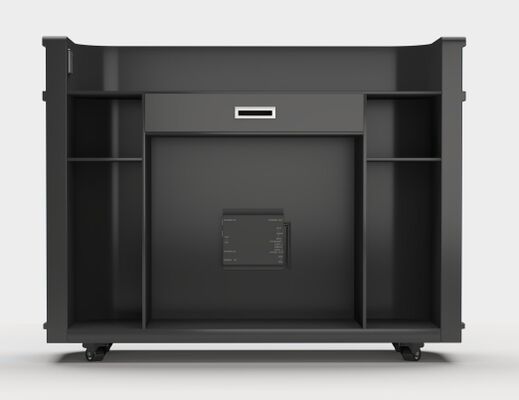

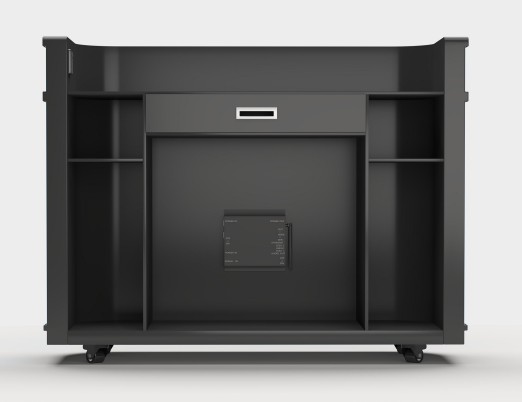

Bottom wheels design:The wheels can also adjust in height.This allows for compensation when the ground is uneven.

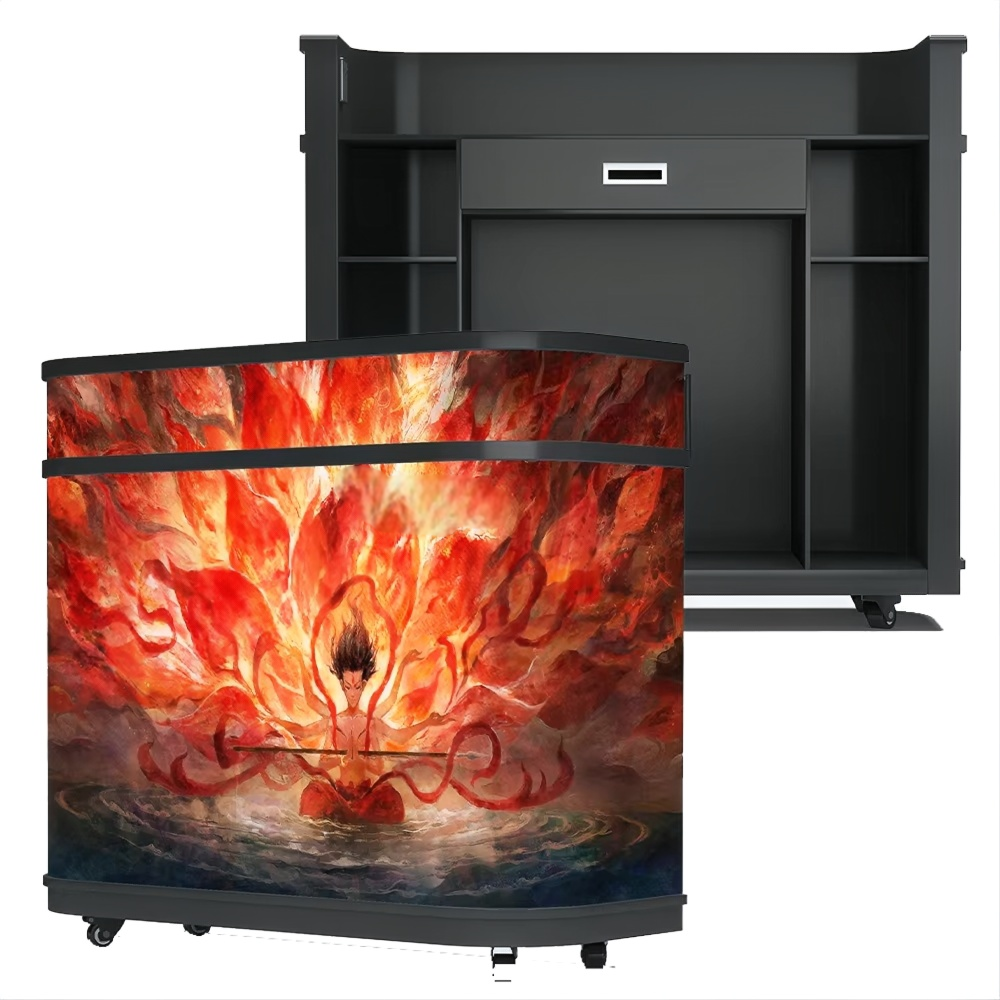

Easy screen transportation design:The side -detachable design of the flight case simplifies packing andmobility for our screen, making every move a breeze





ELLIPSETABLE EDGECURVED LED DISPLAY TABLE 0
ELLIPSETABLE EDGECURVED LED DISPLAY TABLE 1
ELLIPSETABLE EDGECURVED LED DISPLAY TABLE 2
ELLIPSETABLE EDGECURVED LED DISPLAY TABLE 3
ELLIPSETABLE EDGECURVED LED DISPLAY TABLE 4
ELLIPSETABLE EDGECURVED LED DISPLAY TABLE 5
ELLIPSETABLE EDGECURVED LED DISPLAY TABLE 6
ELLIPSETABLE EDGECURVED LED DISPLAY TABLE 7
ELLIPSETABLE EDGECURVED LED DISPLAY TABLE 8
ELLIPSETABLE EDGECURVED LED DISPLAY TABLE 9
ELLIPSETABLE EDGECURVED LED DISPLAY TABLE 10

Item
Parameters
Parameters
Parameters
Model
P1.86 GOB
P2 GOB
P2.5GOB
Pixel Pitch(mm)
1.86
2
2.5
Physical Density (dot/sqm)
532512
460800
294912
LED Configuration
1RGB
1RGB
1RGB
LED Type
GOB
GOB
GOB
Module Size (mmxmm)
320x160
320x160
320x160
Module Resolution (PXxPX)
172x86
160x80
128x64
Brightness(cd/sqm)
1000-1100
1000-1100
1000-1050
Refresh Rate(Hz)
3840z
3840z
3840z
Drive Mode
Constant Current Drive
Constant Current Drive
Constant Current Drive
Horizontal Viewing Angle(Deg)
170
170
170
Vertical Viewing Angle(Deg)
170
170
170
Cabinet Resolution(PXxPX)
1032x516
960x480
768x384
Cabinet Max Power Consumption(w)
700
700
700
Cabinet Average Power Consumption(w)
600
600
600
Cabinet Size(mmxmm)
1065x585x1100
1065x585x1100
1065x585x1100
Cabinet Thickness(mm)
60mm
60mm
60mm
Cabinet Material
Die-casting Aluminum
Die-casting Aluminum
Die-casting Aluminum
Color(M)
16.7
16.7
16.7
Input Voltage
AC100V-240V +/-10%
AC100V-240V +/-10%
AC100V-240V +/-10%
Refresh Frame Frequency(Hz)
50-60
50-60
50-60
Protection Level
IP43
IP43
IP43
Working Environment
Indoor
Indoor
Indoor
Working Temperature(℃)
-40℃-60℃
-40℃-60℃
-40℃-60℃
Storage Humidity(RH)
40%-60%
40%-60%
40%-60%
Life Span(H)
100,000
100,000
100,000
