High Brightness Flexible Transparent LED Mesh Screen Display P40 P50 P55mm

High Brightness Flexible Transparent LED Mesh Screen Display P40 P50 P55mm
High Brightness Flexible Transparent LED Mesh Screen Display P40 P50 P55mm High Brightness Flexible Transparent LED Mesh Screen Display P40 P50 P55mm High Brightness Flexible Transparent LED Mesh Screen Display P40 P50 P55mm High Brightness Flexible Transparent LED Mesh Screen Display P40 P50 P55mm
Basic Information
Place of Origin: China
Brand Name: CONWIN
Certification: CE,ROHS
Model Number: M50
Packaging Details: wooden box or carton
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000sqm/month
Contact Now
Pitch: 50mm Display Function: Video,picture,Outdoor,text,graphics
Power Per SQM: 12W Weight Per SQM: 1.1KG
Protection Level: IP67 Life Span: ≥1000000H
Power Supply: 110V~240V AC Viewing Angle: 140 Degree
Highlight:

Flexible Transparent LED Mesh Screen

,

High Brightness Transparent LED Mesh Screen

,

P55mm Transparent LED Mesh Screen

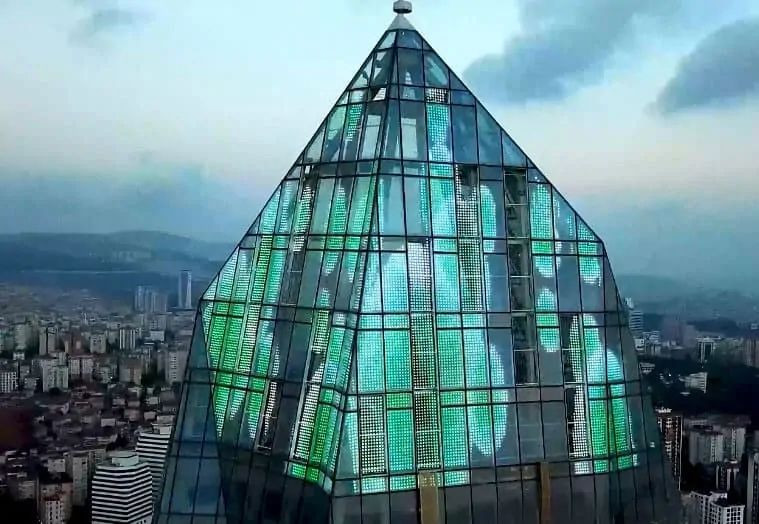

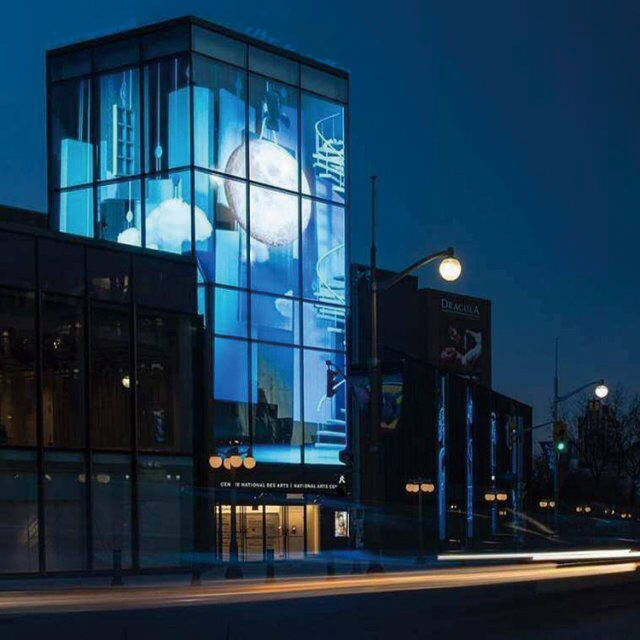

Applications
High Brightness Flexible Transparent LED Mesh Screen Display P40 P50 P55mm 0
Products Description

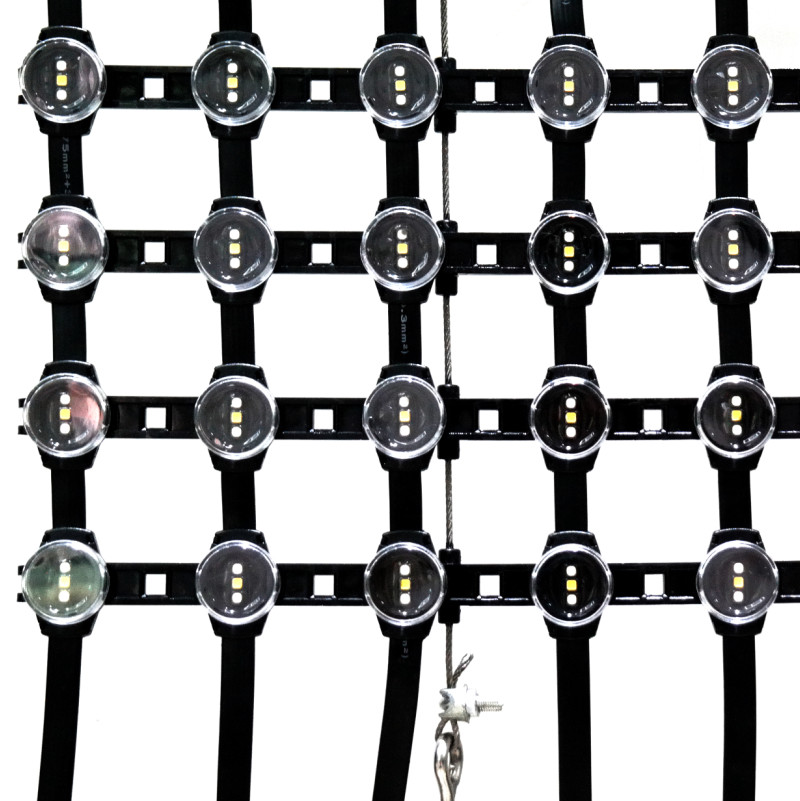

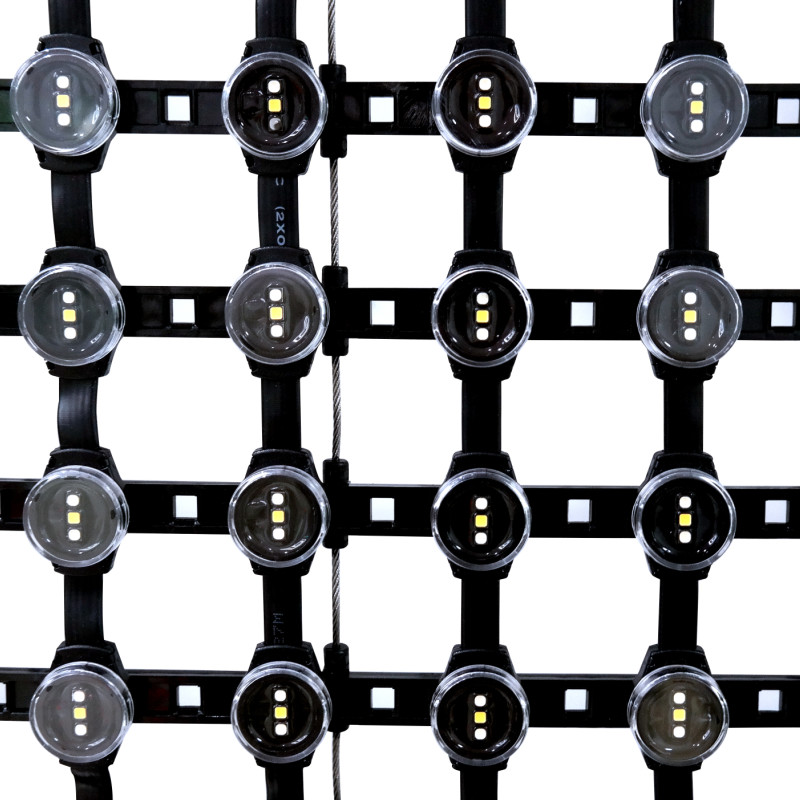

High Brightness P40 P50 P55mm Flexible Transparent LED Mesh Screen Display Transparent LED Screen

1. Bigger diameter of the point light source to support power supply and signal transmission for longer distance.
2. Flexible installation method: the product has small size and light weight, with steel wire rope the installation methods are diverse.
3. Support uninterrupible transmission of dead pixels: even if one of the pixels damaged, the signal reception of subsequent pixels won 't be affeced, which will minimize the product faliure rate.
4. Multiple pixel pitches optional, to help save project cost.

Pixel Pitch
50mm
100mm
Pixel Density
400dot/㎡
100dot/㎡
Panel Size
W0.5*H2m/set / custom
W0.5*H2m /set / custom
Brightness
4500cd/㎡
2000cd/㎡
Max Power Consumption
72W/㎡
18W/㎡
Ave. Power Consumption
28.8W/㎡
7.2W/㎡
Transparency
80%
90%
Panel Weight
1kg/㎡
0.5kg/㎡
Unit Consumption
0.18W
Gray Scale
8bit/16bit
Waterproof Grade
IP67
Lifespan
≥50000H
Operating Temperature
-20°~ +50°
Storage Temperature
-40°~ +70°
Power Source
110V~220V
Input Voltage
5V
Viewing Angle
120°
TCP
WS2811/UCS1903
Warranty
2 Year



Details Images
High Brightness Flexible Transparent LED Mesh Screen Display P40 P50 P55mm 1
High Brightness Flexible Transparent LED Mesh Screen Display P40 P50 P55mm 2
High Brightness Flexible Transparent LED Mesh Screen Display P40 P50 P55mm 3
High Brightness Flexible Transparent LED Mesh Screen Display P40 P50 P55mm 4
High Brightness Flexible Transparent LED Mesh Screen Display P40 P50 P55mm 5
High Brightness Flexible Transparent LED Mesh Screen Display P40 P50 P55mm 6
High Brightness Flexible Transparent LED Mesh Screen Display P40 P50 P55mm 7
