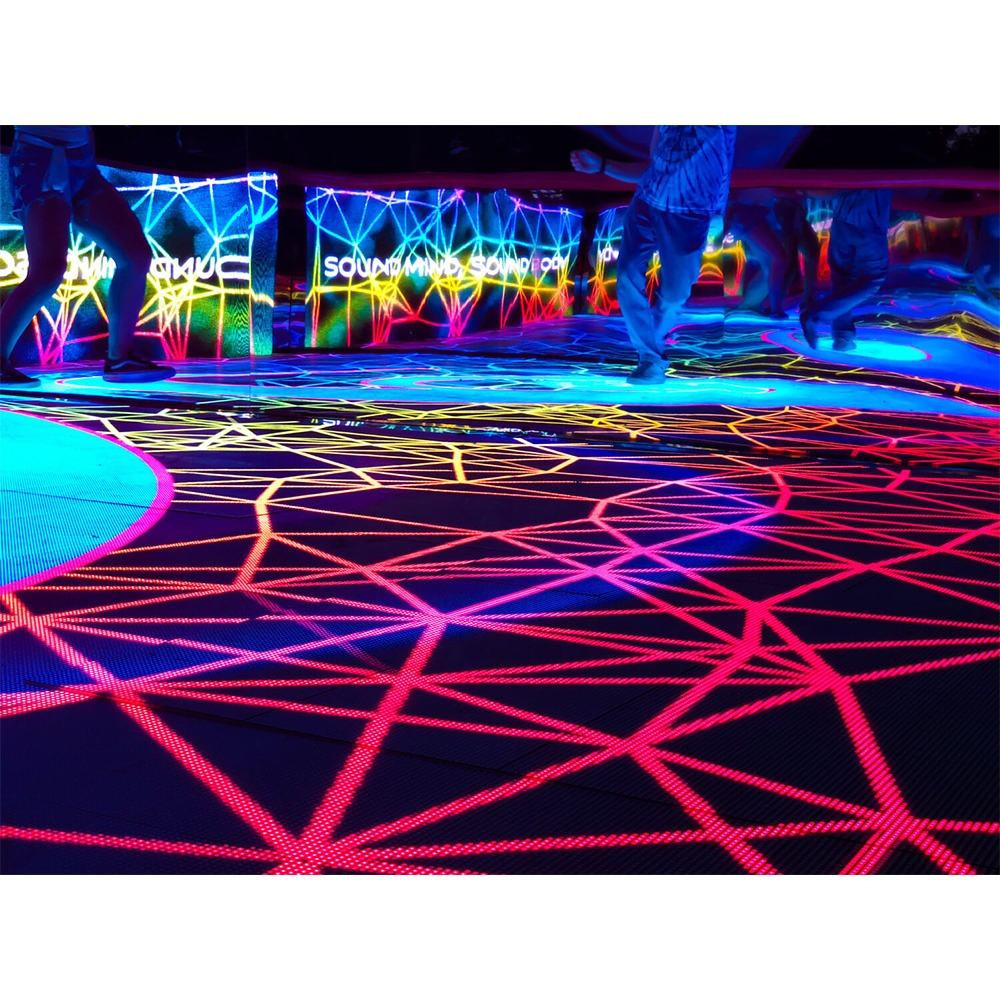

P4.8 Indoor Full Color Interactive Digital Dance Floor Led Display Floor Tile Led Stage Wedding Screen Touch Screen Type

P4.8 Indoor Full Color Interactive Digital Dance Floor Led Display Floor Tile Led Stage Wedding Screen Touch Screen Type
P4.8 Indoor Full Color Interactive Digital Dance Floor Led Display Floor Tile Led Stage Wedding Screen Touch Screen Type P4.8 Indoor Full Color Interactive Digital Dance Floor Led Display Floor Tile Led Stage Wedding Screen Touch Screen Type P4.8 Indoor Full Color Interactive Digital Dance Floor Led Display Floor Tile Led Stage Wedding Screen Touch Screen Type P4.8 Indoor Full Color Interactive Digital Dance Floor Led Display Floor Tile Led Stage Wedding Screen Touch Screen Type P4.8 Indoor Full Color Interactive Digital Dance Floor Led Display Floor Tile Led Stage Wedding Screen Touch Screen Type
Basic Information
Place of Origin: China
Brand Name: CONWIN
Certification: CE,ROHS
Model Number: F2.6
Minimum Order Quantity: 1sqm
Packaging Details: wooden box or carton
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000sqm/month
Contact Now
Touch Screen Type: Interactive Resolution: 128*256
Display Function: Videos, Images, Texts, Etc Refresh Rate: 3840Hz
Warranty: 2 Years Panel Weight: 23kg/Panel
Highlight:

Interactive Digital Dance Floor Led Display

,

Full Color Dance Floor Led Display

Product Description

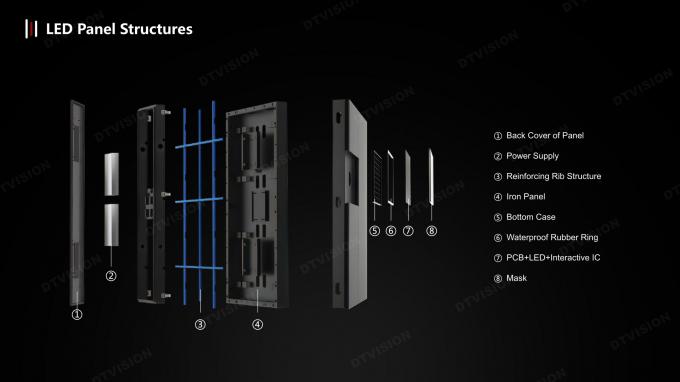

● Super bright LED lamp bead gold line package and A grade raw material plastic package.
● High-end LED screen special waterproof silica gel.
● PCB adopts exclusive line design.
● The signal line and power line adopt the standard design of the standard.
● LED lamp bead bracket pure copper bracket, red light 12MIL, blue green 13MIL. ● The PC cover is made of anti-slip and the bearing weight is above 2T.

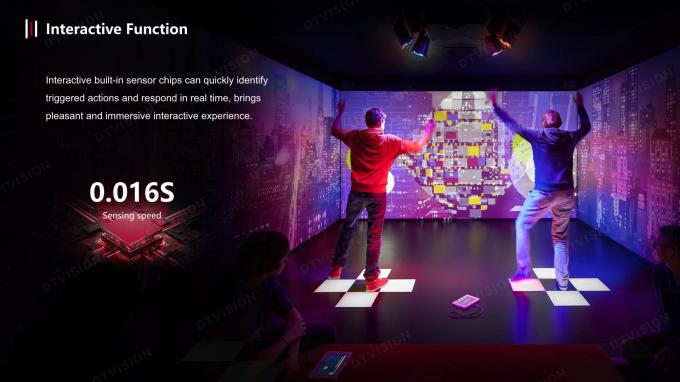

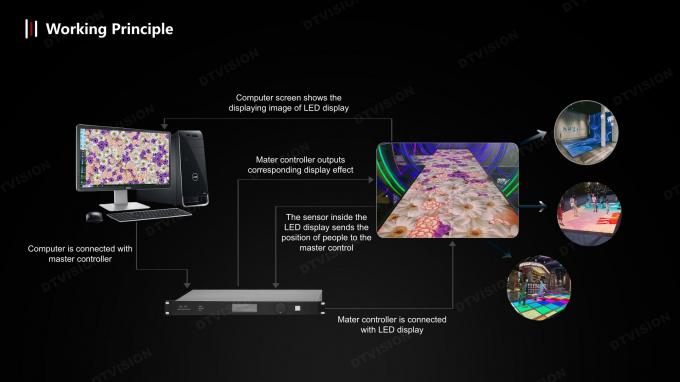

● Realization of human-computer interaction experience (abbreviation: interactive effect)
Product Features
P4.8 Indoor Full Color Interactive Digital Dance Floor Led Display Floor Tile Led Stage Wedding Screen Touch Screen Type 0
P4.8 Indoor Full Color Interactive Digital Dance Floor Led Display Floor Tile Led Stage Wedding Screen Touch Screen Type 1
P4.8 Indoor Full Color Interactive Digital Dance Floor Led Display Floor Tile Led Stage Wedding Screen Touch Screen Type 2
P4.8 Indoor Full Color Interactive Digital Dance Floor Led Display Floor Tile Led Stage Wedding Screen Touch Screen Type 3
P4.8 Indoor Full Color Interactive Digital Dance Floor Led Display Floor Tile Led Stage Wedding Screen Touch Screen Type 4
P4.8 Indoor Full Color Interactive Digital Dance Floor Led Display Floor Tile Led Stage Wedding Screen Touch Screen Type 5
P4.8 Indoor Full Color Interactive Digital Dance Floor Led Display Floor Tile Led Stage Wedding Screen Touch Screen Type 6
P4.8 Indoor Full Color Interactive Digital Dance Floor Led Display Floor Tile Led Stage Wedding Screen Touch Screen Type 7
P4.8 Indoor Full Color Interactive Digital Dance Floor Led Display Floor Tile Led Stage Wedding Screen Touch Screen Type 8
P4.8 Indoor Full Color Interactive Digital Dance Floor Led Display Floor Tile Led Stage Wedding Screen Touch Screen Type 9Pr



Product Specification
Product Model FI2.6 F2.9 F3.91 F4.81
Pixel Pitch 2.6mm 2.976mm 3.91mm 4.81mm
LEDs SMD1415 SMD1415 SMD1921 SMD1921
Pixel Density 147456dot/m2 112896dot/m2 65536dot/m2 43264dot/m2

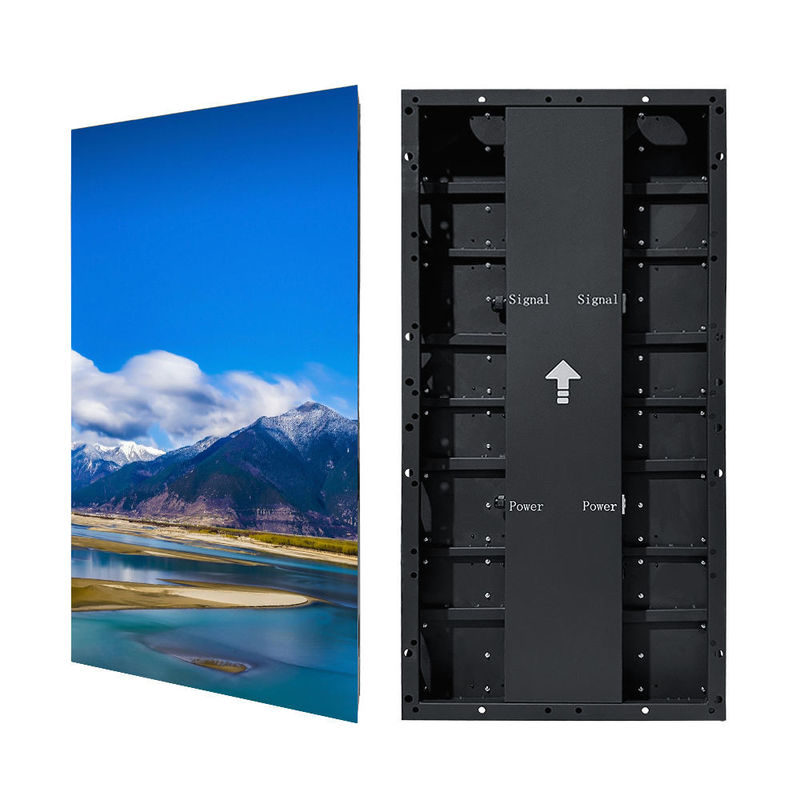

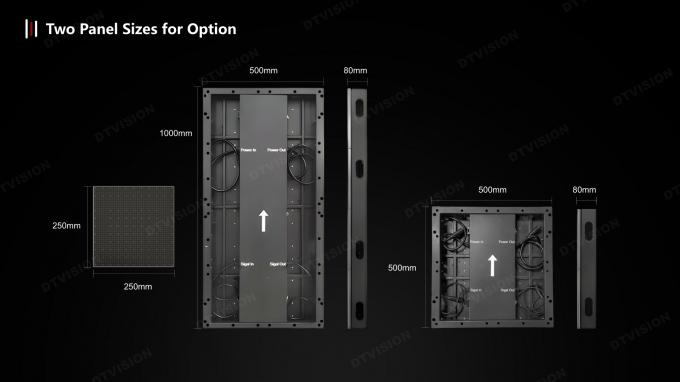

Panel Size 500*1000*80mm 500*1000*80mm 500*1000*80mm 500*1000*80mm
Panel Weight 23kg/Panel 23kg/Panel 23kg/Panel 23kg/Panel
Protection Grade (front/back) IP54/IP45 IP54/IP45 IP54/IP45 IP54/IP45
Contrast Ratio >3000:1 >3000:1 >3000:1 >3000:1
Brightness 900-1800CD/m² 900-1800CD/m² 900-1800CD/m² 900-3000CD/m²
Viewing Angle 160°/160° 160°/160° 160°/160° 160°/160°

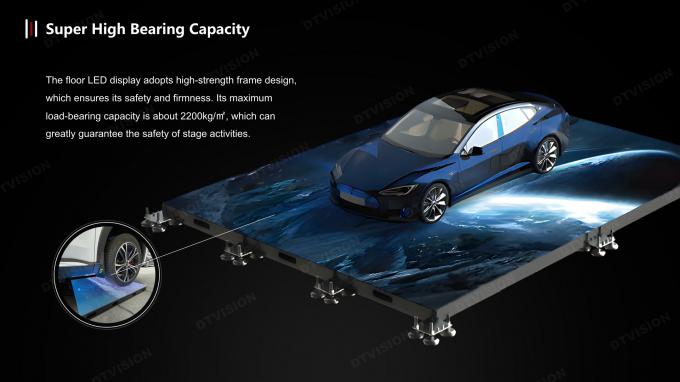

Load-bearing Capacity 2200kg/m2 2200kg/m2 2200kg/m2 2200kg/m2
Gray Scale 16bit 16bit 16bit 16bit
Color Type 16.7M 16.7M 16.7M 16.7M
Max. Power Consumption 200W/m² 400W/m² 400W/m² 400W/m²
Ave. Power Consumption 100W/m² 200 W/m² 200 W/m² 200 W/m²
Refresh Rate 3840HZ 3840HZ 3840HZ 3840HZ
Gamma Coefficient -5.0~+5.0 -5.0~+5.0 -5.0~+5.0 -5.0~+5.0
Brightness Adjustment 0 - 100 levels adjustable
Control Mode Synchronous display with control PC by DVI
Supported Signal Input Composite, S-Vido, Component, VGA, DVI, HDMI, HD_SDI
Input Voltage AC100~240 50/60HZ
Working Temperature -20℃~+50℃
Working Humidity 10~95% RH
Working Life 100,000hours
