| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | T-M Series |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box/Flight case |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 sqm per month |
| Type: | Outdoor Advertising Flexible LED Mesh | Pixel Pitch: | P31.25-P100mm |
|---|---|---|---|
| Cabinet Size: | 1000x1000mm | Service: | Front And Rear Service |
| Weight: | 4kg | LED Type: | Epistar LED |
| Highlight: | Flexible LED Mesh Curtain,LED Mesh Curtain Outdoor,High Brightness LED Mesh Curtain |
||
Outdoor Flexible LED Mesh Curtain High Brightness High Refresh Rate
Transparent LED Mesh Curtain P50mm IP66 9000Hz Refresh Rate
Application Of Outdoor IP66 Waterproof Flexible LED Mesh Curtain Screen

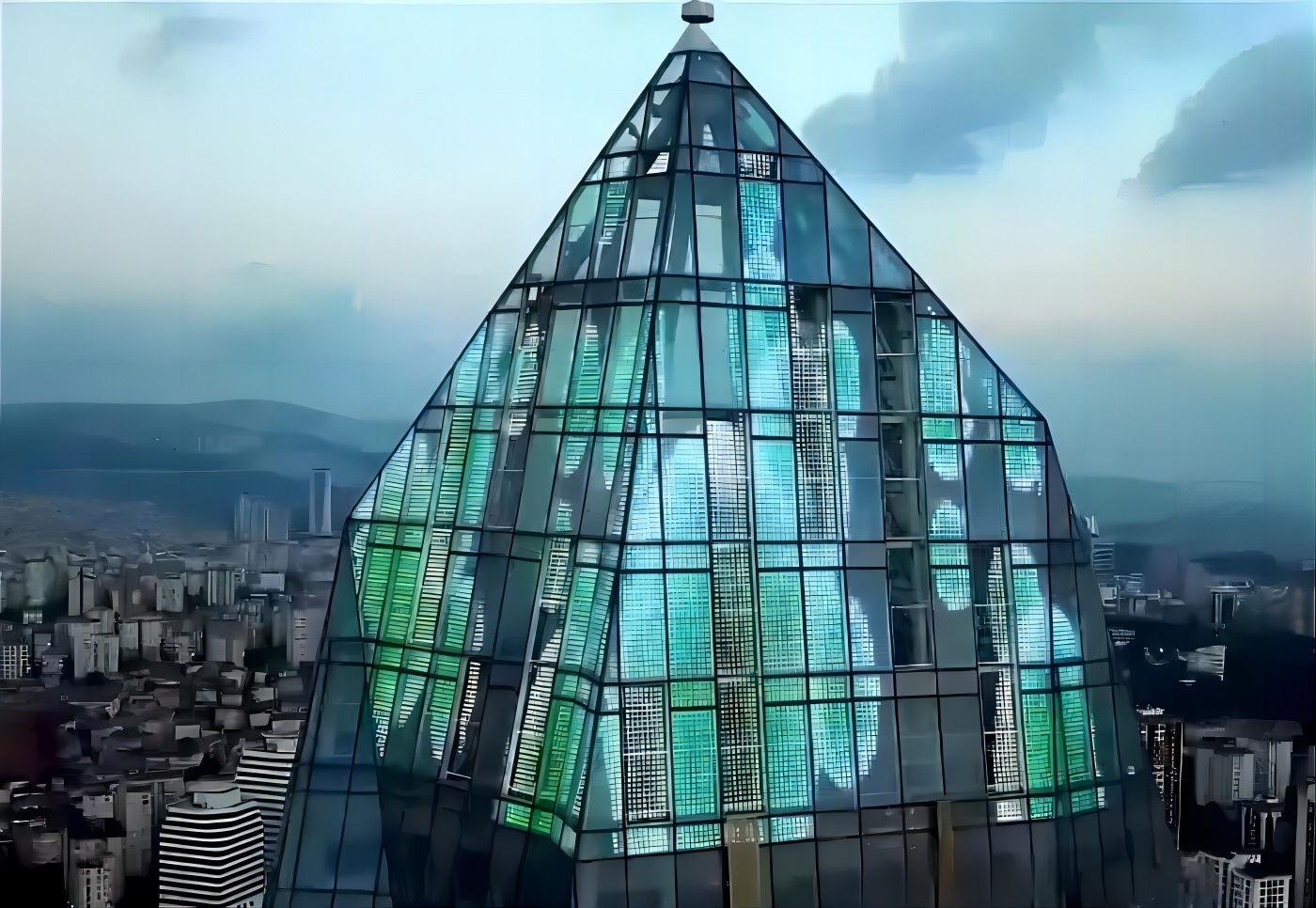

Nowadays, when many large commercial centers open, they will welcome thousands of passengers, bringing full fireworks to the whole city. In addition to the opening promotional activities, the soaring passenger flow in the business circle is also attributed to the full opening of the super-large outdoor led grid screen, which adds more vitality and shocking highlights to the business center. LED grid screen has a wide range of applications, such as glass curtain wall, park square, commercial center, theatre stage and so on. It has a very high permeability, which ensures the lighting effect between floors, glass facades, windows and so on. Large outdoor LED grid screen generally outlines the modern sense of atmospheric immersion with streamlined appearance, just like a magnificent and beautiful picture scroll of modern art, highlighting its own landmark image, with great visual impact and shock. The dazzling outdoor led grid screen creates a delicate and exquisite business atmosphere through light and shadow. For many buildings, LED grid screens are the first choice when it comes to creating a stunning light show. It can not only see the beautiful scenery outside the window, but also the video screen played by the large led screen is a beautiful scenery in the city, becoming a large eye-catching artifact. So what are the advantages of the LED grid screen of Liade Wisdom, which is unanimously recommended by users!
Quick detail Of Outdoor Advertising LED Mesh Screen Curtain
1, Pixel Pitch: P31.25mm,P50mm, P62.5mm, P100mm
2, Epistar SMD LED, high brightness and durable for outdoor use
3, Greyscale: 16bits
4, Cabinet size: 1000x1000mm Flexible LED Mesh
5, Refresh Rate: 9000Hz
6, Ingress Rate: IP66 Outdoor Standard Connectors
7,Quality Certificate:CE, RoHS,FCC, ETL
8,Brightness:>1200-2560cd/sqm
9, Curve Installation: Foldable and flexible for any kind of curve installation
Specification Of Outdoor Advertising LED Mesh Screen
| Model | P50mm | P62.5mm | P100 |
| LEDs | 1R1G1B | 1R1G1B | 1R1G1B |
| LED type | Epistar SMD | Epistar SMD | Epistar SMD |
| Pixel pitch | 50mm | 62.5mm | 100mm |
| Unit size | W1000×H1000mm | W1000×H1000mm | W1000×H1000mm |
| Unit resolution | 20×20dots | 16×16 dots | 10×10 dots |
| Resolution | 400dots/㎡ | 256dots/㎡ | 100dots/㎡ |
| Unit direction | Vertical Horizontal | Vertical Horizontal | Vertical Horizontal |
| Brightness | ≥1200nit | ≥2560nit | ≥2560nit |
| Weight | 4.6KG/㎡ | 3.2KG/㎡ | 1.5KG/㎡ |
| Max consumption | 480W/㎡ | 300W/㎡ | 280W/㎡ |
| Adv consumption | 160W/㎡ | 130W/㎡ | 125W/㎡ |
| Viewing angle | H120°/V120° | H120°/V120° | H120°/V120° |
| Protection level | IP66 | IP66 | IP66 |
| Wind dissipaion | Level 12 | Level 12 | Level 12 |
| Power supply | Power supply with PFC | Power supply with PFC | Power supply with PFC |
| Installation | Fast install | Fast install | Fast install |
| Fire safety | 10S/unit | 10S/unit | 10S/unit |
| Fire resistance | Full VO grade | Full VO grade | Full VO grade |
| Service | Front,Back | Front,Back | Front,Back |
| Control mode | steady state | steady state | steady state |
| Color temperature | 3200-9300K | 3200-9300K | 3200-9300K |
| Working temperature | -40℃ to 70℃ | -40℃ to 70℃ | -40℃ to 70℃ |
| Storage temperature | -55℃ to 120℃ | -55℃ to 120℃ | -55℃ to 120℃ |
| Life time | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours |
| Input voltage | AC110-220V | AC110-220V | AC110-220V |
| Grey grade | 16bit | 16bit | 16bit |

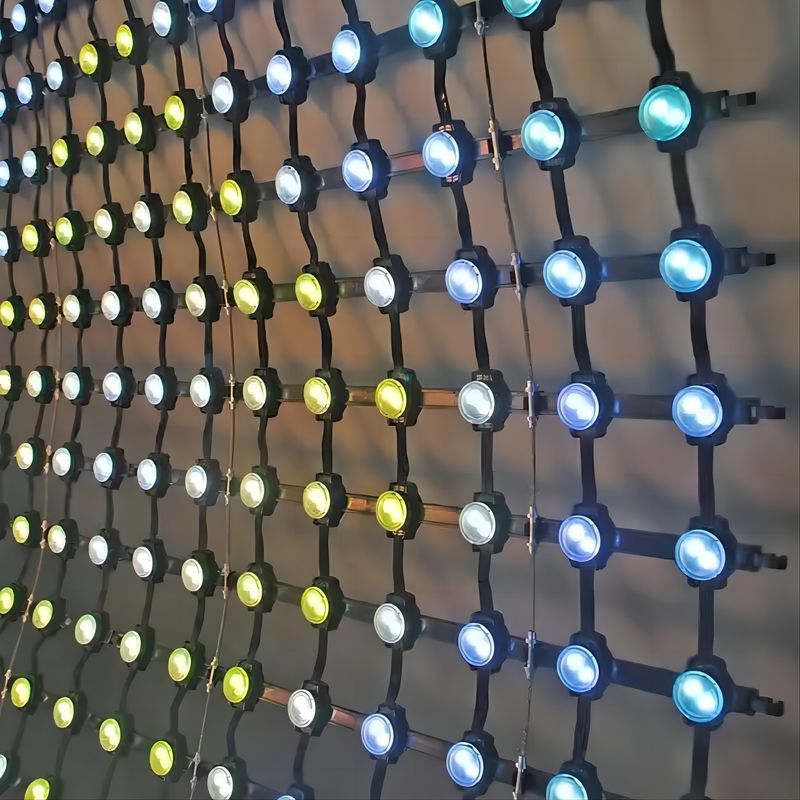

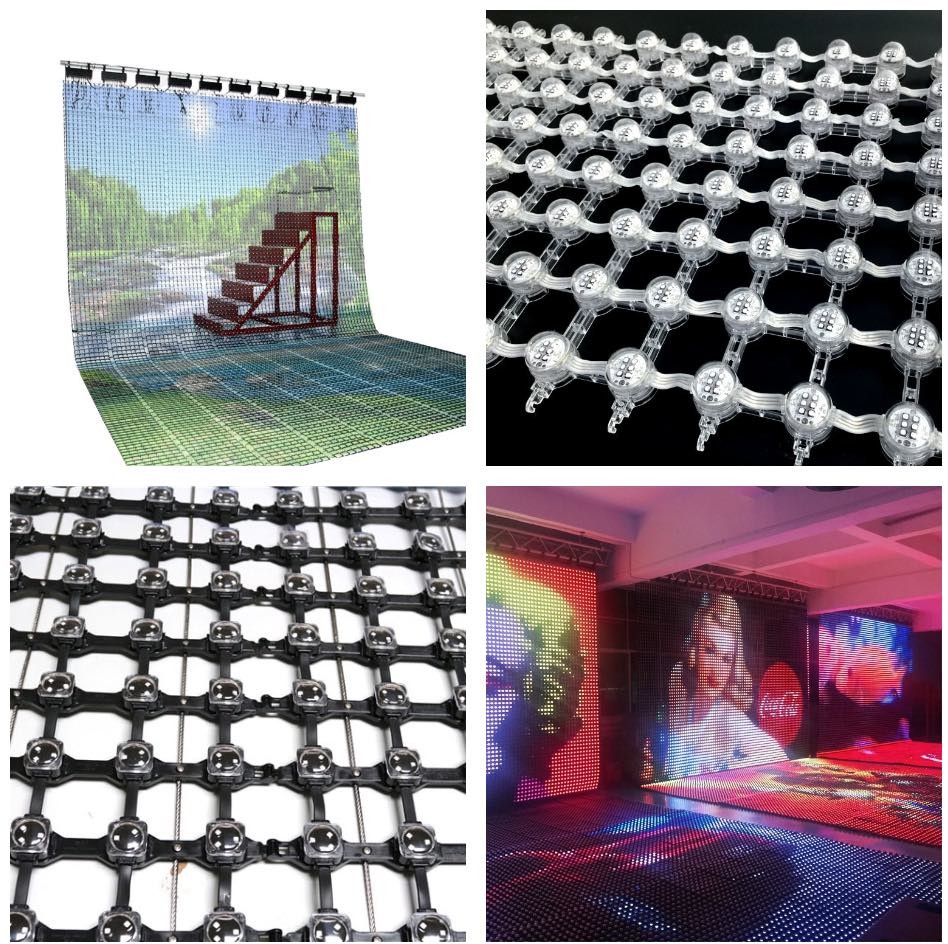

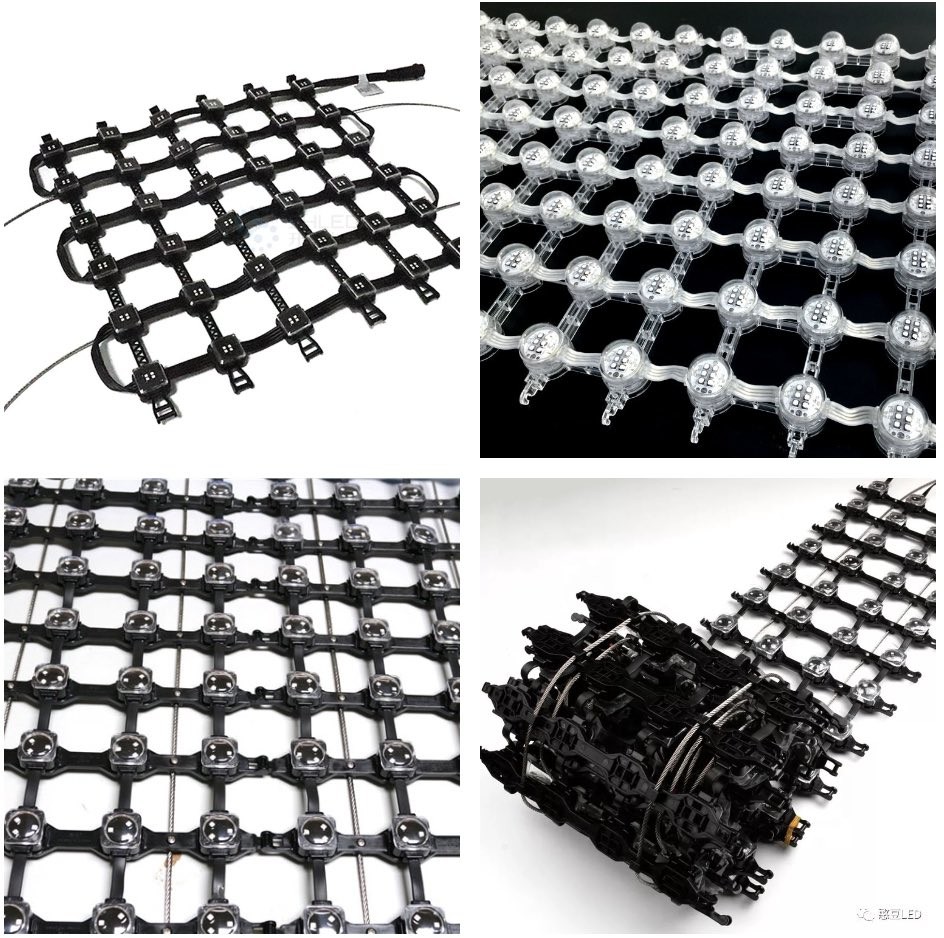

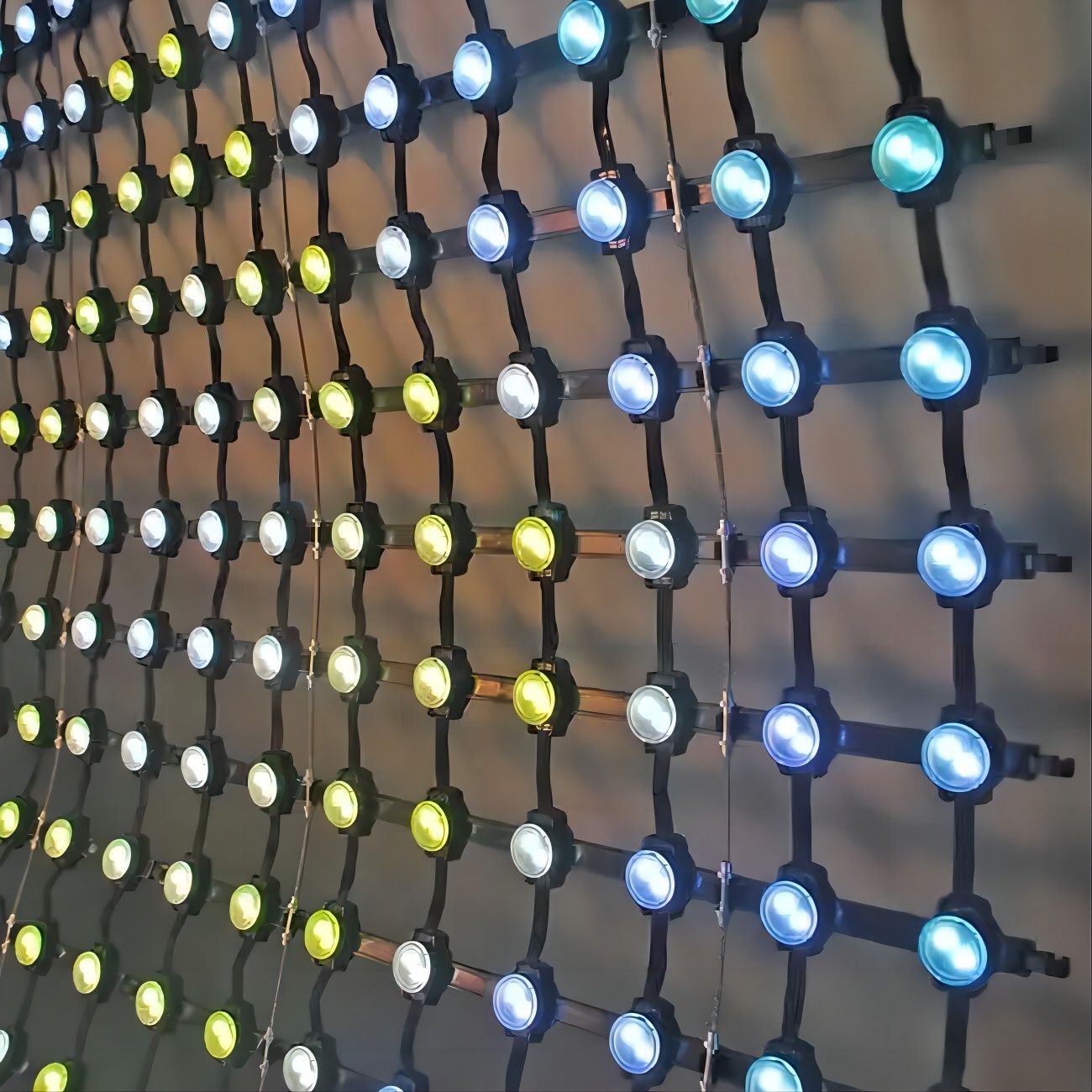

Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
