Indoor IP43 Rental Display Board LED Screen P2.6mm P2.9mm 500x500mm

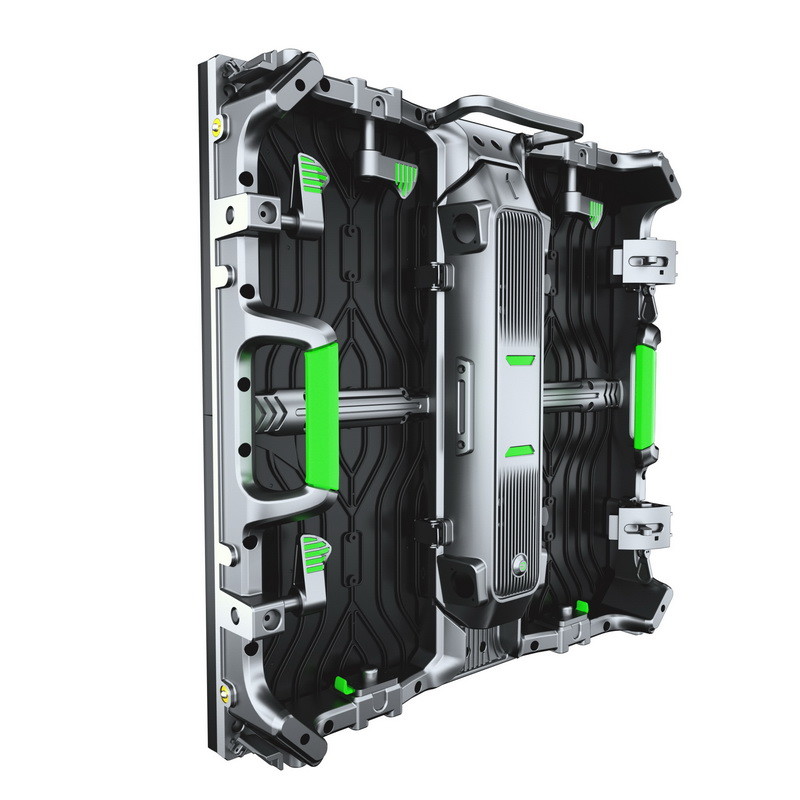

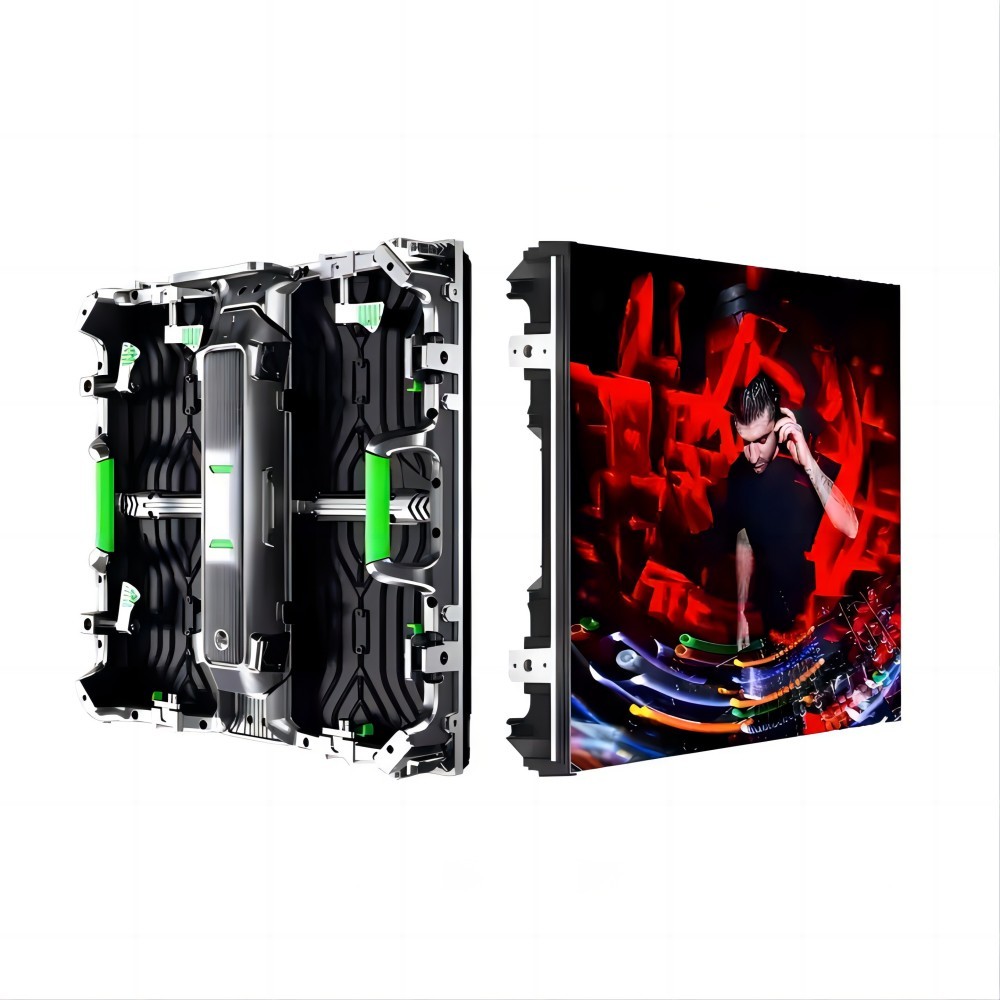

Stage Rental Led Screen Indoor 500x500mm Die Casting Aluminum Cabinet
Application:
Stage Rental Led Screen Indoor 500x500mm Die Casting Aluminum Cabinet are the most welcomed indoor rental led display, widely used for stage, events, live broadcasting etc.
Features and Advantages:
- Die Casting Aluminum 500x500 Cabinet, Classic Size
Unique design, quick and clean look, classic 500x500mm cabinet for flexible stage design
- Adjustable Angle Lock, Flexible Stage Design
Arc-shaped connection available, with angle adjustment device, concave and convex 10 degrees of adjustment as you wish for different stage.

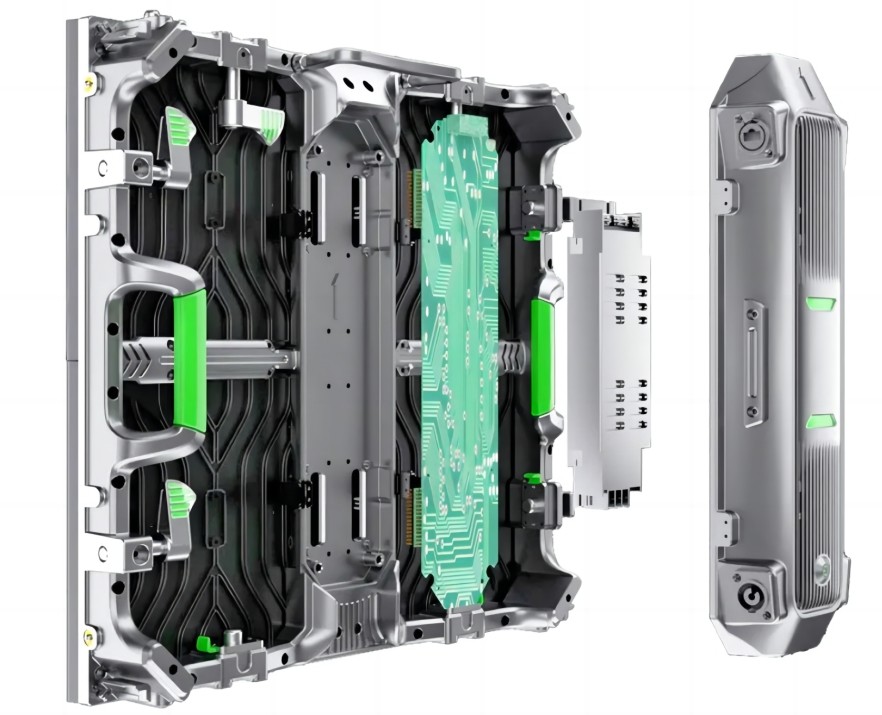

- Front Maintenance Magnetic Module
Snap-in quick disassembly design, maintenance and installation is more efficient and convenient.
- Light Weight Cabinet Design, One Man Operation
Weight only 7.5kg, easy to handle. Die cast aluminum cabinet, perfect splicing without gaps. Fast locking makes assembly and disassembly extremely easy. High-quality plugs ensure reliability.
- Absolute 4K HD Display Visual Effects
High contrast 3000:1 and HD 4K perfect picture quality, bring you absolute visual enjoyment. easily attract attention, greatly enhance the value of advertising.
- Seamless 90 Degree Angle Installation
Corner cabinet can be 45 degree edge, to create seamless 90 degree corner

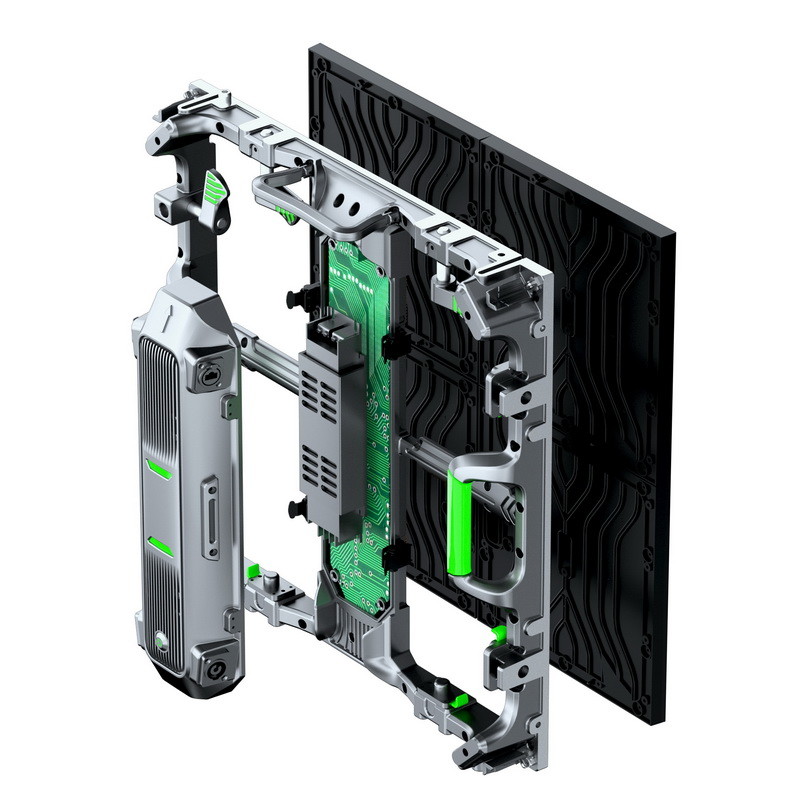

- Removable Power Box
Removable Power Box with pin connection design, better image quality and easy for maintenance
- Support Front Service
- Concave and Convex Installation
Flexible Installation method to meet different applicatioin scenarios. Curved with every 2.5° between -10°and 10°, which can make convex and concave.
- Mix using 500X500mm box with 500X1000mm box
Parameters:
| Model |
Di-XH2.6 |
Di-XH2.9 |
Di-XH3.9 |
Di-XH4.8 |
| Pixel Pitch |
2.604mm |
2.976mm |
3.91mm |
4.81mm |
| Pixel Configuration |
SMD1415 |
SMD1415 |
SMD1921 |
SMD1921 |
| Pixel Density |
147,456 pixels/m2 |
112,896 pixels/m2 |
65,536 pixels/m2 |
43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) |
250 x 250 |
250 x 250 |
250 x 250 |
250 x 250 |
| Panel Dimensions (mm) |
500 x 500 x 80 |
500 x 500 x 80 |
500 x 500 x 80 |
500 x 500 x 80 |
| Modules Per Cabinet (W x H) |
2 x 2 |
2 x 2 |
2 x 2 |
2 x 2 |
| Module Resolution |
96 x 96 |
84 x 84 |
64 x 64 |
52 x 52 |
| Cabinet Resolution |
192 x 192 |
168 x 168 |
128 x 128 |
104 x 104 |
| Panel Material |
Die Cast Aluminum |
Die Cast Aluminum |
Die Cast Aluminum |
Die Cast Aluminum |
| Weight per Cabinet |
7.5kg |
7.5kg |
7.5kg |
7.5kg |
| Colours |
281 trillion |
281 trillion |
281 trillion |
281 trillion |
| Contrast Ratio |
5,000 : 1 |
5,000 : 1 |
5,000 : 1 |
5,000 : 1 |
| Average Power Consumption |
200 W /Sqm |
200 W /Sqm |
200 W /Sqm |
200 W /Sqm |
| Max Power Consumption |
600 W /Sqm |
600 W /Sqm |
600 W /Sqm |
600 W /Sqm |
| Brightness |
>1,000 nits |
>1,000 nits |
>1,000 nits |
>1,000 nits |
| Refresh Rate |
>3,840Hz |
>3,840Hz |
>3,840 Hz |
>3,840 Hz |
| Vertical Viewing Angle |
160° |
160° |
160° |
160° |
| Horizontal Viewing Angle |
160° |
160° |
160° |
160° |
| Expected Lifetime |
100,000 Hrs |
100,000 Hrs |
100,000 Hrs |
100,000 Hrs |
| Servicing |
Front/Rear |
Front/Rear |
Front/Rear |
Front/Rear |
| IP Rating (Front/Rear) |
IP 43 |
IP 43 |
IP 43 |
IP 43 |
| Operating Temp/Humidity |
-20ºC - 50ºC / 10% - 90% |
-20ºC - 50ºC / 10% - 90% |
-20ºC - 50ºC / 10% - 90% |
-20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity |
-20ºC - 50ºC / 10% - 90% |
-20ºC - 50ºC / 10% - 90% |
-20ºC - 50ºC / 10% - 90% |
-20ºC - 50ºC / 10% - 90% |
