| Place of Origin: | China |
|---|---|
| Brand Name: | CONWIN |
| Certification: | CE.ROHS |
| Model Number: | C6 |
| Minimum Order Quantity: | 1sqm |
| Packaging Details: | wooden box |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000 Piece/ Month |
| Power Supply: | G-energy 5V60A 300W ,AC110~220V | Pixels: | P2 |
|---|---|---|---|
| Led Lamp: | SMD1515 | Contrast Ratio: | 8000:1 |
| Voltage: | AC 110-240V | Weight: | 35kg/㎡ |
| Maintenain: | Front Maintenance LED Module | Led Chip: | Epistar |
| Wartanty: | 3 Years | Refresh: | 3840Hz |
| Highlight: | Indoor P3 LED Display Screen,Indoor P2 LED Display Screen,Indoor P4 LED Display Screen |
||
|
Indoor Specification
|
||||
|
Product Model
|
P3
|
P4
|
P5
|
P6
|
|
LED standard
|
SMD1515
|
SMD2020
|
SMD2020
|
SMD2020
|
|
Pixel Pitch
|
2.9mm~3.2mm
|
3.91mm~4.1mm
|
4.9mm~5.1mm
|
5.9mm~6.1mm
|
|
Drive mode
|
1/22 scan
|
1/22 scan
|
1/22 scan
|
1/22 scan
|
|
Brightness
|
1000cd/m2
|
1000cd/m2
|
1000cd/m2
|
1000cd/m2
|
|
Box material
|
Iron
|
Iron
|
Iron
|
Iron
|
|
Max power consumption
|
1000W/m2
|
800W/m2
|
800W/m2
|
800W/m2
|
|
Average power consumption
|
320W/m2
|
240W/m2
|
240W/m2
|
240W/m2
|
|
Refresh rate
|
>1920HZ
|
|||
|
Protection Level
|
IP43
|
|||
|
Gray scale
|
12-16bit
|
|||
|
Outdoor Specification
|
|||
|
Product Model
|
P6
|
P8
|
P10
|
|
LED standard
|
SMD2727
|
SMD2727
|
SMD3535
|
|
Pixel Pitch
|
5.9mm~6.1mm
|
7.9mm~8.1mm
|
9.9mm~10.1mm
|
|
Drive mode
|
1/8 scan
|
1/8 scan
|
1/4 scan
|
|
Brightness
|
>5000cd/m2
|
>5000cd/m2
|
>5000cd/m2
|
|
Box material
|
Iron
|
Iron
|
Iron
|
|
Max power consumption
|
1000W/m2
|
1000W/m2
|
1000W/m2
|
|
Average power consumption
|
320W/m2
|
320W/m2
|
320W/m2
|
|
Refresh rate
|
>1920HZ
|
||
|
Protection Level
|
IP65
|
||
|
Gray scale
|
12-16bit
|
||

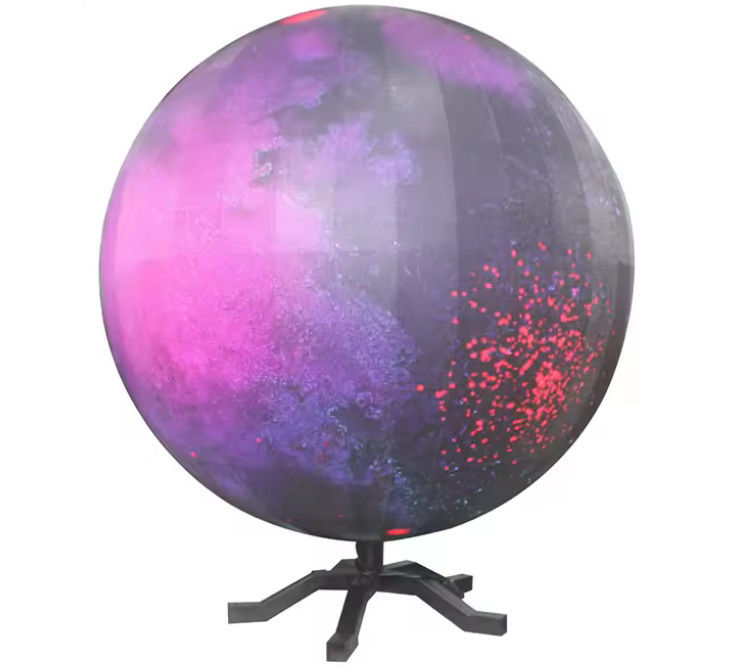

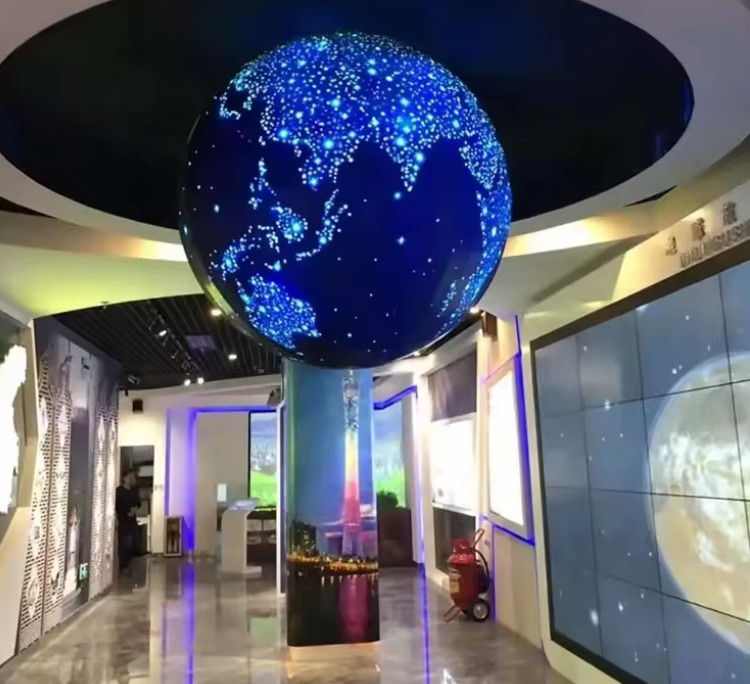

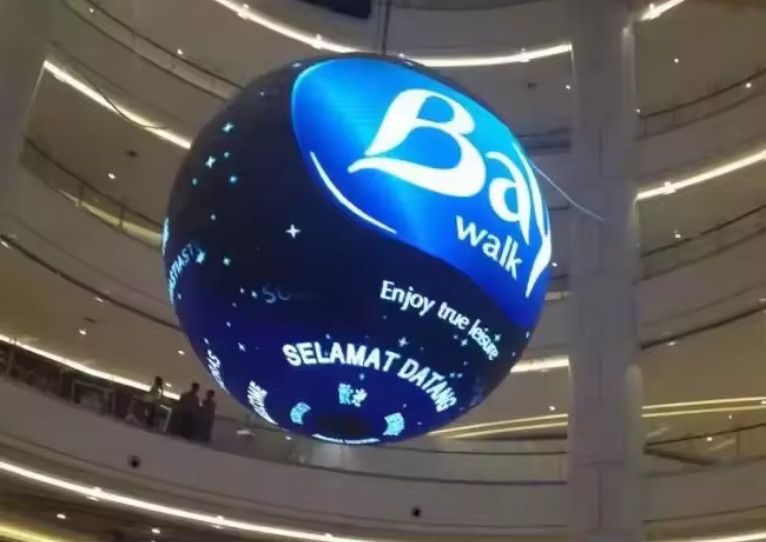

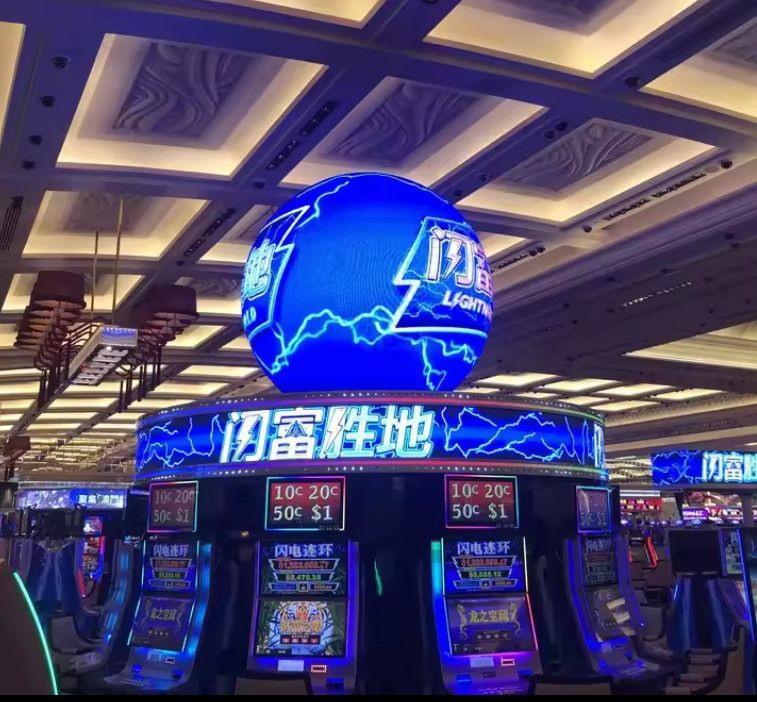

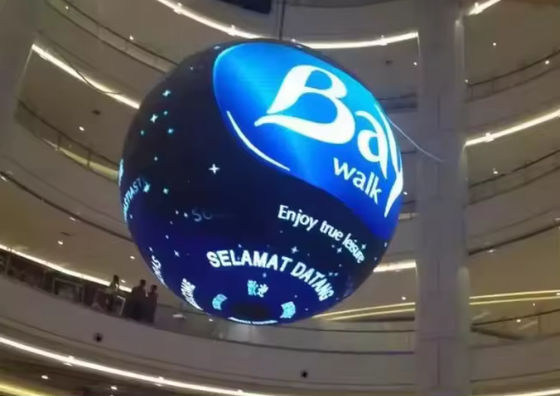

1.360 degree viewing angle,can play any video or images on the surface of the sphere
2.The diameter and pixel pitch can be customized according to clients' requirement.The sphere frame is made by precise CNC machine.And with precise module size to ensure seamless assembling
